Emerson 1410S Quick Start Manual

Wireless gateway
Hide thumbs

Advertisement

Quick Links

Quick Start Guide
00825-0600-4410, Rev AA
March 2020
Emerson Wireless 1410S Gateway

Advertisement

loading

  Also See for Emerson 1410S

  Related Manuals for Emerson 1410S

  Summary of Contents for Emerson 1410S

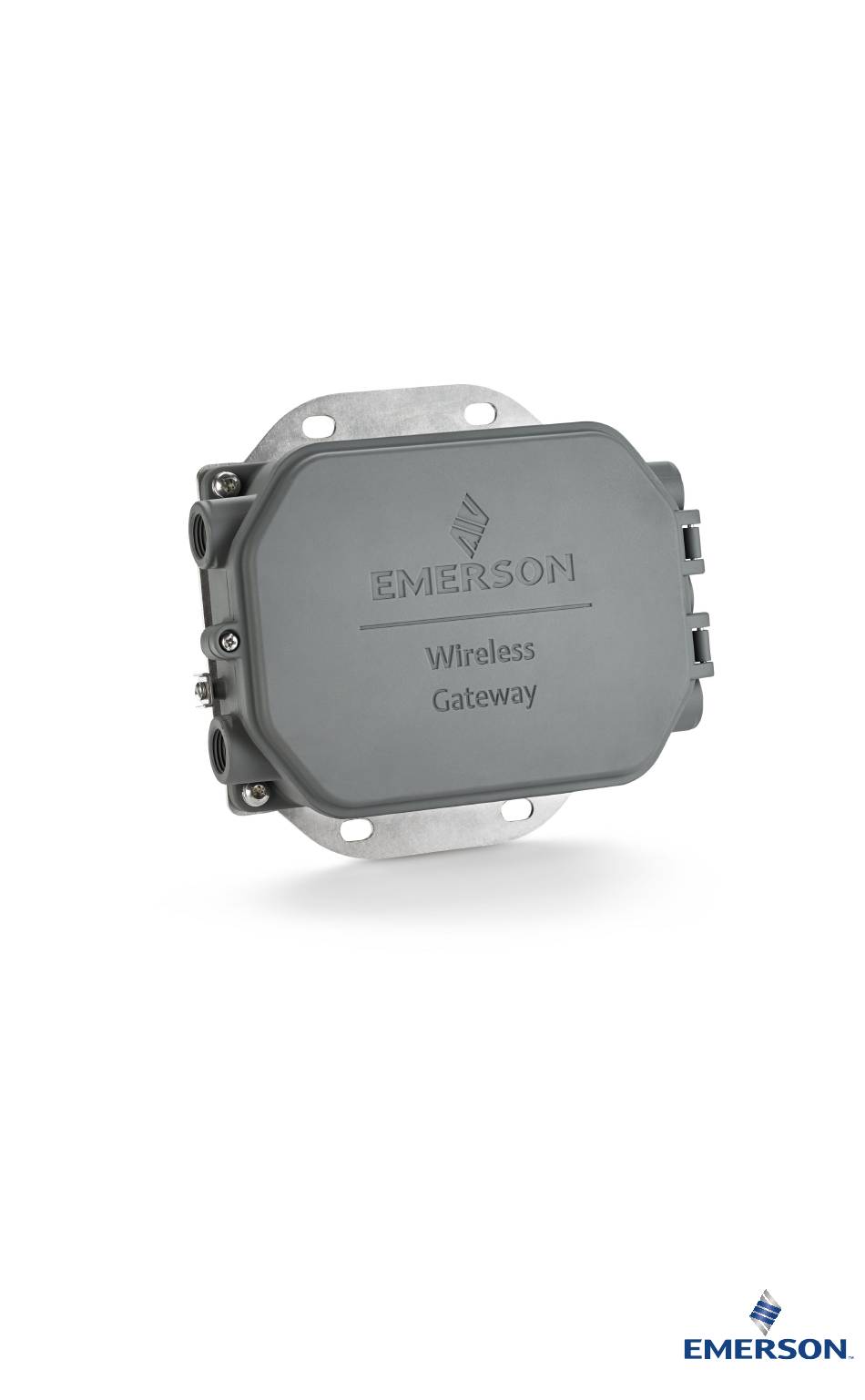

  • Page 1 Quick Start Guide 00825-0600-4410, Rev AA March 2020 Emerson Wireless 1410S Gateway...
  • Page 2: Table Of Contents

    Safety messages NOTICE This guide provides basic guidelines for the Emerson Wireless 1410S Gateway. It does not provide instructions for diagnostics, maintenance, service, or troubleshooting. Refer to the Emerson Wireless Gateway 1410S Reference Manual for more information and instructions. The manuals and this guide are available electronically on Emerson.com/Rosemount.
  • Page 3: Wireless Planning

    This will result in a simpler and faster network installation. Gateway redundancy If the wireless Gateway was ordered with redundancy (Gateway Redundancy code RD), refer to Appendix D in the Emerson Wireless Gateway Reference Manual for additional installation instructions. Quick Start Guide...
  • Page 4: Pc Requirements

    Configuration of the Gateway is done through a secure web interface. Recent versions of the following browsers are supported: ™ • Chrome browser ® • Mozilla Firefox • Microsoft Edge Hard disk space • AMS Wireless Configurator: 1.5 GB • Gateway Setup CD: 250 MB Emerson.com...
  • Page 5: Initial Connection And Configuration

    To configure the Gateway, a local connection between a computer and the Gateway needs to be established. Powering the Gateway For the Emerson 1410S, bench top power will be needed to power the Gateway by wiring a 10.5–30 VDC (24 VDC if configured with I.S. barriers) power source.
  • Page 6 Connect the PC/laptop to the Ethernet 1 (Primary) receptacle on the Gateway using an Ethernet cable. Windows 7 Procedure 1. Click the Internet Access icon on the bottom right of the screen. Figure 3-2: Internet Access 2. Select the Network and Sharing Center. 3. Select Local Area Connection. Emerson.com...
  • Page 7 March 2020 Quick Start Guide Figure 3-3: Local Area Connection 4. Select Properties. 5. Select Internet Protocol Version 4 (TCP/IPv4) then select Properties. Figure 3-4: Internet Protocol Version 4 (TCP/IPv4) Note If the PC/laptop is from another network, record the current IP address and other settings so the PC/laptop can be returned to the original network after the Gateway has been configured.
  • Page 8 Figure 3-5: IP Address 7. In the IP address field, enter 192.168.1.12 (DeltaV Ready enter 10.5.255.12). 8. In the Subnet mask field, enter 255.255.255.0. 9. Select OK for both the Internet Protocol (TCP/IP) Properties window and the Local Area Connection Properties window. Emerson.com...
  • Page 9 March 2020 Quick Start Guide Windows 10 Figure 3-6: Network Settings Procedure 1. Select the network icon in the lower right corner. 2. Select the Network settings link. 3. Select Change adapter options. Quick Start Guide...
  • Page 10 Quick Start Guide March 2020 Figure 3-7: Change Adapter Options 4. Right click the network interface connection that the Gateway is plugged into, and select Properties. 5. Select Internet Protocol Version 4 (TCP/IPv4) then select Properties. Emerson.com...
  • Page 11 March 2020 Quick Start Guide Figure 3-8: Internet Protocol Version 4 (TCP/IPv4) Note If the PC/laptop is from another network, record the current IP address and other settings so the PC/laptop can be returned to the original network after the Gateway has been configured. 6.
  • Page 12 9. Select OK for both the Internet Protocol (TCP/IP) Properties window and the Local Area Connection Properties window. Note Connecting to the Gateway's secondary Ethernet port will require different network settings. Table 3-1: Network Settings Gateway PC/laptop/ Subnet tablet Ethernet 1 192.168.1.10 192.168.1.12 255.255.255.0 Ethernet 2 192.168.2.10 192.168.2.12 255.255.255.0 Emerson.com...
  • Page 13 March 2020 Quick Start Guide Disable proxies This procedure may be necessary when using a Chrome browser with Windows operating systems. Procedure 1. Open web browser. 2. Navigate Settings >Advanced. 3. In the System section, click Open proxy settings. Example Configure the Gateway To complete initial configuration for the Gateway, follow the steps below.
  • Page 14 Figure 3-11: Ethernet Communication b) Restart application at System Settings > Gateway > Backup and Restore > Restart Apps. Note Resetting applications will temporarily disable communications with field devices. 3. Disconnect the power and Ethernet cable from the Gateway. Emerson.com...
  • Page 15: Physical Installation

    Gateway mounting bracket, and through the washer plate. 2. Use a 1/2-in. socket-head wrench to fasten the nuts to the u-bolt. 3. Repeat for the second u-bolt and the lower mounting holes. Figure 4-1: Emerson 1410S2 Mounting Quick Start Guide...
  • Page 16 1. Drill four 3/8-in. (9,525 mm) holes spaced 3.06-in. (77 mm) apart horizontally and 11.15-in. (283 mm) apart vertically in the support bracket, corresponding with the holes on the Gateway mounting bracket. 2. Using a 1/2-in. socket-head wrench, attach the Gateway to the support bracket with four 15/16-in. bolts. Emerson.com...

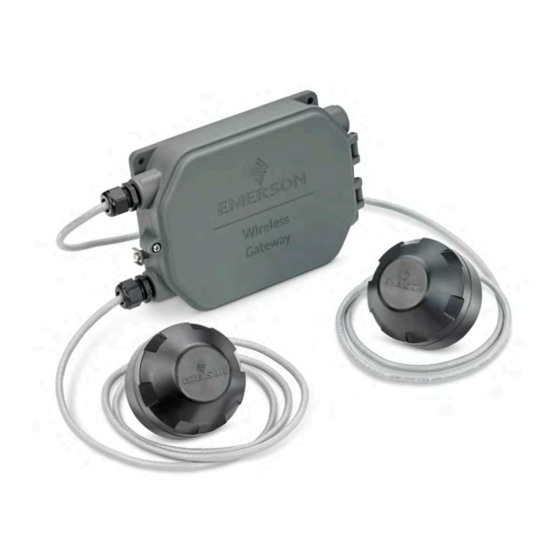

  • Page 17 March 2020 Quick Start Guide Connecting the Emerson 1410S with 781S Smart antennas Figure 4-2: Emerson 1410S and 781S Installation A. Emerson Wireless 1410S Gateway B. Terminal connections C. Shield pair cable D. Emerson Wireless 781S Smart Antenna E. Power output F.
  • Page 18 Quick Start Guide March 2020 Terminating resistors Please reference the Emerson 1410S Gateway and 781S Smart Antenna Reference Manual for configuration of the DIP switches. Three DIP switches are provided to enable termination and biasing resistors to the serial Modbus connection. The switches are found in the electronics housing located above the terminal connections.
  • Page 19: Software Installation (Optional)

    D:\SETUP.EXE (where D is the CD/DVD drive on the PC) and select OK. For more information about the Security Setup Utility and AMS Wireless Configurator, see the Emerson 1410S Gateway and 781S Smart Anetennas Reference Manual. Quick Start Guide...
  • Page 20: Verify Operations

    Gateway (found on the Network Setting page). Once the field devices are powered, they will appear on the wireless network and communications can be verified under the Explore tab using the web interface. The time needed for the network to form will depend on the number of devices. Emerson.com...
  • Page 21: Product Certifications

    All wireless devices require certification to ensure they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 22 1. The enclosure’s polyurethane paint finish may constitute an electrostatic hazard. Care should be taken to protect it from external conditions conducive to the build-up of electrostatic charge on such surfaces. The equipment must only be cleaned with a damp cloth. Emerson.com...
  • Page 23 March 2020 Quick Start Guide 2. The equipment is not capable of withstanding the 500V electrical strength test as defined in clause 6.1 of EN 60079-7:2015+ A1:2018 and 6.3.13 EN 60079-11:2012. This must be taken into account during installation. ND ATEX Dust-Ignition Proof with Intrinsically Safe Outputs to Zone 2 Certificate SGS20ATEX0036X Markings II 3D (3G) Ex tc [ic IIC Gc] IIIC T90°C Dc (-40°C ≤...
  • Page 24 IEC 60950 series, IEC 61010-1 or a technically equivalent standard. 3. The equipment is not capable of withstanding the 500V electrical strength test as defined in clause 6.1 of EN 60079-7:2015+ A1:2017. This must be taken into account during installation. Emerson.com...
  • Page 25 March 2020 Quick Start Guide NF IECEx Dust-Ignition Proof with Intrinsically Safe Outputs to Zone 0 Certificate IECEx BAS.20. 0022X Markings Ex tc [ia IIC Ga] IIIC T90°C Dc (-40°C ≤ Ta ≤ +65°C) Standards IEC 60079-0: 2017, IEC 60079-7:2015+A1:2017, IEC 60079-11: 2011, IEC 60079-15:2017, IEC 60079-31:2013 Special Conditions for Safe Use (X): 1.
  • Page 26 Quick Start Guide March 2020 Declaration of Conformity Emerson.com...
  • Page 27 March 2020 Quick Start Guide Quick Start Guide...
  • Page 28 Quick Start Guide March 2020 Emerson.com...
  • Page 29: Reference Data

    March 2020 Quick Start Guide Reference data For information on product specs, dimensional drawings, ordering information or the complete reference manual, see Emerson.com. Figure 8-1: Hazardous Location Installation Quick Start Guide...
  • Page 30 Quick Start Guide March 2020 Emerson.com...
  • Page 31 March 2020 Quick Start Guide Quick Start Guide...
  • Page 32 The Emerson logo is a Twitter.com/Rosemount_News trademark and service mark of Emerson Electric Facebook.com/Rosemount Co. Rosemount is a mark of one of the Emerson Youtube.com/user/ family of companies. All other marks are the RosemountMeasurement property of their respective owners.
