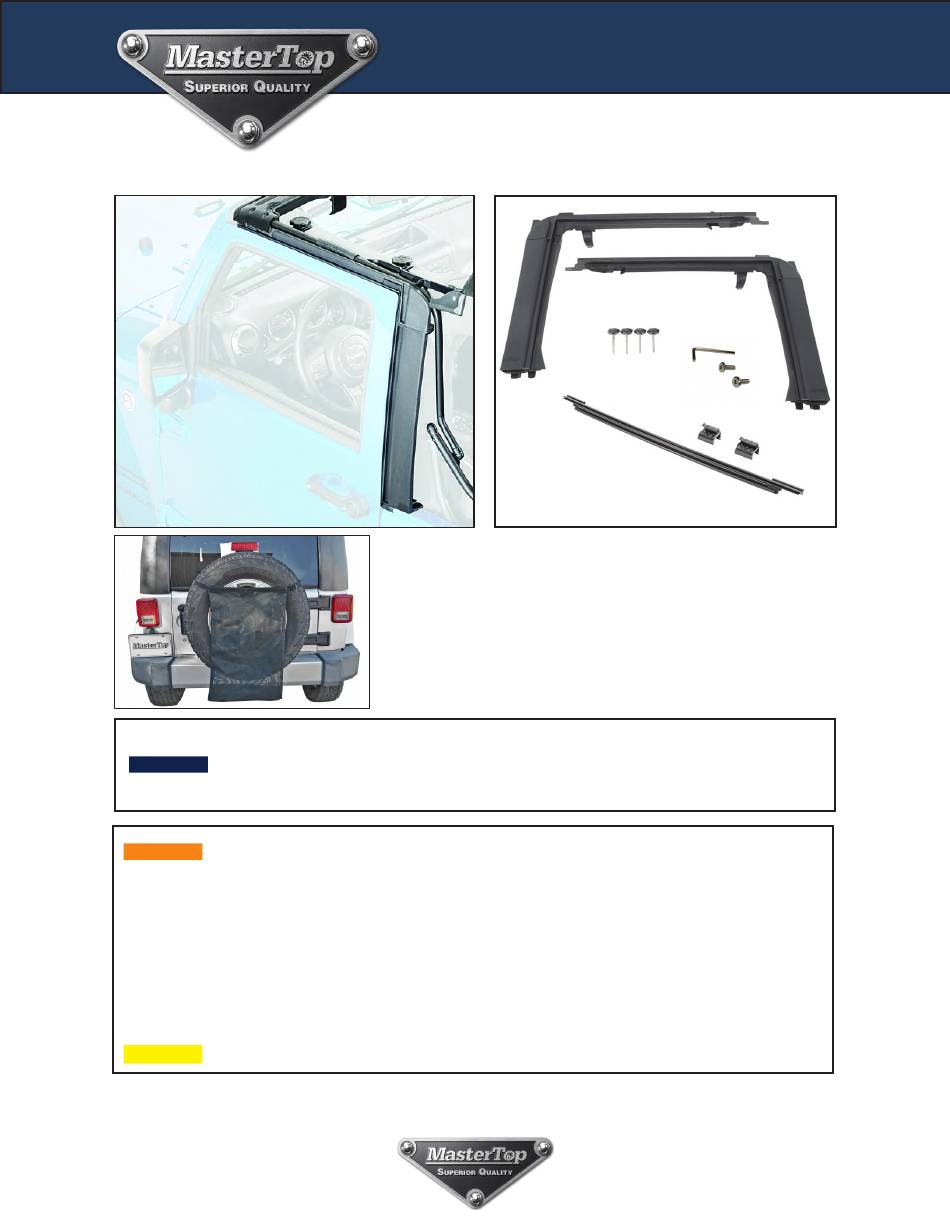

Assembled Door Surrounds in
Place on Vehicle (2 Door)
This Door Surround and Tailgate Bar kit is designed to fit on your 2 Door JK Wrangler when the hard
top or original soft top has been completely removed. Before beginning your installation of this prod-
NOTICE
uct, carefully remove your hard top or current soft top hardware This hardware system is designed
to be used with MasterTop Cable style Bimini Tops, Tonneau cover and Wind Stopper Plus roll bar
curtain.It can also be used with other brands Bimini tops and other accessories.
Loss of vehicle control involves risk of death or serious injury, particularly to parts of your body not
WARNING
restrained within vehicle. This product is intended for weather protection only and should not be relied
upon to contain occupants in the event of an accident or to protect from either ground contact or fall-
ing objects. To reduce risk of accident or injury:
•
ALWAYS WEAR SEATBELTS
•
Always keep head, arms & body parts within vehicle.
•
Fully secure or stow the soft top before driving according to instructions. Never try to latch or fold
soft top while driving. Do not use if damaged or worn.
•
Read and follow all instructions & warnings accompanying this product, in your vehicle owner's
manual and Off Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while installing or maintaining this
CAUTION
product.
Installation Instructions
Door Surrounds and Tailgate Bar for
2007-2018 Jeep

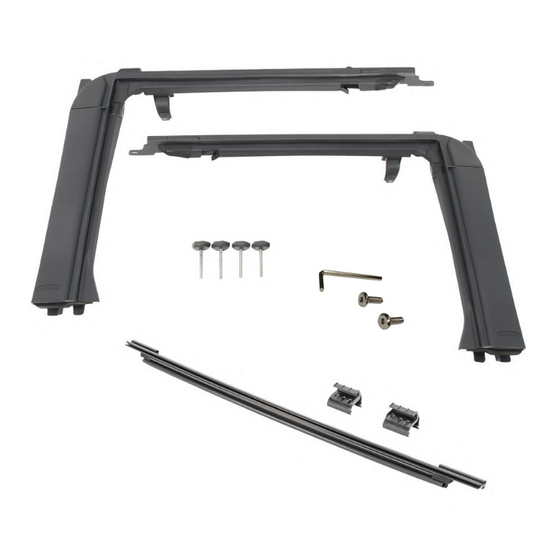

Part List:
A) Driver Side Door Surround
B) Passenger Side Door Surround
C) Door Surround Knobs
D) Tailgate Bar with Clips
F) Allen Head Screws
G) 4mm Allen Head Wrench
H) Trash Bag
®
Wrangler JK 2 Door
#
Item
15420301
B)
A)
C)
G)
F)
D)
Required Tools:
QTY 1
Safety Glasses
QTY 1
QTY 4
QTY 1
QTY 2
QTY 1
QTY 1
Advertisement
Table of Contents
Related Manuals for MasterTop 15420301
Summary of Contents for MasterTop 15420301
- Page 1 This hardware system is designed to be used with MasterTop Cable style Bimini Tops, Tonneau cover and Wind Stopper Plus roll bar curtain.It can also be used with other brands Bimini tops and other accessories.
- Page 2 Before you begin Installation: We are excited that you have chosen the MasterTop Door Surrounds and Tailgate Bar This high quality door surround system is designed to provide a platform for the installation of a fabric soft top Bow system or soft accessories. Please note that it is important that you become familiar with the installation process of this top by reading the following instruction sheet and warnings thoroughly.
- Page 3 Section 1: Door Surround Assembly FIG 3 FIG 4 FIG 5 Driver Side Over Door Assembly Driver Side Pillar Assembly Passenger Side Over Door Assembly FIG 6 FIG 7 Knobs Passenger Side Pillar Assembly FIG 9 FIG 8 Step 1: Pillar and Over Door Surround Assembly Locate the Driver’s side over door assembly and the driver’s side pillar assembly shown in FIG3.
- Page 4 Section 1: Door Surround Assembly Step 2: Install Door Surrounds to Jeep FIG 11 FIG 10 Locate the assembled Driver’s side door surround (Fig10). On the bottom of the vertical pillar portion of the assembled door surround is a pin (FIG 11) that will be inserted into the body tub.
- Page 5 Section 2: Installation of Tailgate Bar Brackets and Tailgate Bar Step 4: Attaching the Tailgate Brackets and Tailgate Bar FIG 19 Locate the Tailgate bar and brackets (FIG 19). Locate the driver’s side bracket (marked on the bracket) with the lip to the outside of the vehicle(FIG 20) line up the bracket with the slot in the body tub(FIG 21 &...
- Page 6 The NEW Freedom Mesh tops are designed to work with hardtop model Wranglers, allowing you to keep your mesh top on while using your hardtop. The easy on and off MasterTop ShadeMaker Mesh Bimini provides generous coverage over the front seats while the ShadeMaker Mesh Bimini “Plus”...
- Page 7 Top branded accessories first sold in the United States, MasterTop warrants to the initial retail purchaser only that your MasterTop accessory shall be free of defects in material and workmanship; for a period of 3 years from date of initial retail sale.
