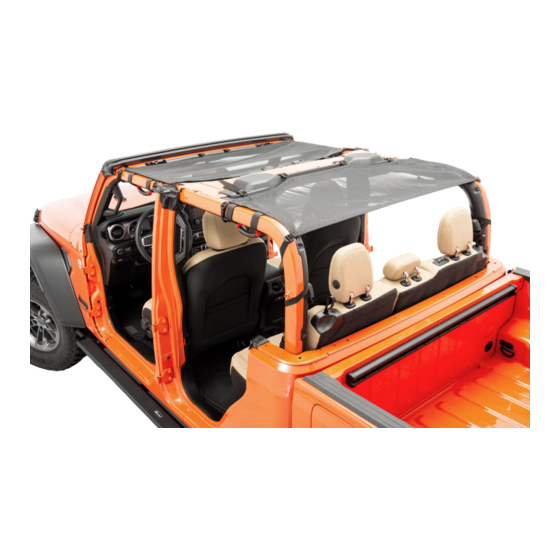

Mesh Bimini Plus Tops with Integrated Grab Handles
Bimini Top Plus Part List:
Mesh Front Section- QTY 1
Mesh Rear Section - QTY 1
T25 Torx Tool - QTY 1
Loss of vehicle control involves risk of death or serious injury, particularly to parts of your body not
restrained within vehicle. This product is intended for weather protection only and should not be relied
upon to contain occupants in the event of an accident or to protect from either ground contact or fall-
ing objects. To reduce risk of accident or injury:
•
ALWAYS WEAR SEATBELTS
•
Always keep head, arms & body parts within vehicle.
•
Fully secure or stow the soft top before driving according to instructions. Never try to latch or fold
soft top while driving. Do not use if damaged or worn.
•
Read and follow all instructions & warnings accompanying this product, in your vehicle owner's
manual and Off Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while installing or maintaining this
product.
Installation Instructions
for 2020- Current JT Jeep
Required Tools:
Safety Glasses
Gladiator 4Dr Vehicles
®
Item
142037XX
#
Advertisement
Table of Contents
Related Manuals for MasterTop 142037 Series
Summary of Contents for MasterTop 142037 Series
- Page 1 Installation Instructions Mesh Bimini Plus Tops with Integrated Grab Handles for 2020- Current JT Jeep Gladiator 4Dr Vehicles ® Item 142037XX Bimini Top Plus Part List: Required Tools: Mesh Front Section- QTY 1 Safety Glasses Mesh Rear Section - QTY 1 T25 Torx Tool - QTY 1 Loss of vehicle control involves risk of death or serious injury, particularly to parts of your body not restrained within vehicle.
- Page 2 The Mesh Bimini Top and Bimini Top Plus with integrated Grab Handles concept: The MasterTop Mesh Bimini Top Plus with integrated Grab Handles are designed not only to protect you from the summer sun but also have built-in grab handles making the entry and exit of your vehicle easy. Is constructed of tear-proof sun-blocking mesh with either red or black webbed grab handles.
- Page 3 Installation of Mesh Bimini Top and Bimini Top Plus with integrated Grab Handles Step 1: Attach The Mesh Front Section to the Front FIG 1 FIG 2 Windshield Pillar Put on safety glasses. After removing your hard top or soft top, locate the front section of your Bimini top Plus and drape the Front mesh fabric over the top of your Jeep with the flat straight edge facing forward.
- Page 4 Installation of Mesh Bimini Top and Bimini Top Plus with integrated Grab Handles Step 3: Attaching the Rear Mesh to "B"-Pillar FIG 12 FIG 13 FIG 14 On the Rear Mesh, locate the two center buckle straps with the hook straps (FIG12).Thread the hook straps into the hooks and hook the straps into the oblong holes located directly in front of the buckles.
- Page 5 Installation & Use of Mesh with your Hardtop Freedom Panels: Route the side straps, shown in the square in FIG 19, FIG 19 toward the rear door between the hard top and sport bar. It then wraps inside the pillar to tighten the mesh. FIG 20 FIG 21 FIG 22...
- Page 6 Bimini Top Plus with Integrated Grab Handles: Your MasterTop Bimini Top Plus with Integrated Grab Handles is made of the finest materials available but to keep it looking new and for the maximum possible wear, it will need periodic cleaning and basic maintenance. The main threat to your soft top is pollutants, dirt and grime.
- Page 7 5 Perfect companion for your Bimini Top Plus with integrated Grab Handles 5 Protects from water, dust, dirt and those harmful UV Rays 5 Long side panels fully protetc door opening as well Contact your MasterTop distributor TODAY for this great new cover!
- Page 8 Top branded accessories first sold in the United States, MasterTop warrants to the initial retail purchaser only that your MasterTop accessory shall be free of defects in material and workmanship; for a period of 3 years from date of initial retail sale.
