Bimini Top Plus Parts List:
Mesh Front Section - QTY 1
Mesh Rear Section - QTY 1
Loss of vehicle control involves risk of death or serious injury, particularly to parts
of your body not restrained within vehicle. This product is intended for weather
WARNING
protection only and should not be relied upon to contain occupants in the event of
an accident or to protect from either ground contact or falling objects. To reduce
risk of accident or injury:
• ALWAYS WEAR SEATBELTS
• Always keep head, arms & body parts within vehicle.
• Fully secure or stow the Freedom Top storage bag before driving accor
ding to instructions. Never try to latch or fold soft top while driving. Do
not use if damaged or worn.
• Read and follow all instructions & warnings accompanying this product,
in your vehicle owner's manual and Off Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while installing or
CAUTION
maintaining this product.

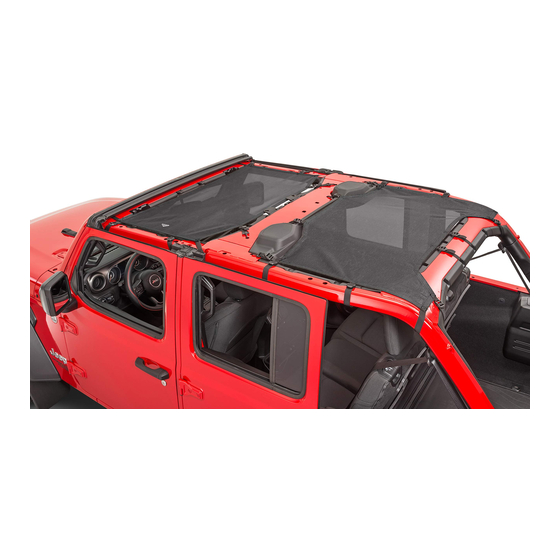

ShadeMaker™ Mesh Bimini Plus Tops for
2020- Current Jeep® Gladiator JT Vehicles
Required Tools:
Safety Glasses
T25 Torx Bit & Driver
Item
142017XX
#
Advertisement
Table of Contents
Related Manuals for MasterTop ShadeMaker 142017 Series
Summary of Contents for MasterTop ShadeMaker 142017 Series

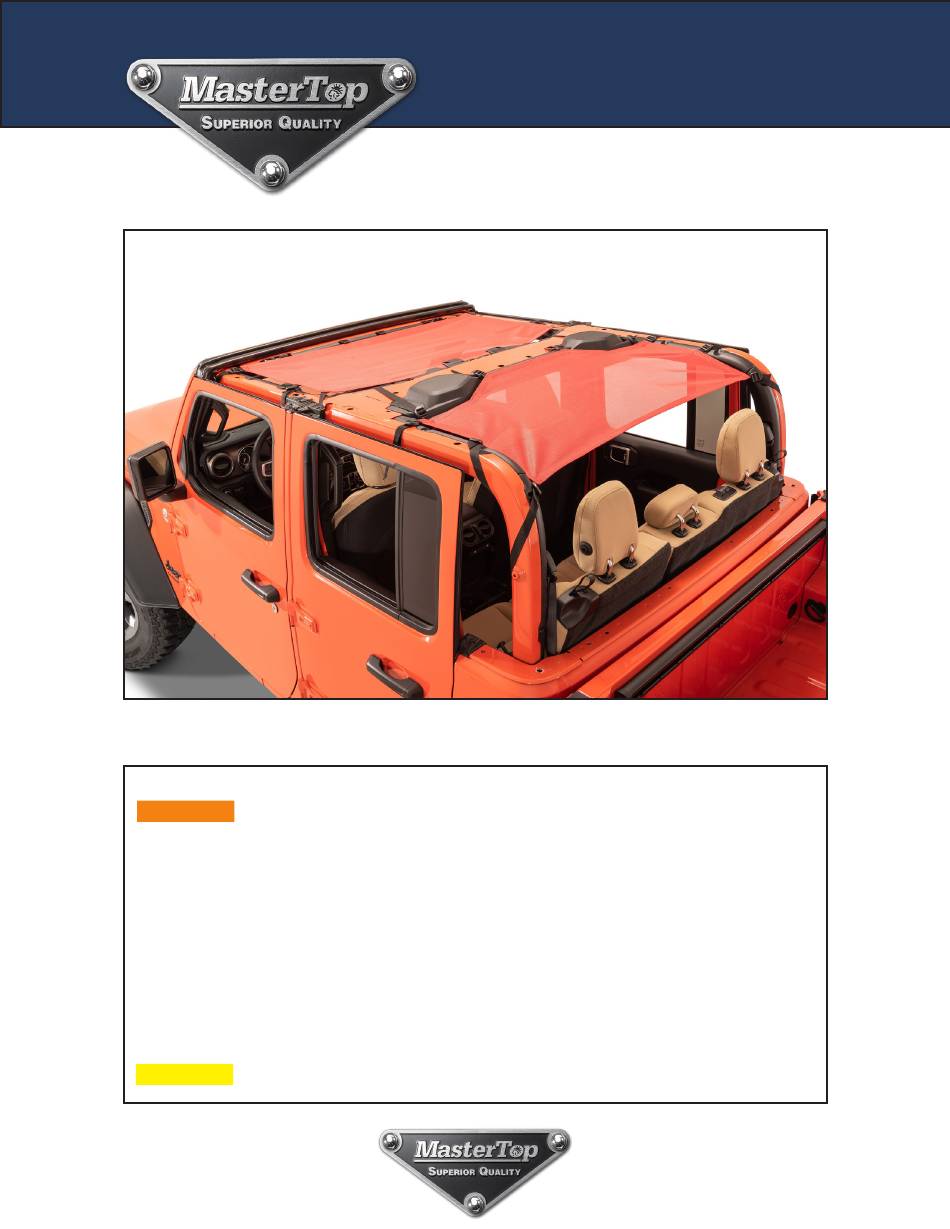

- Page 1 Installation Instructions ShadeMaker™ Mesh Bimini Plus Tops for 2020- Current Jeep® Gladiator JT Vehicles Item 142017XX Bimini Top Plus Parts List: Required Tools: Mesh Front Section - QTY 1 Safety Glasses Mesh Rear Section - QTY 1 T25 Torx Bit & Driver Loss of vehicle control involves risk of death or serious injury, particularly to parts of your body not restrained within vehicle.
- Page 2 Important Safety information Your MasterTop® ShadeMaker™ Bimini Top Plus is intended to increase the fair weather enjoyment of your off-road capable vehicle. Before installation, please take a moment to review the following safety information and installation instructions. Important safety information is generally preceded by one of three signal words indicating the relative risk of injury.
- Page 3 Installation Instructions Installation of ShadeMaker Bimini Plus Top: Step 1: Attach the Mesh Front Section to the Front Windshield Pillar Put on safety glasses. After removing your hard top or soft top, locate the front section of your Bimini top Plus and drape the Front mesh fabric over the top of your Jeep with the flat straight edge facing forward.
- Page 4 Installation of ShadeMaker Bimini Plus Top: Step 3: Attaching the Rear Mesh to B-Pillar On the Rear Mesh, locate the two center buckle straps with the hook straps. FIG11.Thread the hook straps into the hooks and hook the straps into the oblong holes located directly in front of the buckles. The Hooks will seem too big for these holes but they will go in if you twist them slightly back and forth.
- Page 5 NOTE: In the main pictures of this product you will see the rear strap running down the roll bar as shown in FIG 19. This was an old design that has been improved to prevent “flapping”. The correct attachment is shown in FIG’s 16 and 17 above.
- Page 6 ShadeMaker™ Bimini Plus Top: Your MasterTop ShadeMaker Bimini Top or Bimini Top Plus is made of the finest materials available but to keep it looking new and for the maximum possible wear, it will need periodic cleaning and basic maintenance.
- Page 7 Perfect companion for your Shademaker Mesh Bimini Top or Bimini Top Plus Protects from water, dust, dirt and those harmful UV Rays Waterproof fabric with seams specifically designed to prevent pooling Long side panels fully protect door opening as well Contact your MasterTop distributor TODAY for this great new cover!
- Page 8 United States, MasterTop warrants to the initial retail purchaser only that your MasterTop accessory shall be free of defects in material and workmanship; for a period of 3 years from date of initial retail sale.
