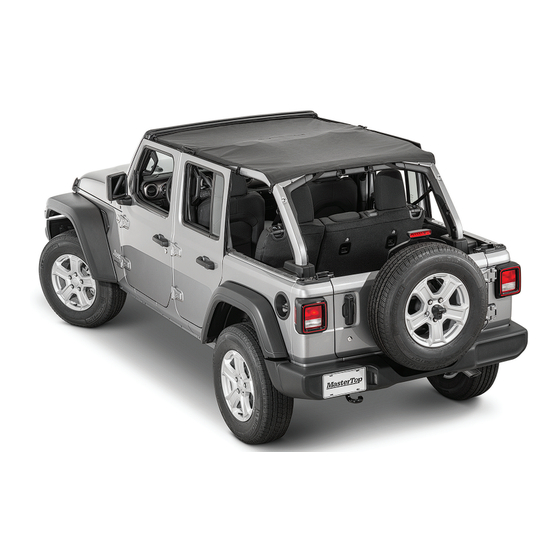

Fabric Bimini Top Plus - QTY 1
Parts List:
Front Buckle Straps - QTY 2
Foam Pack - QTY 1
D-Ring Tabs - QTY 3
Installation Instructions
Installation Instructions
Loss of vehicle control involves risk of death or serious injury, particularly to parts of your body not
restrained within vehicle. This product is intended for weather protection only and should not be relied upon
to contain occupants in the event of an accident or to protect from either ground contact or falling objects.
To reduce risk of accident or injury:
•
ALWAYS WEAR SEATBELTS
•
Always keep head, arms & body parts within vehicle.
•
Fully secure or stow the soft top before driving according
to instructions. Never try to latch or fold soft top while
driving. Do not use if damaged or worn.
•
Read and follow all instructions & warnings accompanying
this product, in your vehicle owner's manual and Off Road
Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while installing or maintaining
this product.
Bimini Plus Top for 2018-Current
Jeep
JLU Wrangler Vehicles
®
Items 14300635, 14300624
Safety Glasses
Required Tools:
T25 Torx Bit & Driver
*(Found in on-board tool kit)
Advertisement
Related Manuals for MasterTop Bimini Plus 14300635
Summary of Contents for MasterTop Bimini Plus 14300635
- Page 1 MT_JLU_BIMINI_PLUS_LTR.qxp_Layout 1 4/10/20 10:06 AM Page 1 Installation Instructions Installation Instructions Bimini Plus Top for 2018-Current Jeep JLU Wrangler Vehicles ® Items 14300635, 14300624 Fabric Bimini Top Plus - QTY 1 Safety Glasses Parts List: Required Tools: Front Buckle Straps - QTY 2 T25 Torx Bit &...
- Page 2 Before you begin Installation: We are excited that you have chosen the MasterTop Bimini Top Plus! This high-quality Summer Soft Top is designed to enhance your fair-weather driving pleasure while providing some interior protection. Please note that it is important that you become familiar with the installation process of this cover by reading the following instruction sheet and warnings thoroughly.
-
Page 3: Installation Instructions
MT_JLU_BIMINI_PLUS_LTR.qxp_Layout 1 4/10/20 10:07 AM Page 3 Installation Instructions Installation of Bimini Plus Top: Step 1: Drape Fabric and Install FIG1 FIG2 Front Side Straps Put on safety glasses. After removing your hard top or soft top from your vehicle, Drape the Bimini Top Plus fabric over the top of the vehicle with the front rubber seal facing forward. - Page 4 Installation of Bimini Plus Top: Thread the Four Front Center Straps As you did in FIG11 FIG12 step 2, stand on the threshold of your Jeep, locate the four center straps and thread the strap between the windshield and the front roll bar sliding it slightly from left to right until it works its way through the gap (Figs 11 &...
- Page 5 MT_JLU_BIMINI_PLUS_LTR.qxp_Layout 1 4/10/20 10:07 AM Page 5 Installation Instructions Installation of Bimini Plus Top: Step 7: Attach the Two Rear Side Straps Locate the two rear side straps as shown in FIG 22. FIG22 Wrap the straps around the rear roll bar and thread/buckle the straps.
- Page 6 MT_JLU_BIMINI_PLUS_LTR.qxp_Layout 1 4/10/20 10:08 AM Page 6 Installation of Bimini Plus Top: Three Screw Locations Step 10: Attach the Inside Center Straps to where you will install the D-Ring Straps Using a T25 Torx bit (found in your on-board Torx tool the Sound Bar kit) and driver, remove the three screws on the sound bar header (FIGs 32 &...
-
Page 7: Care Instructions
® Your MasterTop Bimini Top Plus is made of the finest materials available but to keep it looking new and for the maximum possible wear, it will need periodic cleaning and basic maintenance. The main threat to your soft top is pollutants, dirt and grime. -
Page 8: Limited 3 Year Warranty
United States, MasterTop warrants to the initial retail purchaser only that your MasterTop accessory shall be free of defects in material and workmanship; for a period of 3 years from date of initial retail sale.
