Bimini Top Plus Parts List:
Fabric Bimini Top Plus - QTY 1
Wind Stopper -QTY 1*
*(148507xx models only)
Loss of vehicle control involves risk of death or serious injury, particularly to parts
of your body not restrained within vehicle. This product is intended for weather
protection only and should not be relied upon to contain occupants in the event of
an accident or to protect from either ground contact or falling objects. To reduce
risk of accident or injury:
• ALWAYS WEAR SEATBELTS
WARNING
• Always keep head, arms & body parts within vehicle.
• Fully secure or stow the soft top before driving according to instructions.
• Read and follow all instructions & warnings accompanying this product,
CAUTION
RISK OF EYE INJURY. Safety glasses should be worn at all times while installing or
maintaining this product.

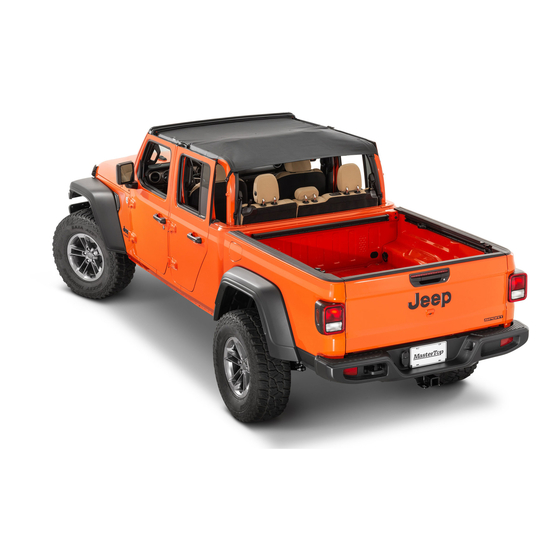

Bimini Top Plus & Wind Stopper Combo for
2020-Current Jeep® Gladiator Vehicles
Required Tools:
Safety Glasses
T25 Torx Bit & Driver
*(Found in on-board tool kit)
Never try to latch or fold soft top while driving. Do not use if damaged or
worn.
in your vehicle owner's manual and Off- Road Driving Supplement.
Items #143007XX, 148507XX
Advertisement
Table of Contents
Related Manuals for MasterTop Bimini Top Plus
Summary of Contents for MasterTop Bimini Top Plus
- Page 1 Installation Instructions Bimini Top Plus & Wind Stopper Combo for 2020-Current Jeep® Gladiator Vehicles Items #143007XX, 148507XX Bimini Top Plus Parts List: Required Tools: Fabric Bimini Top Plus - QTY 1 Safety Glasses Wind Stopper -QTY 1* T25 Torx Bit & Driver...
- Page 2 Important Safety information Your MasterTop® Bimini Top Plus and Wind Stopper are intended to increase the fair weather enjoyment of your off-road capable vehicle. Before installation, please take a moment to review the following safety information and installation instructions. Important safety information is generally preceded by one of three signal words indicating the relative risk of injury.
- Page 3 Front Side Straps Put on safety glasses. After removing your hard top or soft top from your vehicle, Drape the Bimini Top Plus fabric over the top of the vehicle with the front rubber seal facing forward. The top should rest on the roll bar structure.
- Page 4 Installation of Bimini Top: Step 4: Thread the Four Front Center Straps As you did in step 2, stand on the threshold of your Jeep, locate the four center straps and thread the straps between the windshield and the front roll bar sliding it slightly from left to right until it works its way through the gap.
- Page 5 (Fig 29C). Pull these straps tight and secure the hook and loop. Tighten all straps to take out wrinkles and to keep the top from Flapping. See page 7 for Bimini Top Plus Adjustments and Care & Maintenance. Your Bimini Top Plus is now Installed...
- Page 6 Bimini Top Plus, you must buy these two components as the kit part 148507XX. The Bimini Top Plus included in this kit has a strip of hook and loop fastener attached to the rear of the Bimini Top Plus: The Wind Stopper straps are designed to fit over the Bimini Top Plus straps as shown to the left.
- Page 7 Using/Adjusting your Bimini Plus Top: Your Bimini Top Plus is designed to fit tight but due to wind currents at several different speeds, you may experience a “slapping sound”. The best way to eliminate that sound is to make sure the top is tight and by...
- Page 8 United States, MasterTop warrants to the initial retail purchaser only that your MasterTop accessory shall be free of defects in material and workmanship; for a period of 3 years from date of initial retail sale.
