Product Installation Diagram

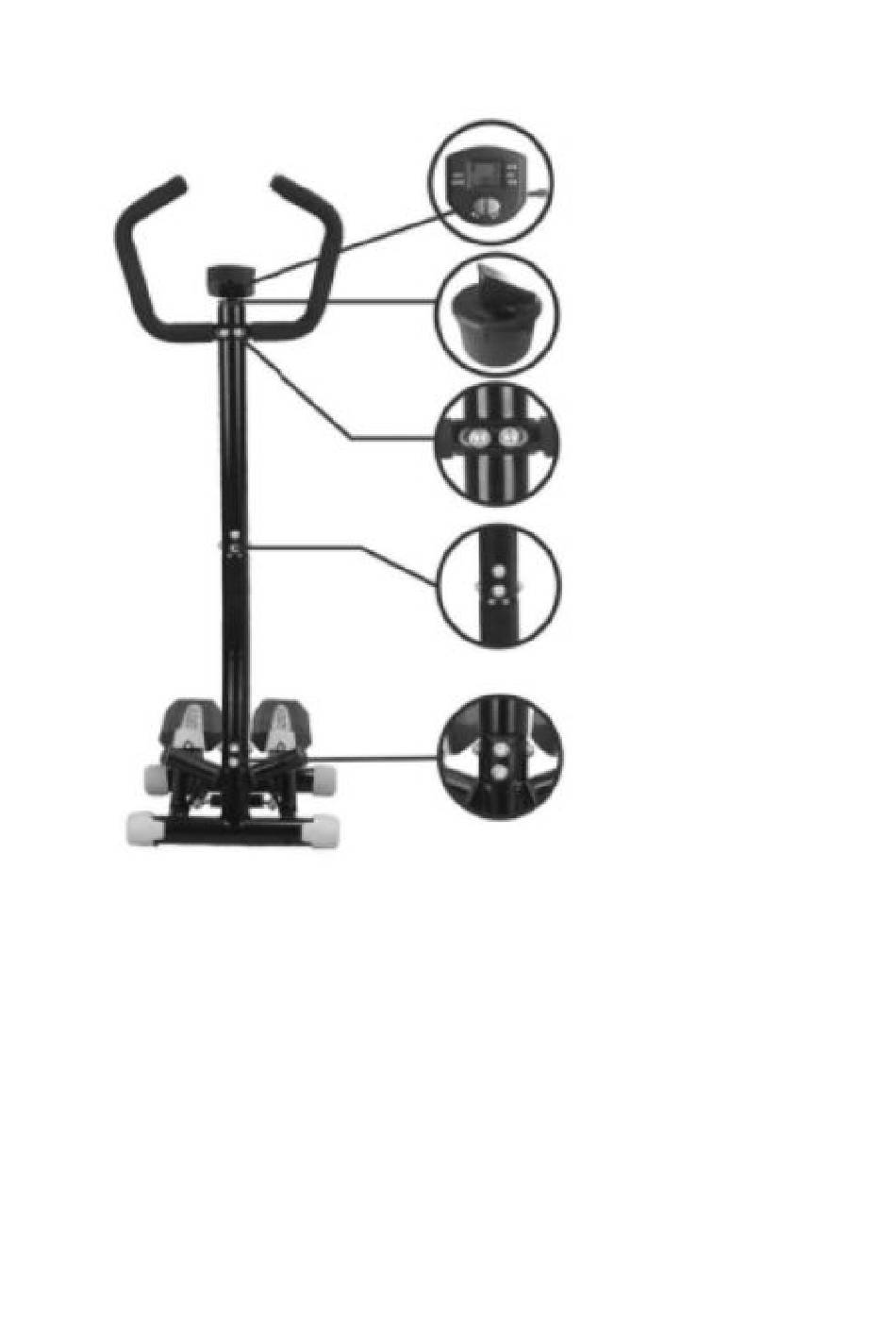

5. Connect the induction thread to
the thread of the electronic meter,
and insert the electronic meter into
the base as shown in the picture.
4. Insert the electronic meter base
into the upper pipe as shown in the
picture and stuck it.
3. Fix the handrail on the upper
pipe and then use the arc gasket and
screws to fix it as shown in the
picture and tighten it.
2. Pass the induction
through the upper pipe and put the
upper pipe into the lower pipe, then
fix them with the arc gasket and
screws as shown in the picture and
tighten it.
1. Pass the induction
through the lower pipe and put the
lower pipe into the main engine,
then fix them with the arc gasket
and screws as shown in the picture
and tighten it.
thread
thread
