Control panel

Parts and functions
Reference Designation
1 Touchscreen
2 Warning sign
3 Service sign
4 Operation sign
5 Voltage sign
6 Stop button
7 Start button
9829 3199 74

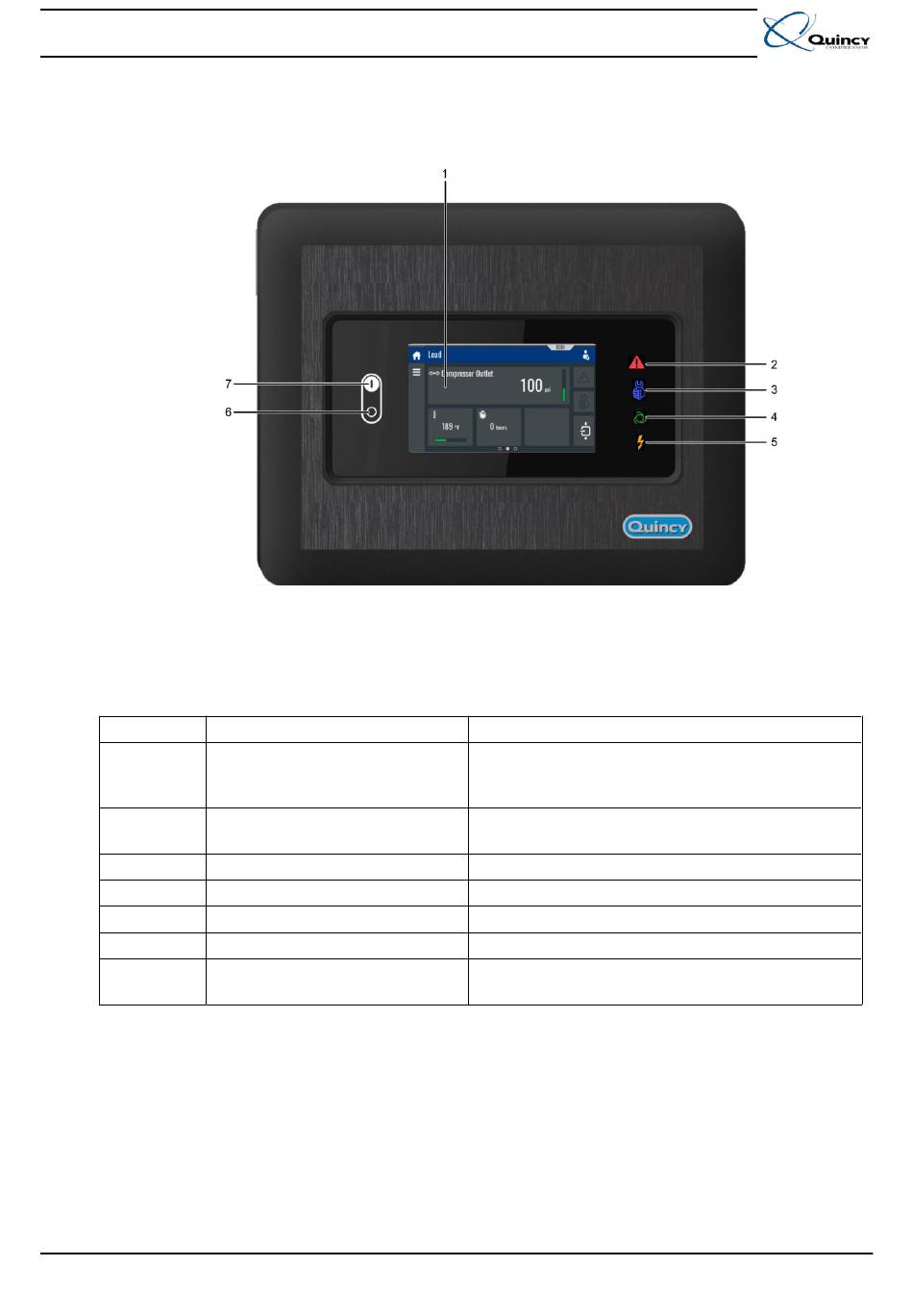

Figure 2: Control Panel
Function
Shows the unit operating condition and a number of
icons to navigate through the menu.
The screen can be operated by touch.
Flashes in case of a shut-down, is lit in case of a
warning condition.
Is lit when service is needed.
Is lit when the unit is running in automatic operation.
Indicates that the voltage is switched on.
This button stops the unit.
This button starts the unit. The operation sign (4)
lights up. The controller is operative.
Table 1: Parts and functions
