Menu Screen - Quincy Compressor QOFT 20 Instruction Book

Function
Setpoints
Control mode
Display language
Manual unload (only
on fixed speed units)
Week timer
Remaining running
time
Auto restart
3.6

Menu screen

Function
This screen is used to display the different menus where settings can be viewed or changed.
Procedure
The Menu screen can be viewed by tapping the Menu button or by swiping right, starting from the
main screen.
Description
Reference Designation
(1) Data
28
Description
Several setpoints can be modified by tapping this icon.
The control mode can be changed by tapping this icon.
• Local control via start/stop buttons
• Remote control via digital input(s)
• LAN control via the network.
When in Remote or LAN control, the start/stop buttons on the controller will not work.
The display language of the controller can be changed by tapping this icon.
When tapped, the machine will go in Manual unload mode until the icon is tapped
again.
Week timers can be set by tapping this icon.
The Remaining running time can be set and modified by tapping this icon.
Auto restart can be activated by tapping this icon.

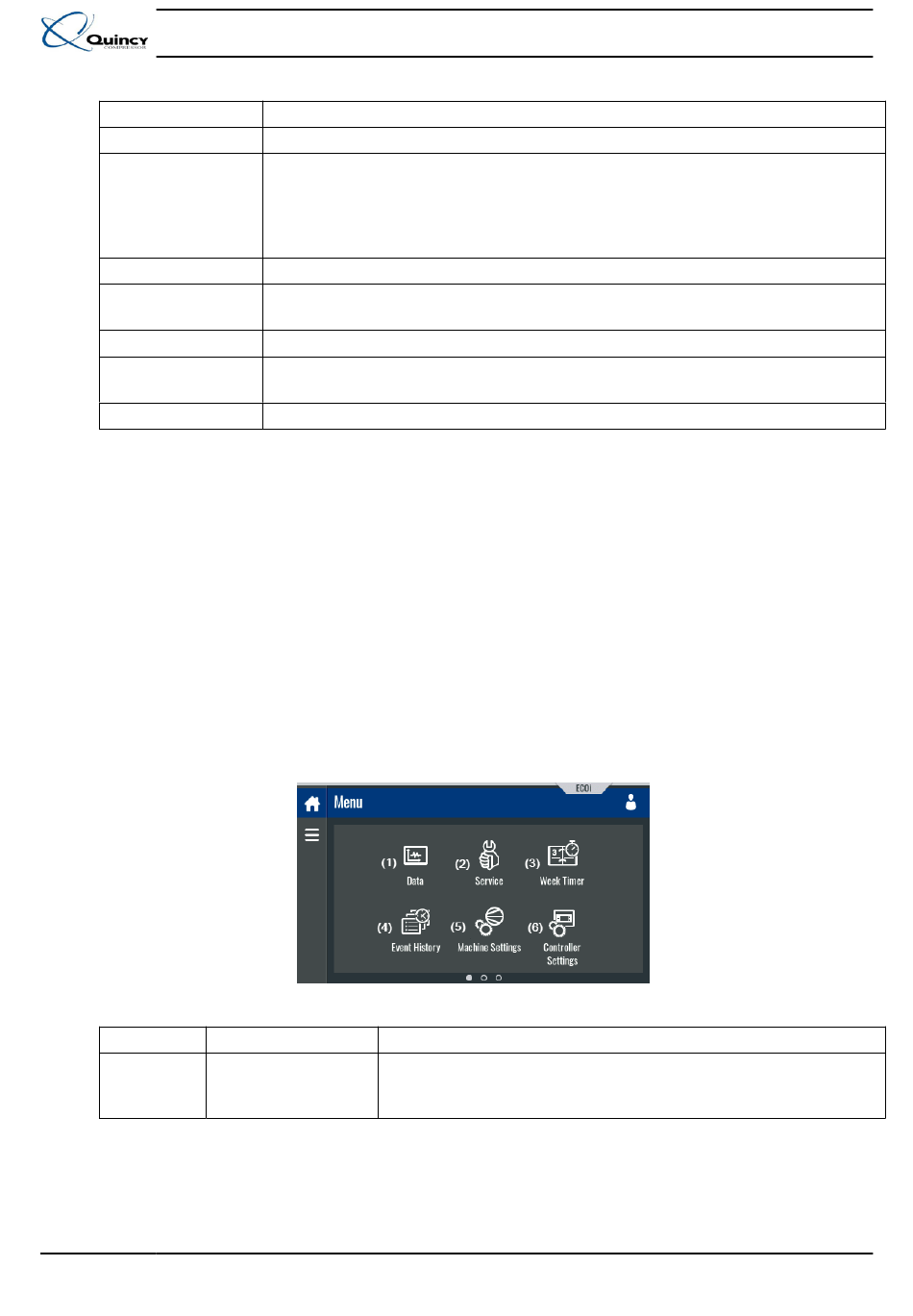

Figure 5: Menu screen
Function
The data menu contains the status of the unit, information about the
Inputs, Outputs and Counters. The Auxiliary equipment can also be
viewed through this menu.
