WOLF PUP LT LOOM
A D
ssembling
BEFORE YOU BEGIN
■ Read through the directions before starting to assemble your
loom.
■ You'll find a complete labelled diagram of the Wolf loom in your
Maintenance and Warranty manual and at schachtspindle.com.
■ Wolf loom legs are called out by where they cross each other.
The legs that touch the ground at the front of the loom are called
"inside" legs because they are covered by the "outside" legs when
they cross at the loom center.
■ The beater is at the front of the loom. The brake is on the right
side of loom.
■ All wooden parts of the loom have been finely sanded and
finished with hand-rubbed Danish oil. From time to time, you may
wish to apply more finish to the loom. Use a Danish oil (tung oil and
polyurethane mixture) and hand-rub the wood with a soft lint-free
cloth. Be sure to follow the finish manufacturer's instructions.
TOOLS
#2 Phillips screwdriver
slotted (flat) screwdriver and/or masking tape
adjustable wrench or wrenches in the following sizes:
5/16", 7/16", 3/8", 1/2"

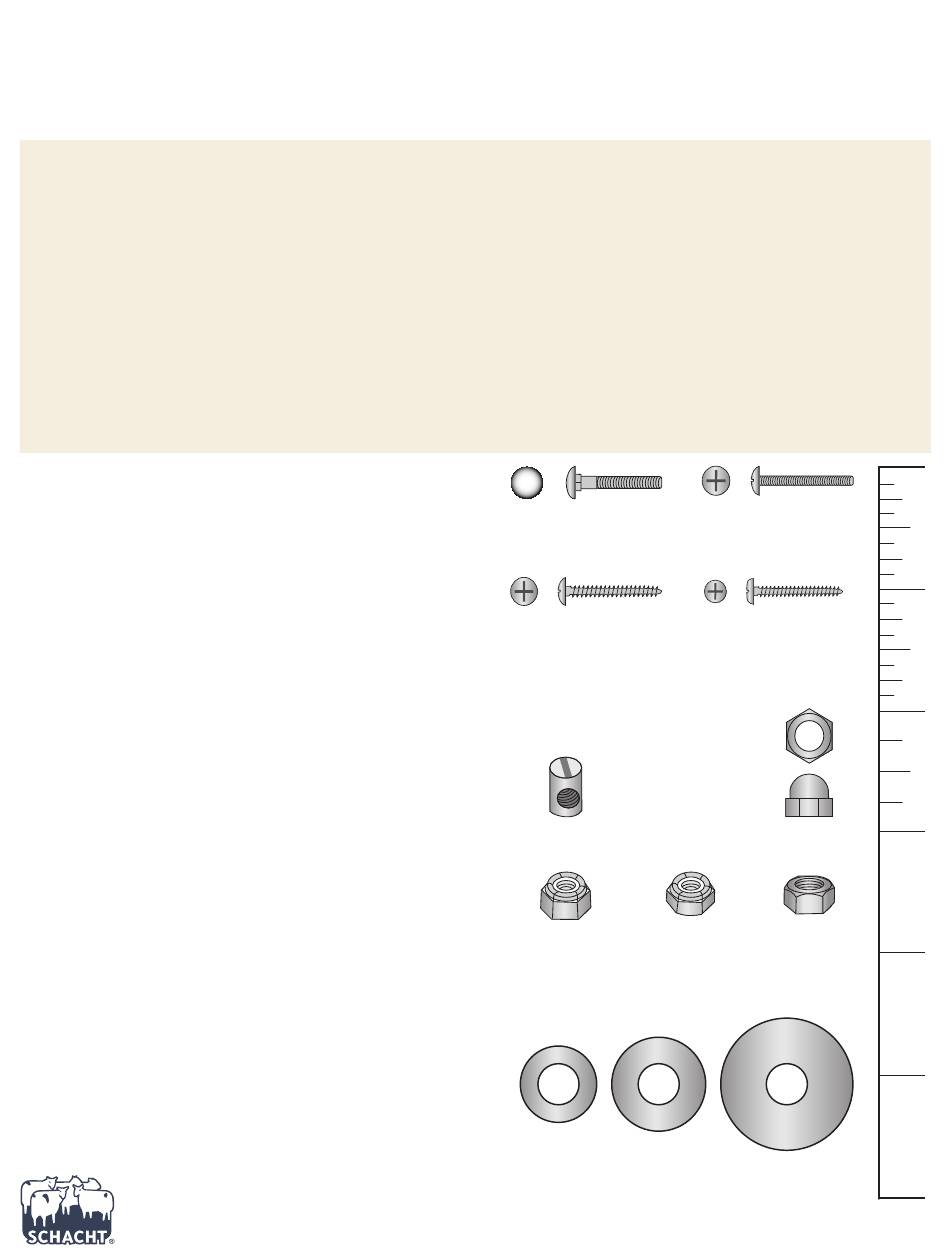

COMMON HARDWARE
These drawings are not to scale and hardware is not shown in
every size listed.
■ Screws and bolts are sized in inches, measured by shaft
length. Measure the shafts of screws and bolts with a metal tape
measure or the ruler on this page. First identify all the screws and
bolts in a bag, then it will be easier to identify any nuts.
■ Nuts attach to carriage bolts and machine screws. They have
to match the bolt or machine screw in diameter and thread
size. Match the numbers at the beginning of the description (for
instance, 10-24 or 1/4-20) to the corresponding bolt or machine
screw.
■ Washer sizes refer to the diameter of the hole; measure
the hole with a metal tape measure or the ruler on this page. The
washers shown below all the same size, but they are different
types. For the same size washer, SAE washers have the smallest
outside diameter, fender washers have the largest outside
diameter, and USS washers are in the middle.
For more help identifying hardware, see our guide at
www.schachtspindle.com/pdfs/schacht-hardware-guide.
pdf.
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
303.442.3212
© 2022 Schacht Spindle Company, Inc.
l
isAssembleD
TM
ooms
■ Unpack the loom parts carefully and compare them to the
drawings on pages 2 and 3. Do not throw away the carton or any of
the packing material until you have checked to see that all of the
parts and hardware bags have been included.
■ Hardware for your loom has been packed into bags for different
steps in the assembly process. Open each bag only when you reach
those steps, then identify the pieces included in that bag.
■ Follow the exact order of assembly. Take care and work slowly. It
will be easier to assemble your loom with a helper. Some steps may
require two people.
■ When you finish assembling the loom, go back over all of the
screws and make sure they are tight. For screws on parts that need
to pivot, tighten the screw firmly, then unscrew just enough to allow
free movement. It is a good idea to re-tighten all screws on your loom
every few months.
carriage bolt
Phillips truss head
sheet metal screw
IDENTIFYING SCREWS AND BOLTS
barrel nut
lock nut
IDENTIFYING NUTS
SAE washer
IDENTIFYING WASHERS
- 1 -
Phillips truss head
machine screw
Phillips pan head
sheet metal screw
cap nut
slim lock nut hex nut
USS washer fender washer
FL3006E
FL3009E
0
1
2
3
4
5
6
