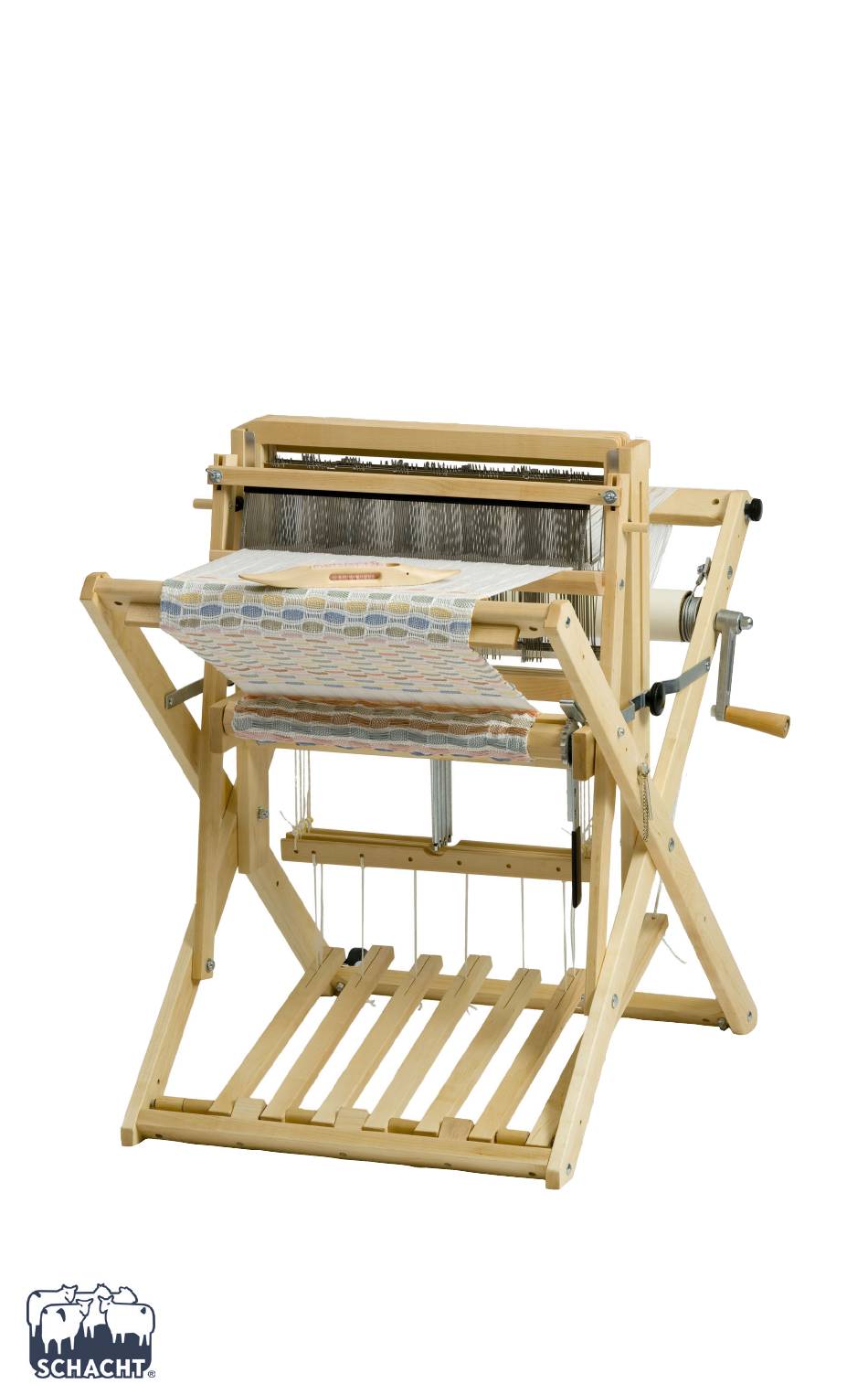

- Page 1 FL3006 FL3009 WOLF PUP LT ssembly Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 303.442.3212 © 2023 Schacht Spindle Company, Inc. 06.23...
-
Page 2: Before You Begin
WOLF PUP LT ssembly upper castle shafts support castle side beater brake fold knob ratchet dog outside leg ratchet gear ratchet advance inside leg lever brake release pedal BEFORE YOU BEGIN ■ All Wolf looms assemble in a similar way. Watch the Baby Wolf assembly video on our Youtube channel (www.youtube.com/user/schachtspindle). -
Page 3: Tools Required
Hardware bag 2: PARTS 3/8" cap nut Wrapped onto warp beam: 3/8" washer apron bars #12 SAE washers lease sticks (with holes) 1/4-20 slim lock nuts 1/4-20 x 2" Phillips truss head Accessory pack: machine screws Maintenance & Warranty Manual 1"... - Page 4 UNFOLDING THE LOOM front beam extension Slightly loosen the black fold knobs facing outward on each side of the loom (Figure 1). Generally, a single turn will do. Loosening the knobs all the way or removing them can cause the loom to front collapse, which could result in injury.
- Page 5 the wooden handle facing out. Secure with the the 3/8" cap nut. When you’re weaving, the crank should be pushed off of the cap nut. To engage the crank for turning the warp beam, pull the hexagonal hole in the crank onto the cap nut.
- Page 6 Optional: To keep the heddles from heddles sliding around during the next steps, tape each group of heddles to their heddle bars heddle bar with masking tape. upper castle Lift the shaft frame closest to the front support of the loom and prop it up using a book or small block of wood.
-
Page 7: Installing The Wheels
INSTALLING THE WHEELS 1/4-20 x 1-1/2" Phillips truss head machine screws Skip this step if you will install a stroller on your loom. With the loom unfolded, lock nuts install the wheels. Use two 1/4-20 x 1-1/2" Phillips truss head machine screws and two 1/4-20 lock nuts to attach each wheel to the rear leg brace (Figure 10). - Page 8 REMOVING THE BACK BEAM back beam knob The back beam can be removed for better access to the heddles when you thread the loom. Loosen the back beam knobs on each side of the back beam and lift the beam out (Figure 13). To replace the back beam, slide the beam back into the legs and tighten the knobs.
