Set up Device on Rack

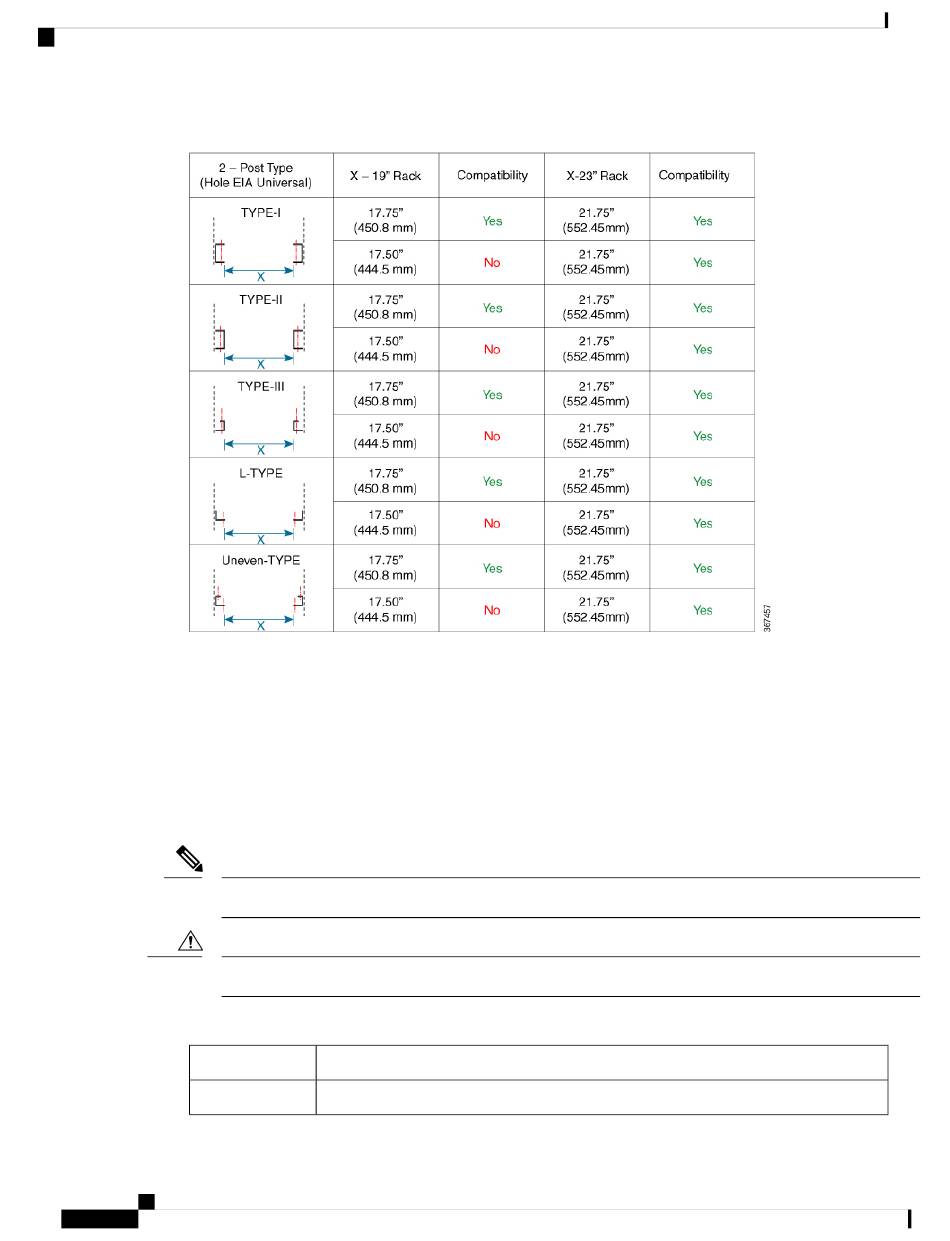

Figure 9: Two Post Rack Type
Set up Device on Rack
You can set up the Cisco N540-24Q8L2DD-SYS on a rack.

Rack Mount

The device is shipped with rack mounting brackets that are to be secured on the sides of the device.
Note
Caution
Table 6: Cisco N540-24Q8L2DD-SYS Router Rack-Mount Kit
Quantity
2
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
32
For rack mounting brackets details, refer to Table 5.
If the rack is on wheels, ensure that the brakes are engaged or the rack is otherwise stabilized.
Part Description
Rack-mount brackets
Install the Device
