Install the Device
Quantity
8
4
1. Attach the rack-mount brackets and the cable guides to the router as follows:
a. The router has port-side intake modules, position the router so that its ports are facing the cold aisle.
b. Position the bracket ears facing front or middle rack-mount, on the side of the chassis so that the holes
c. Use four M4 screws to attach the brackets to the chassis.
d. Repeat Steps 1b and 1c with the other rack-mount bracket on the other side of the router.

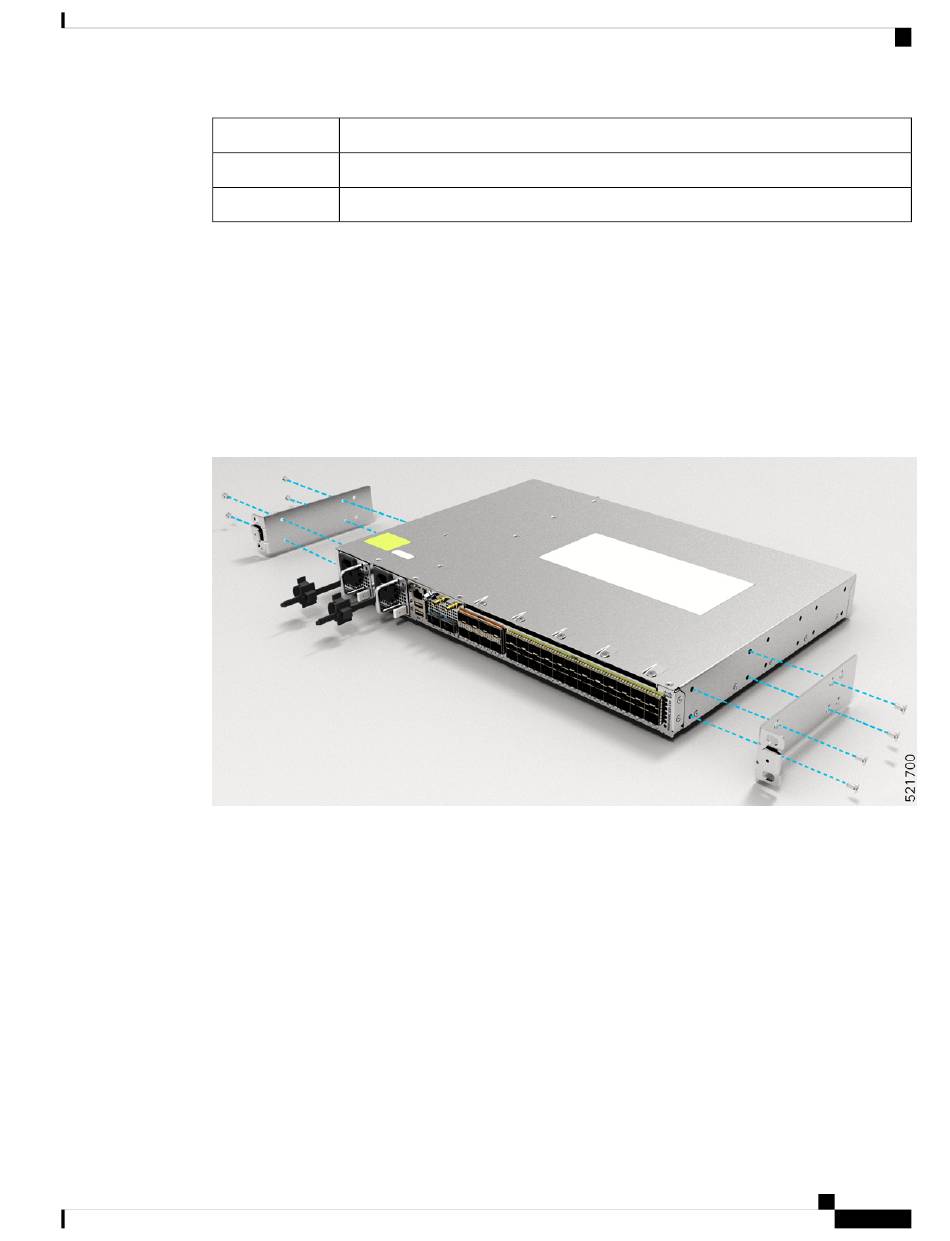

Figure 10: Installing 19-inch Rack-Mount Brackets (N540DD-RKM-19)
Part Description
M4 x 0.7 x 7-mm Phillips flat-head screws
12-24 x 0.49 inches L, Philips pan head screws
are aligned.
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
Rack Mount
33
