HEATING PIPING LOCATIONS - FLOOR UNITS ONLY
HOT WATER HEATING COIL - WITH PIPING PACKAGE

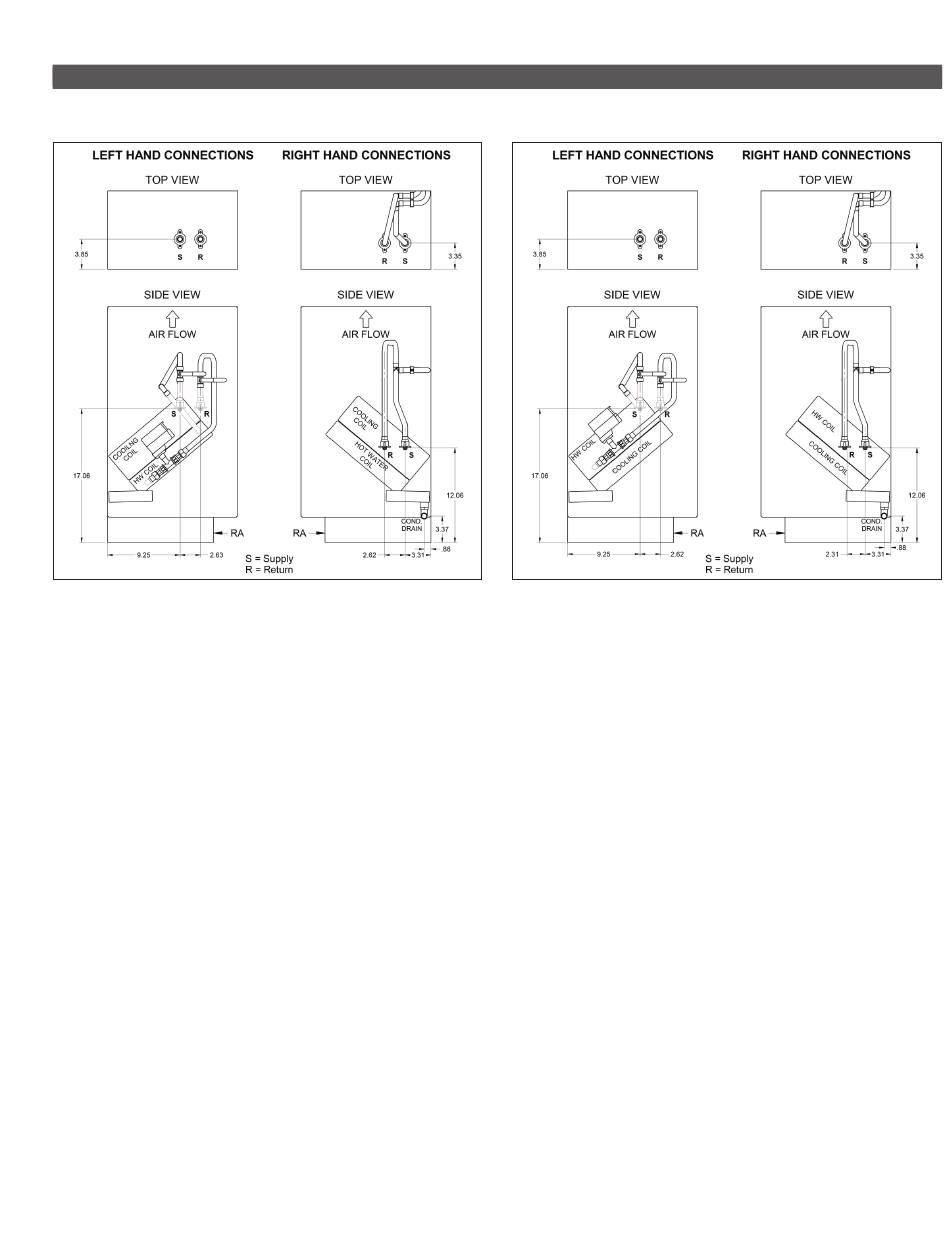

Figure 25.1 - Hot Water Heating Coil Only or Chilled
Water/DX Cooling Coil with Hot Water Pre-Heat Coil
j Condensate drain connection located in right end compartment when unit is
equipped with a cooling coil.
Note:
All dimensions shown on this page are in inches and are for reference only. For dimensions in mm, multiply inches by 25.4.
Figure 25.2 - Chilled Water/DX Cooling Coil with Hot
Water Reheat Coil
j Condensate drain connection located in right end compartment when unit is
equipped with a cooling coil.
14-500.7
25
