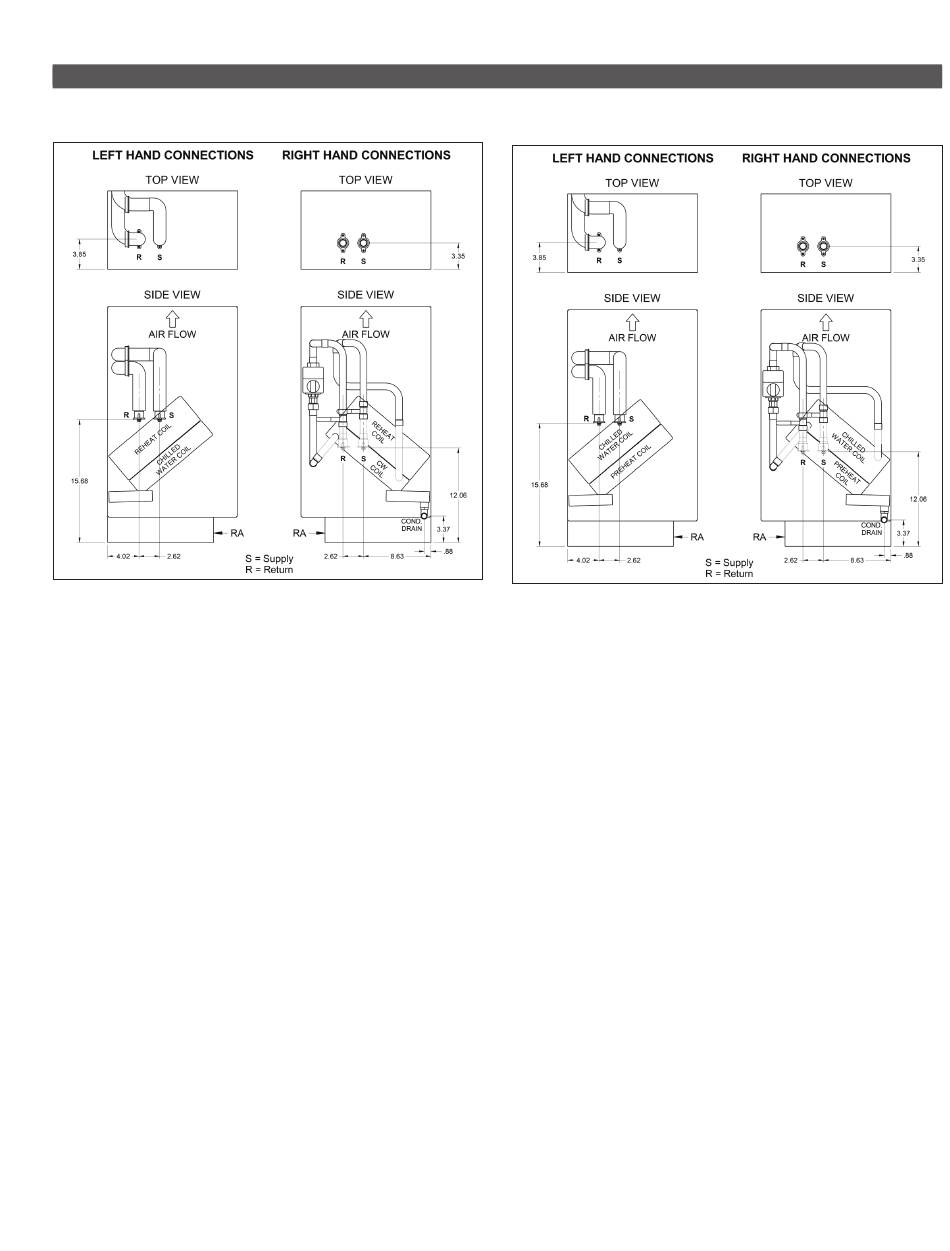

COOLING PIPING LOCATIONS - FLOOR UNITS ONLY
Figure 23.1 - Chilled Water Coil with or without Option-
al Reheat Coil
j Condensate drain connection located in right end compartment.
Note:
All dimensions shown on this page are in inches and are for reference only. For dimensions in mm, multiply inches by 25.4.
CHILLED WATER - WITH PIPING PACKAGE
Figure 23.2 - Chilled Water Coil with Pre-Heat Coil
j Condensate drain connection located in right end compartment.
14-500.7
23
