Summary of Contents for Prolux QX-90

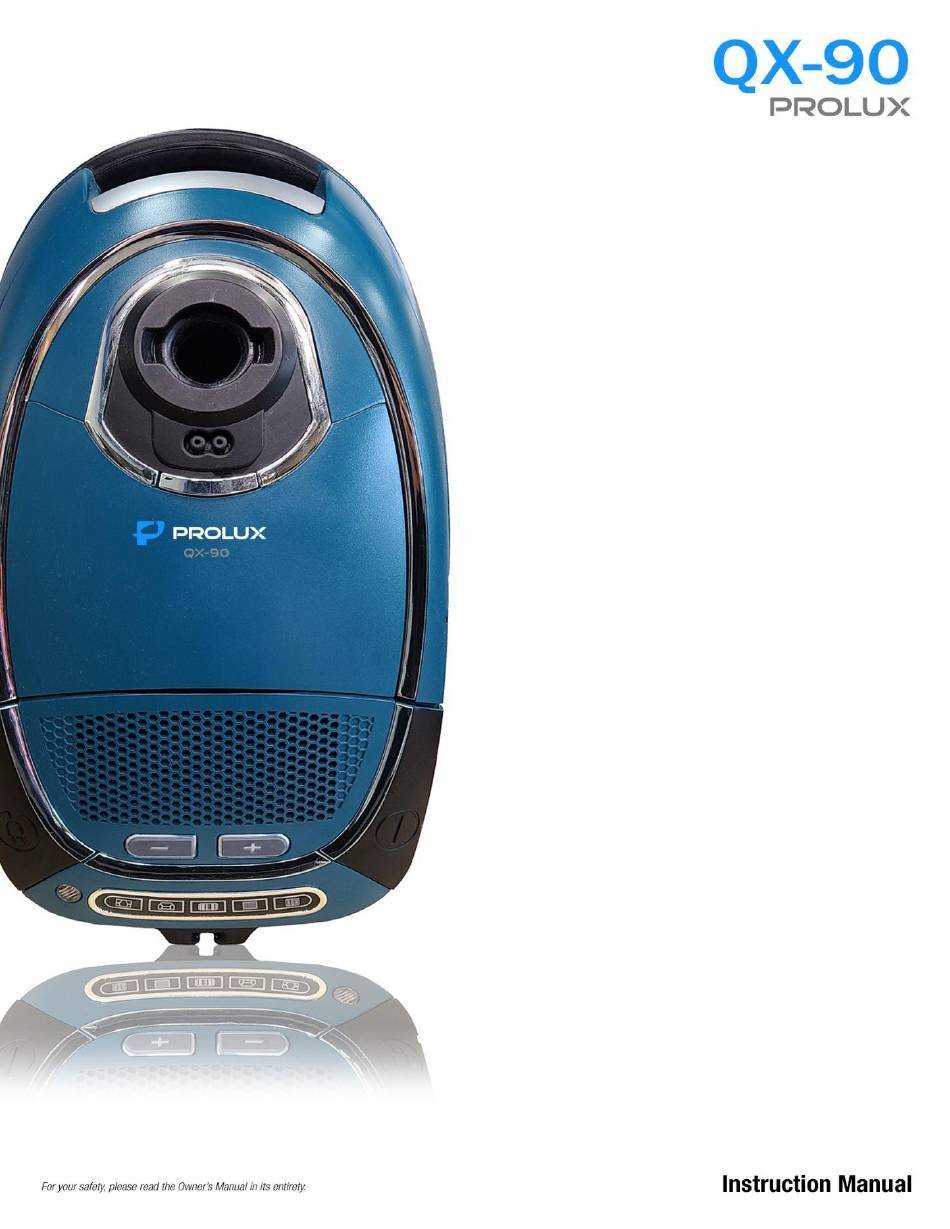

- Page 2 This high-end vacuum is designed to provide ample power and superior filtration. Keep your floors clean and prolong the life of your flooring in just a few easy steps. Prolux…. Cleaning Reinvented! Welcome to the Prolux family and don’t forget to register for your warranty at...
-
Page 3: Table Of Contents
Table of Contents Quick Assembly Specifications Warranty Safety Precautions Description of Parts Unpacking and Assembling Unpacking & Assembly 11-12 Using Accessories and Tools Power Nozzle Operation Vacuum Cleaning Setting the Suction Power Switching off and Retracting Power Cord Transport and Storage Maintenance Powerhead Maintenance Changing the Dust Filter Bag... -
Page 4: Quick Assembly
Quick Assembly To view some videos on unboxing, assembling, and using your new vacuum you can find them at the link below, or scan the QR code to go to our YouTube page to see all our videos: https://proluxcleaners.com/pages/qx... -
Page 5: Specifications
● 25’ Self Retracting Power Cord. ● Prolux EBK 360 powerhead with 5 Height Settings and LED headlights ● Durable Hose - 6 Foot crush proof electric hose with heavy duty ends and handle control switch ●... -
Page 6: Warranty
WARRANTY Here at Prolux we take pride in the quality of our products, so much of our time and money is spent on R&D rather than advertising. Because of this we feel very confident in the quality of our products and feel very comfortable being able to offer a LIFETIME motor warranty and a 5-year body warranty. -
Page 7: Safety Precautions
IMPORTANT SAFETY INSTRUCTIONS Vacuum Safety Read the owner's manual in its entirety before using this product. Failure to do so can result in serious injury or death. Prolux takes no responsibility for damages/injuries due to violations of the following operating instructions. - Page 8 SAFETY CONTINUED 6. Do not pull or carry the vacuum by its power cord, do not use the power cord as a handle, do not close the door on the power cord, or pull the power cord around sharp edges or corners.
- Page 9 Do not vacuum or clean: Hair and other parts of the body. They could be sucked in and cause injury. Pieces of Clothing (e, g, shoelaces, scarves, etc.). They could be sucked in and cause injury. Water and other liquids, especially moisture from carpet cleaning agents. Moisture inside the appliance can lead to short-circuiting.
-
Page 10: Description Of Parts
Description of Parts 1. Main Vacuum 7. Crevice Tool 2. Main Hose 8. Duster Brush 3. Extendable Wand 9. Mini Turbo Head 4. Electric Powerhead 10. Tool Caddy 5. Upholstery Tool 11. HEPA Bags 6. Floor Tool... -
Page 11: Unpacking & Assembly
Assembling and Using Your Vacuum Cleaner Important: ● Check the vacuum cleaner and the power cord each time before using it. A damaged appliance must not be used. There is danger of injury. ● For the best results do not use the vacuum without all filters properly installed and conditions are dry. - Page 12 3. Insert the extendable wand end into the powerhead pivot and press down lightly to lock the wand end into the powerhead pivot. 4. Extend the wand by pressing the tab on wand and pulling the hose handle upward to extend the wand to the proper length. Once the proper length has been desired release the wand tab and the wand will lock into place.
-
Page 13: Using Accessories And Tools
Using The Attachments Prolux is proud to include the highest quality attachments available! Through research and development and trial and error… Prolux has finally perfected vacuum attachments, matching durability with functionality! This is Cleaning…Reinvented! ● Dusting Brush - The dusting brush is your answer to dusting furniture, wood or laminate blinds and fan blades. -
Page 14: Power Nozzle
Electric Powerhead - Use the powerhead for all types of floor cleaning. Whether it be hard floors or carpet this head can handle it all. Just attach the head to the extendable wand, flip the switch on the hose handle and you’re ready to clean. -
Page 15: Operation
The Prolux QX90 is a high-end vacuum designed to last many years and this feature protects the motor and allows it to be used for many years to come. When the motor bypass valve opens you will notice less suction and a different motor sound. -
Page 16: Setting The Suction Power
4. When working with the vacuum cleaner, pull it after you like a sled. Follow the respective recommendations of the flooring manufacturers. NOTE: When using it with the electrical power nozzle for carpet the power nozzle may be turned on with the hose handle switch (on/off switch) AND by pressing the pivot release button on the power nozzle itself. -
Page 17: Transport And Storage
Transport and Storage To transport the vacuum cleaner, you can set the vacuum upright and carry it by the top handle. The hose, wand and powerhead can remain attached to the main canister and can be carried in your other hand by holding the extendable wand. -
Page 18: Maintenance
Maintenance Powerhead Maintenance The brush roll can be cleaned from the outside for a quick clean by using a razor blade or scissors to cut the built-up hair, string, etc. and then pull it off of the brush roll through the brush roll area opening. -
Page 19: Changing The Dust Filter Bag
Changing the Dust Filter Bag Change the dust filter bag as soon as the bag change indicator shows “red”, or the suction power has decreased. l. Open the bag compartment cover by unlatching and subsequently raising it. 2. Raise the bag compartment cover until it locks in the highest position and remains open by itself. -
Page 20: Changing The Filters
Changing Filters Your vacuum cleaner is equipped with the following filters: -Motor protection filter prevents larger particles from destroying the motor in case the dust filter bag is defective. Change as needed or if the vacuum overheats or the bypass valve opens. -H12 HEPA exhaust filter removes microscopic particles from the exhaust air. -
Page 21: Cleaning The Housing
Changing the Motor Protection Filter 1. Switch off the vacuum cleaner and remove the dust filter bag as described in section “Changing the Dust Filter Bag," steps 1 thru 4. 2. Remove the filter holder and motor protection filter. Slightly press it down and then pull the filter forwards and out. -
Page 22: Frequently Asked Questions
Frequently Asked Questions 1. Why is my vacuum not picking up? ● Vacuum bag is full. Open the top of the unit and check bag capacity. ● Clog in the hose or wand. Remove the hose from the vacuum. Separate the hose from the wand. -
Page 23: Troubleshooting
Troubleshooting WARNING: Never use a defective appliance. Always switch the appliance off and disconnect it from the outlet or remove the battery before you start to troubleshoot. Fault Possible Cause(s) Solution The vacuum will not turn on. The plug is not connected to the Insert the plug into an electrical wall outlet and flip the “on/off”... - Page 24 Troubleshooting for Electric Power Nozzle – Problem – electric power nozzle does not power up (motor does not turn on in power nozzle). Solution – Please follow all the steps below and try again: a. Unplug cord from power nozzle on hose, count 20 seconds, then plug back in. b.
- Page 25 Why do I have to register my warranty within 90 days to get my Lifetime Warranty? Great question! Do you know what normally kills a vacuum cleaner? 1. Vacuum Dirt Bin being overfilled which causes the motor to overheat. 2. Improper cleaning and not replacing filters, which overheats the motor. 3.
-
Page 26: Warranty
Authorized Warranty claims: PROLUX shall be responsible for all parts, labor and shipping if the item is registered. If the item is NOT registered Prolux shall be responsible for the parts and labor of the repair and the customer shall be responsible for ALL shipping charges to AND from the Prolux service center. Prolux is constantly striving to improve our products. - Page 27 Environmental tips Once any electronic product is no longer functional, it should be disposed of in such a way as to cause minimum environmental impact, in accordance with the regulations of your local authority. In most cases you can take such products to your local recycling station.
