- Page 1 User Guide Prolux Ion Stick Vac Do not turn on the vacuum for the first time until the battery has been fully charged.
- Page 2 Congratulations on your purchase of one of the easiest cordless vacuum systems made!
- Page 3 The Prolux Ion Cordless Stick Vac is very light, easy to use and powerful enough to clean hardwood or carpet. It powerful battery gives you enough time to clean your whole home before needing recharged. Its 2-in-1 feature allows it to be an upright vacuum for cleaning all floor surfaces and the suction unit comes off the stick vac which can be used as a handheld vacuum.
- Page 4 Do not turn on the vacuum for the first time until the battery has been fully charged.

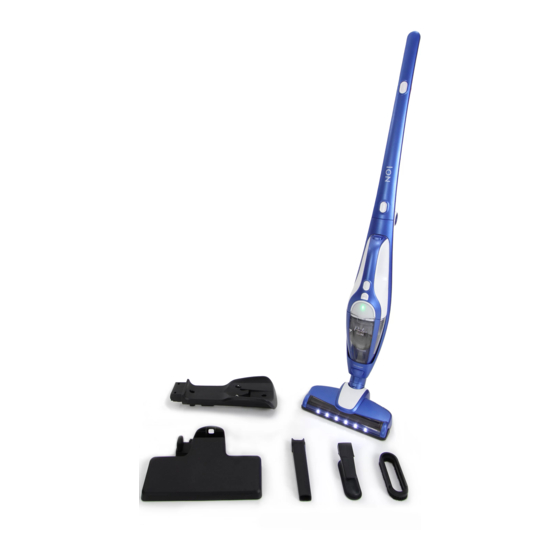

- Page 5 1 – On/Off Power Button for Stick Vacuum 2 – Folding Handle Release Button 3 – Release Button for Hand-Held Vacuum 4 – On/Off Power Button for Hand-Held Vacuum 5 – Release Button for Dust Cup 6 – Release Button for Electric Floor Brush Tool 7 –...
- Page 6 HOW TO ASSEMBLE THE PROLUX ION STICK VAC Step 1 – Carefully remove all the contents of the package (see image above for all parts) and set aside. Then recycle packing materials and box. Step 2 – Assemble the charging dock station. As shown on the figure above, vertically insert front and rear cover of the charging dock component into the adaptor assembly until it is firmly connected together.
- Page 7 Step 4 - Put the electric floor brush tool on the floor as shown in the picture below; and then directly insert the floor brush and the upper part of the vacuum body together; at last press hard on the upper part of the vacuum body in a downward direction until you hear a “click”...
- Page 8 Step 6 - Installation of vacuum cleaner and charging dock: as shown on the pictures below, please aim the charging plug on the charging dock to the slotted hole in the back of vacuum cleaner and then place them together as shown on the figure below. Make sure the charging doc is in a secure safe location and won’t tip over while vacuum is charging.
- Page 9 When this happens it is time to recharge. The Vacuum Cleaner has a safety feature that while the vacuum is charging it cannot be started. If the charging indicator light flashes red then green 2 times per second then contact your Prolux Service Center for service.
- Page 10 The Prolux Ion Stick Vac is designed to quickly and easily clean and vacuum ALL floor types.
- Page 11 SAFTEY FEATURE – The Prolux Ion Stick Vac is a high end vacuum that is designed to last for years to come. As such it comes with an automatic brushroll shut off feature. If large debris (such as a sock) is sucked into the vacuum or string wraps around the brushroll the brushroll vacuum will automatically turn off.
- Page 12 The Crevice tool can be used to clean in tight places like couch cushions, beside car seats, window track cleaning and other hard to reach places. Between the Multi Surface Floor tool, the 2-in-1 Upholstery/Duster Tool, and Crevice tool, the Prolux Ion Stick Vac can easily clean nearly any surface.
- Page 13 How to Maintain your Prolux Ion Stick Vac The Prolux Ion Stick Vac uses a bagless system. However from time to time you will need to empty it and clean the filters as shown below: Empty the dirt from the bagless chamber. You don’t have to empty the dirt chamber unless it is full.
- Page 14 Cleaning the Filters. Follow directions #1 above. Once the dirt chamber cup is released then twist the filter chamber in the direction shown below to gain access to the vacuum's filters. First do #3 and then do #4. When the filters have been removed clean the filter chamber cones as well as any filters. Tapping filters on garbage can or blowing compressed air through filters can clean and extend the life of the filters.
-
Page 16: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical vacuum appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE Do not leave appliance plugged in when working on the appliance in any way. • Turn off all controls before unplugging. - Page 17 WARRANTY IMFORMATION FOR THIS PRODUCT The manufacturer Prolux provides warranty of this vacuum for a time period of 2 years on the motor and 1 year on the rest of the unit, starting from the date on which the appliance is sold to the end user.
