Summary of Contents for Prolux Lite

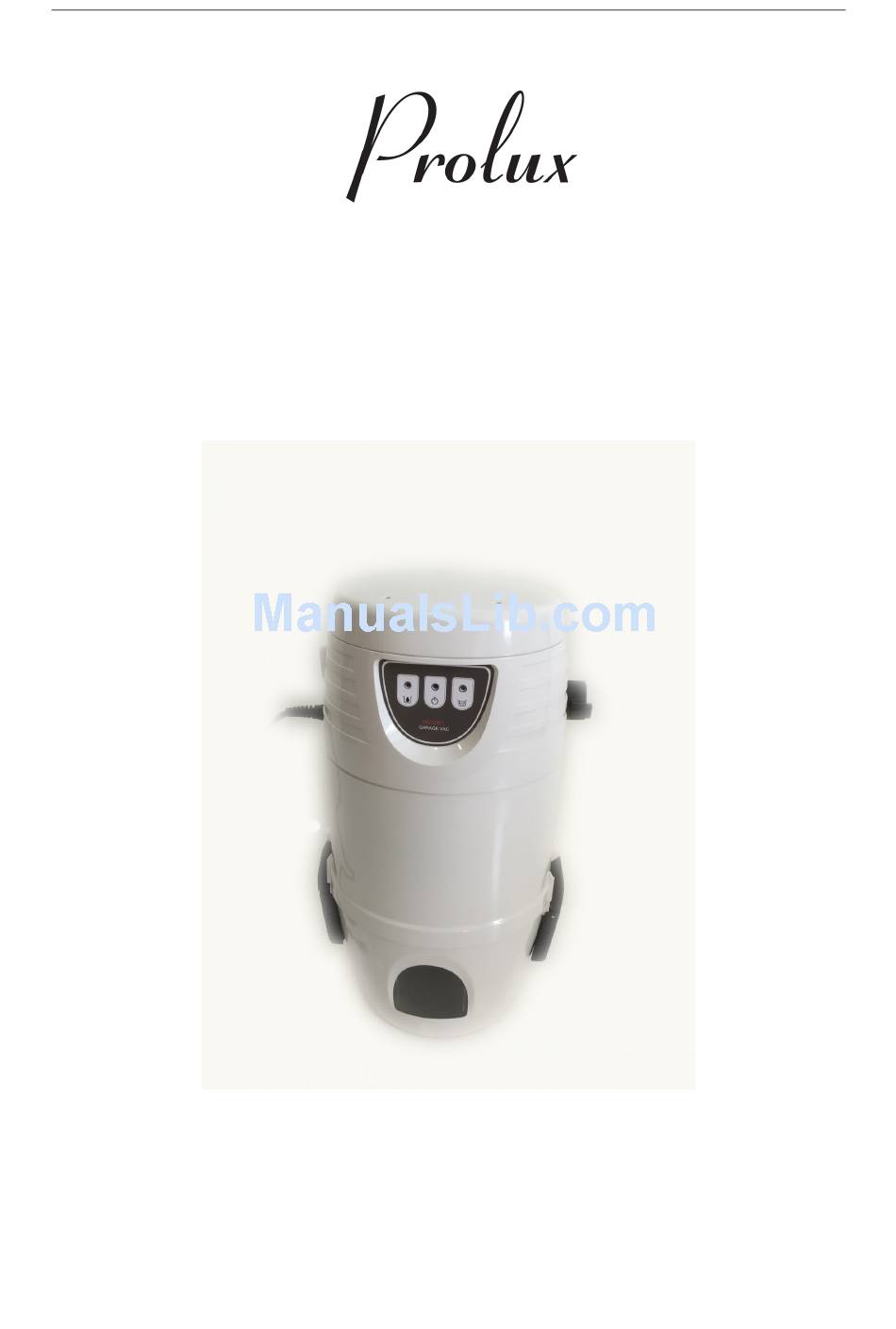

  • Page 1 Lite Garage Vacuum Instruction Manual...
  • Page 2 Congratulations on the purchase of your new Prolux Lite Wet/Dry Garage Vacuum! The Prolux Lite Garage Vacuum is powerful, dependable, has a tool for nearly every job and is light and compact enough to be stored in nearly any Garage.

  • Page 3: Table Of Contents

    Warranty Information Congratulations on the purchase of your Prolux Wet Dry Garage Vacuum! The Prolux Wet Dry is attractive, powerful and makes your life easier. Powerful – 90 cubic feet-per-minute of air flow & 98.5 inches of water lift. ...

  • Page 4: Safety Instructions

    Do not use with damaged cord or plug. If appliance is not working as it  should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Professional Vacuum Service Center or Prolux Authorized Vacuum Service Dealer. Use vacuum cleaner only for its intended use as described in this ...

  • Page 5: Vacuum Description & Parts

    Save these instructions! WARNING Operate cleaning system only at voltage specified on power unit. This system is intended for residential use. WARNING To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way.
  • Page 6 Included Accessories & Parts 11. 32ft Flexible Wet/Dry Hose 19. Upholstery Tool 12. Hose & Tools Holder 20. Extraction Shampooer Suction Tool 13. Extension Wands 21. 3 Sizes of Detailing & Inflator Tools 15. Multi-Surface Floor Tool 22. Long Detailing Precision Blower Tool 16.

  • Page 7: Assembly Instructions/Mounting Instructions

    Assembly Instructions 1. Remove the dirt tank by pulling up on both handles to unlatch. Lift upper half of unit to remove. 2. Remove all accessories and parts stored in the bottom of the tank prior to use. 3. If the round funnel comes out of dirt tank, set back inside the dirt tank before reassembling.
  • Page 8 Mounting on concrete wall (fasteners included) You will need: (4) 3/8” x 2-1/4” concrete sleeve anchors. 4 holes 1. Drill a 3/8” x 1-3/4” hole with a masonry drill bit. 2. Insert a bolt and anchor sleeve into the hole. 3.
  • Page 9 Mounting the Hose & Tool Holder (fasteners included) Determine desired location for hose holder and screw supplied screw into stud. (If mounting into drywall with no stud available, use supplied drywall anchors.) Attach the 4 screws in the backside of the Hose & Tool holder in the 4 holes. If you want to make the Hose &...

  • Page 10: Operating Instructions

    Operating Instructions Wet/dry vacuuming mode 1. Plug in unit and attach the hose connector into the air inlet. See picture ‘A’ below. Attach extension wand, if desired, to end of hose by pushing it firmly into the hoses and firmly twisting. All hose and tool connections are attached by friction fit method (shoving together and twisting to the right for firm connection).
  • Page 11 Important: a. Unplug the unit when the indicator turns red and wait at least 5 seconds before attempting to resume the appliance. b. Empty the dust canister before vacuuming again. Two copper sensor poles on the probe should be clean, otherwise the sensing function of the probe will be affected.

  • Page 12: Using The Tools

    Blower Mode: This appliance also functions as a blower, sprayer, and shampooer. Attach to the blower hose to the outlet by inserting the gap in the tube plug to the hook of the exhaust and turn 90 degrees. See picture ‘A’ below. Attach extension wand, if desired, to end of hose by pushing it firmly into the hose.
  • Page 13 Accessories: 32 ft flexible crush-proof hose Hose holder Accessory Caddy Mounting Bracket Floor cleaning: (2) Extension wands Use with desired attachment for a longer reach. Wet Pickup Squeegee Floor tool. Multi-surface floor tool Small Tool Cleaning: Crevice tool Upholstery Tool Dusting brush...
  • Page 14 Auto Clean & Inflating: Water Extraction Suction tool. Precision blower tool for detailing Small, medium and large detailing and inflating tools. Spraying & Scrubbing: Mini Turbo Nozzle with Spinning Brushroll Hand Held Sprayer/ Shampooer TOOL USE 11. 32ft Flexible Crush-Proof Hose – Connects to the vacuum on suction side or blow side.
  • Page 15 HOW TO SHAMPOO UPHOLSTERY You may shampoo on upholstery surfaces (like upholstery seats in your car--follow your car’s manufacturer guidelines for shampooing) with the Prolux Lite Wet Dry vacuum by following the instructions below: 1. Attach the hose to the blow or exhaust side of the vacuum.

  • Page 16: Maintenance

    For more scrubbing power you may also use the mini head tool #25. The extraction tool #20 will suck the most water out. Then you’re done and that is how you shampoo your upholstery surfaces with the Prolux Wet Dry Garage vacuum. Cleaning and Maintenance Unit cleaning: Follow the steps below to get your filter, cloth filter and copper probe poles cleaned.
  • Page 17 E. Wash the filters and allow to properly dry before reinstalling G: Clean the two copper poles of the probe Filter Maintenance: From ordinary use the circular filter (not the cloth filter) should be replaced or cleaned once every year or when warning light comes on (and dirt bin is clean).

  • Page 18: Troubleshooting

    Or, use a hanger to dislodge the object. Additional Parts that may be purchased from Prolux Turbo Head with spinning brushroll for carpet cleaning. Replacement hose, additional filters, extension wands, floor tools, crevice tool, duster tool, upholstery tool, mini head, sprayer etc., may also be purchased additionally.

  • Page 19: Warranty Information

    If your appliance fails to operate properly while in use under normal household conditions within the warranty period, please contact your authorized Prolux dealer you purchased the unit from. You may also contact Prolux at the address below. Non-durable parts including, without limitation, filters, accessories, brushes, belts, and electrical parts, which normally require replacement, are specifically excluded from warranty.
