Summary of Contents for Prolux CP360

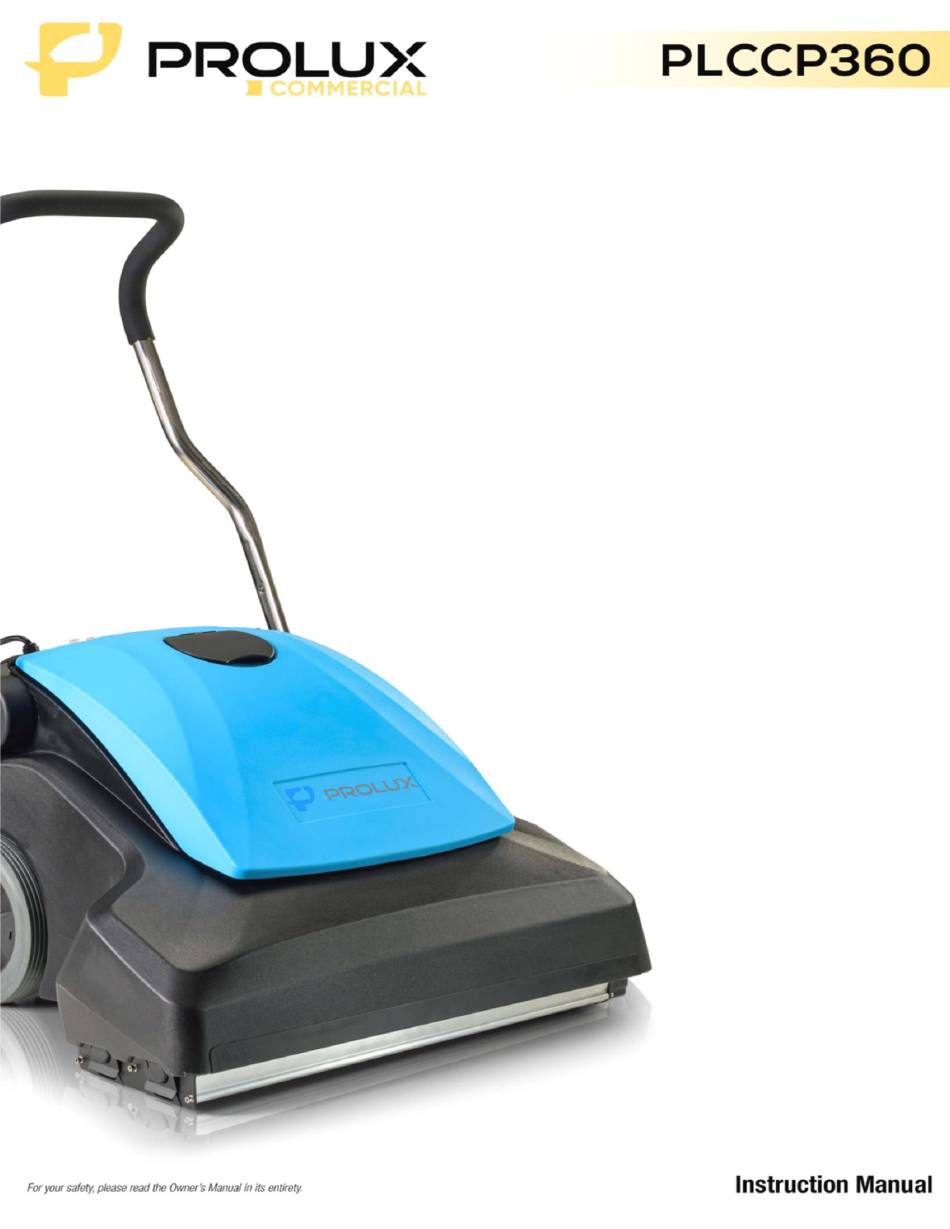

- Page 3 Congratulations on the purchase of your new Prolux CP360 Wide Area Vacuum! Get ready to maximize your cleaning performance with this high-powered time saver! Here’s just a few of the awesome features you can look forward to! ✓ 26” cleaning path means ✓...
-
Page 5: Table Of Contents
Table of Contents Important Safety Instructions………………………………………………6 Specifications……………………………………………………………..…….8 Machine Components………………………………………………….……..9 Unboxing and Assembly………………………………………………….…10 Operating Instructions………………………………………………………11 Storage…………………………………………………………………………...14 Maintenance……………………………………………………………………15 Daily………………………………………………………………………..15 Filter Replacement……………………………………………………15 Brush Roll Replacement…………………………………………….16 Circuit Breaker Resets……………………………………………….17 Troubleshooting……………………………………………………………….18 Warranty Information………………………………………………………..19... -
Page 6: Important Safety Instructions
Important Safety Instructions This machine is intended for commercial use. It is designed exclusively for use on carpeted floors in an indoor environment. A 20 AMP CIRCUIT BREAKER IS REQUIRED FOR PROPER OPERATION! Failure to follow these warnings and instructions may result in electric shock, fire, and/or serious injury. - Page 7 19. Keep hands, feet, and any other body part away from the moving parts of the machine. Do not wear loose-fitting clothing or allow long hair to come into contact with the moving parts of the machine. 20. Do not touch the brushes while the machine is in use. 21.
-
Page 8: Specifications
Specifications Model CP360 Voltage 110v / 60hz Power 2150w Brush Motor 0.5 HP Amps 19.5 Brush Width 26” Cord Length 75 feet Bag Capacity 9.2 gallons Noise 75 decibels Weight 198 pounds... -
Page 9: Machine Components
Machine Components 1. Handle 10. Front Brush Roll 2. Power Cord 11. Rear Brush Roll 3. Handle Adjustment Lever 12. Exhaust Cover 4. Dust Bin Cover 13. Brush Motor Cover 5. Tool Hose Port 14. Rear Wheel 6. Dust Bag 15. -
Page 10: Unboxing And Assembly
Unboxing And Assembly Setting up the CP360 couldn’t be easier! Once the machine is removed from its packaging, simply connect the power cord, plug it in, and you’re ready to vacuum! Some versions may include an optional tool hose accessory kit – let’s take a quick tour of these attachments! 1. -
Page 11: Operating Instructions
Operating Instructions Note: This machine must be used with a 20 amp circuit breaker. 1. Always start by clearing any large debris from the area, such as cups, plastic, rocks, screws, string, or other similar items. 2. Check that a bag is installed in the collection bin, and that the bag is not overfilled. - Page 12 5. Familiarize yourself with the controls. 1. Dust Bin Full Indicator 2. Brush Motor Power Switch 3. Vacuum Motor Power Switch 4. Brush Motor Circuit Breaker 5. Vacuum Motor Circuit Breaker (one per motor) 6. Flip the suction motor power switch to power the vacuum on. Wait until you are ready to begin moving before flipping the brush motor power switch –...
- Page 13 8. For edges, crevices, and other hard to reach places, you can attach the optional tool hose, wand, and accessories to the unit through the tool hose port. When using the tool hose, always turn off the brush motor to prevent damage to the carpet and improve suction performance.
-
Page 14: Storage
Storage 1. Store machine in a cool, dry, indoor environment. 2. The cord can be wrapped around the upper portion of the handle when not in use. You can also detach the pigtail end from the cord and store the cord separately. 3. -
Page 15: Maintenance
Maintenance Before performing any maintenance on this machine, make sure the unit is unplugged, and that all switches are turned to the OFF position. Daily 1. Wipe the machine with a damp cloth. Do not use any cleaning solution on the machine to protect its components. -
Page 16: Brush Roll Replacement
Brush Roll Replacement 1. Check the brush rolls for signs of wear. There is a yellow wear-indicating bristle on each roll. If the working bristles have worn down to the length of the yellow bristle, or if the brush roll is damaged in any way, it will need to be replaced. Always replace the brush rolls in pairs. -
Page 17: Circuit Breaker Resets
Circuit Breaker Resets This machine is equipped with resettable circuit breakers which protect the electronic components. In the event the circuit breaker is tripped during use, turn the machine off completely and unplug it from power. Wait for the machine to cool if any parts feel or appear overheated. -
Page 18: Troubleshooting
Troubleshooting Fault Possible Cause Solution No Power Unit is not plugged in Plug in unit Pigtail not connected to Connect pigtail to extension power cord Power Switch(es) not turned Turn on power switch(es) Circuit Breaker tripped Follow “Circuit Breaker Resets” instructions Loss of Suction at Brush Brush Motor is Off Turn Brush Motor On... -
Page 19: Warranty Information
If a component fails to meet the term of the warranty due to defects in workmanship or materials, Prolux Cleaners will repair or replace the defective component free of charge, including labor according to our flat rate schedule and the Prolux Cleaners Warranty Procedures. - Page 20 1yr Switches 2yr or 500hrs (whichever Upright Vacuums comes first) motor 1yr Electrical Parts 2yr Switches 2yr or 500hrs (whichever Garage Vacuums comes first) motor 5yr Electrical Parts 2yr Switches 2yr or 500hrs (whichever Wet Dry Vacuums comes first) motor 2yr Electrical Parts 1yr Switches 2yr or 700hrs (whichever...
- Page 21 All repair times are subject to the flat rate schedule enclosed in this document. If any operation is not covered in this flat rate schedule, Prolux Cleaners will determine a labor rate when a claim is made based on actual repair times by our own service technicians.
- Page 22 1. Contact the Prolux Cleaners warranty department with the machine information (Serial number, Date of Purchase etc.) 2. If the battery is deemed to be within the warranty period, Prolux Cleaners will arrange a date to inspect and replace (upon inspection approval) the battery with the OEM.
- Page 23 Freight damage is not covered under the Prolux Cleaners warranty policy. Replacement Parts: Prolux Cleaners will not honor any warranty claims for parts, labor, or travel if the replacement part was not purchased through Prolux Cleaners. Prolux cleaners reserves the right to review or modify the above document at any time without specific written or prior notice.
