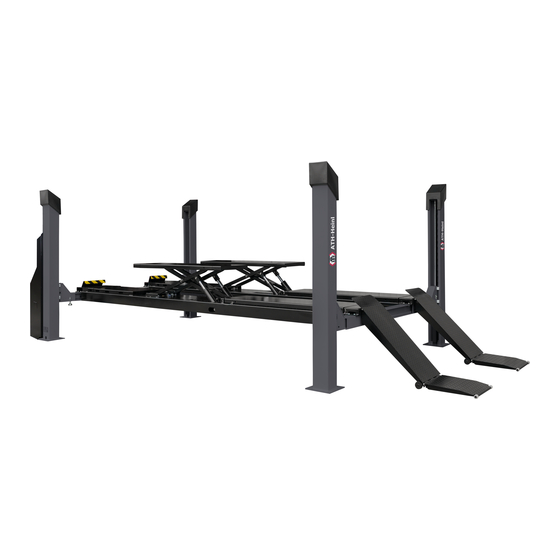

- Page 1 OPERATING INSTRUCTIONS Four Lift 50HA...
-
Page 2: Table Of Contents
Visual inspection (authorised expert) ................. - 48 - NOTES ..........................- 52 - ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 2 -... -
Page 3: Introduction
TIP: Provides more information on functionality and tips for using the device efficiently. Appropriate protective clothing must be worn for all work on the described system. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 4: Description
Description ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 4 -... - Page 5 These prevent the raised platform from lowering by more than 100 mm in the event of any defects. Pneumatic cylinders unlock the device each time it is lowered. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
-
Page 6: Operation
9. Selector switch Switch for selecting main lift or free lift ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 6 -... - Page 7 14. Do not use any paint-dissolving or strong, aggressive detergents ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 7 -...
-
Page 8: Technical Data
If the indicated rated load cannot be lifted, please contact our service team. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 8 -... - Page 9 The load capacity of the lift is reduced at lesser distances. Please consult the manufacturer in such cases, as well as in all other cases not foreseen in these instructions. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
-
Page 10: Scale Drawing
Scale Drawing ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 10 -... - Page 11 ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 11 -...
-
Page 12: Installation
Keep the packaging material out of the reach of children as it may be hazardous. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 13: Delivery Contents
Width Height Weight 900 mm 400 mm 300 mm 40 kg ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 13 -... - Page 14 Store the removed packaging at a collection point inaccessible to children and animals until it has been disposed of. Storage temperature: -25 °C to +55 °C ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 14 -...
-
Page 15: Location
< 1500 m Humidity 50% at 40 °C – 90% at 20 °C ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 15 -... - Page 16 Min. 2,000 mm Ceiling height required Columns - wall the vehicle ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 16 -...
-
Page 17: Fixing
The compressed air maintenance unit must be serviced at regular intervals. The maximum or minimum pressure ensures perfect functioning without any damage. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 18: Hydraulic Connection
Machine assembly must be carried out by a qualified and competent person. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 18 -... - Page 19 Concrete quality: C20/25 Concrete curing time: Min. 20 days ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 19 -...
-
Page 20: Assembly
The guide rails for the jacking beam must be facing inwards ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... - Page 21 Ensure in doing so that the lifting cables are guided over the roller on the slackline protection as shown in the following illustration. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
- Page 22 The final stage is to fix the catch bar to the foot of the lifting columns. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
- Page 23 You will find the associated circuit diagram in Appendix 6.2 of these operating instructions. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
- Page 24 - Now check the position of the columns once again and fit the remaining safety anchors, as described in the next step. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
- Page 25 Fixing with safety anchors: ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 25 -...
-
Page 26: 2.10 Completion Of Work
Check that the guide rails are horizontal (using a spirit level) for both setting options specified above. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... - Page 27 After the set-up process, fill in the attached inspection log. This information is needed if there is a service case ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
- Page 28 A test with a load can be carried out with a final step while continuously observing the lifting equipment and load. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
-
Page 29: Operation
Annual check of the lifting platform by an authorised and trained person ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 29 -... -
Page 30: Basic Information
Moving parts of the machine can catch loose clothing, long hair or jewellery. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 31: Maintenance
Minimum requirement for truck mounting machine: Impact anchor M12 x 100 Compressed air system ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 31 -... -
Page 32: Safety Regulations For Oil
Oil is a combustible medium. Pay attention to possible hazards. Wear oil-resistant protective clothing, such as gloves, goggles, protective clothing, etc. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 33: Notes
Check motor and transmission for function and wear Check welds and construction Visual inspection (according to inspection plan) ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 33 -... -
Page 34: Troubleshooting / Error Display And Solutions
Lifting platform continues to lift Defective button Replace the defective button after releasing the button ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 34 -... - Page 35 Check for damage to the cable Replace the cable ALWAYS USE ORIGINAL PARTS AND ACCESSORIES. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 35 -...
-
Page 36: Maintenance And Service Instructions
Check the water level in the separator (2). Water is drained when the valve (B) is opened. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 36 -... -
Page 37: Disposal
The machine contains some substances that can pollute the environment and cause harm to the human body if not handled correctly. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 38: Eg-/Eu-Konformitätserklärung / Ec-/Eu-Declaration Of Conformity
BY MODIFICATION AND / OR CHANGES TO THE MACHINE, THE CE EXAMINATION IS EXCLUDED WITHOUT LIMITATION AND A LIABILITY SHALL BE EXCLUDED. ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 39: Appendix
PC Pneumatic cylinder EPV2 Electronic pneumatic valve for the free lift ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 39 -... -
Page 40: Electric Circuit Diagram
Electric circuit diagram ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 40 -... - Page 41 Lift button Signal lamp Lowering valve 16A fuse Pneumatic valve 2 ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 41 -...
-
Page 42: 6.3 Hydraulic Circuit Diagram
6.3 Hydraulic circuit diagram ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 42 -... -
Page 43: Warranty Card
ATH-Heinl within 24 hours) Place & Date Signature & Stamp ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 43 -... -
Page 44: Scope Of The Product Warranty
(overload, outdoor installation, technical changes) are excluded from the warranty! ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 45: Inspection Log
Make a note of all the data below Manufacturer & type of mounting materials used: ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... -
Page 46: Installation And Handover Log
Operator name and company stamp Date and operator signature ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 46 -... -
Page 47: Inspection Plan
Condition / mechanical safety device Condition / functions under load Inspection sticker issued ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 47 -... -
Page 48: Visual Inspection (Authorised Expert)
Delete if not applicable Confirmation of operator or a representative with date and signature ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG... - Page 49 Delete if not applicable Confirmation of operator or a representative with date and signature ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
- Page 50 Delete if not applicable Confirmation of operator or a representative with date and signature ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
- Page 51 Delete if not applicable Confirmation of operator or a representative with date and signature ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG...
-
Page 52: Notes
NOTES ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 52 -... - Page 53 ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 53 -...
- Page 54 ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 54 -...
- Page 55 ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 55 -...
- Page 56 ® Copyright ATH-Heinl GmbH & Co. KG, 2019, All rights reserved / Misprints and technical changes reserved / As of: 2019-01 Manufacturer ATH-Heinl GmbH & CO.KG - 56 -...
