x1 Cooee Half Wall
With Power
CAUTION
• Clear open space for install
0
• May need need a sturdy table.
• + 40lbs lift required
1
2 Person Lift
a.
Lay Cooee Wall on table.
PAGE 1
CONTENTS FOR Cooee Three Quarter With Power
x1
Cooee Half Wall
Metal Base
With Power
x4
x16
3/8"
Flange Nut
Flange Nut
Tools you will need:
Two Person
7mm Spanner
Install
HALF WALL
WITH POWER
ASSEMBLY GUIDE
x2
x4
Lockable
Plates
Castors
x8
M4
3/8" Washer
15/16" Spanner
b.
Hang bottom end off the table
to allow for base assembly.
COOEE
x16
M4 Countersunk
Bolts
x4
3/8" 5" Long
Hex Bolt
Quick grip
Min 10"[254mm]
Overhang
Advertisement
Related Manuals for Func COOEE HALF WALL WITH POWER
Summary of Contents for Func COOEE HALF WALL WITH POWER
- Page 1 COOEE HALF WALL WITH POWER ASSEMBLY GUIDE CONTENTS FOR Cooee Three Quarter With Power Cooee Half Wall Metal Base Lockable M4 Countersunk With Power Plates Castors Bolts 3/8” 3/8” Washer 3/8” 5” Long Flange Nut Flange Nut Hex Bolt x1 Cooee Half Wall With Power Tools you will need: CAUTION...
- Page 2 COOEE HALF WALL WITH POWER ASSEMBLY GUIDE Lay metal bases on Cooee Wall. Clamp with quick grip. Ensure Holes are aligned. Torque= 45Ft-Lb Insert 3/8 bolt, Washer and Flange Nut. Clamp with quick grip. Tighten bolts in Ensure all bolts are in the same direction order and repeat to prevent one bolt tighter than the other.

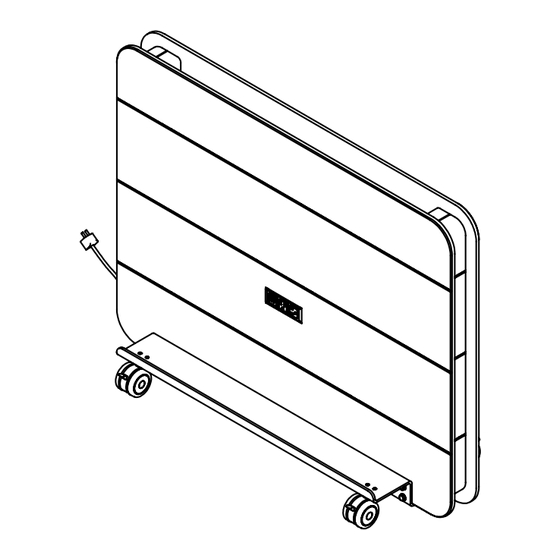

- Page 3 Stand up and ensure Cooee Wall is able to move and castors can be locked. x1 Assembled Cooee Half Wall With Power CAUTION & WARNING STATEMENT. • Ensure wheels are locked and stationary • Disconnect Power when moving. when attaching Accessories.
