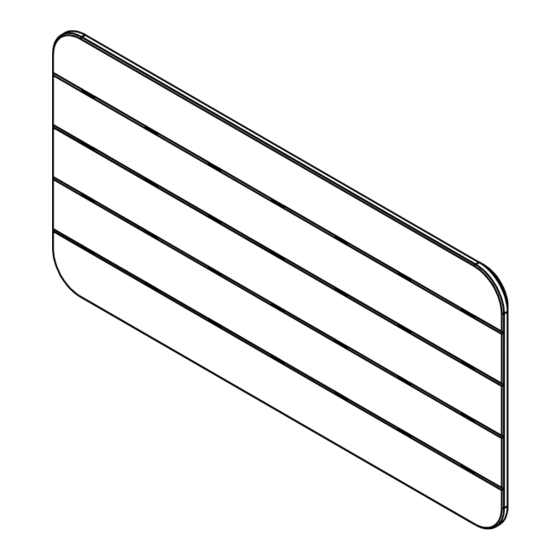

x1 Rectangular
Wall Tile
x1 Square
Wall Tile
x1 Circular
Wall Tile
Prepare your MDF Battens before measurement.
1
Drill holes on MDF Battens suitable for you select-
ed screws (Screws For Different Surfaces).
Two holes per MDF Batten required.
Before drillinling check the surface for obstacles.
PAGE 1
SIZE GUIDE & CONTENTS FOR Wall Tiles
1207mm x 603mm
[47.5in x 23.75in]
x2 MDF Batten
800mm [31.50in]
Tools you will need:
Laser Level
Tape Measure
One Person
Phillips Head
Install
Screw Driver
CAUTION
• Clear open space for install
0
• Installer is responsible for installing MDF Battens
clips to the wall.
• + 6.5lbs lift required
COOEE
WALL TILES
ASSEMBLY GUIDE
603mm x 603mm
[23.75in x 23.75in]
[23.75in x 23.75in]
x2 MDF Batten
400mm [15.75in]
Electric Drill
Suitable Screws For Different
Surfaces
Screws Are Not Included
603mm x 603mm
x2 MDF Batten
400mm [15.75in]
Spirit Level
Advertisement
Related Manuals for Func COOEE WALL TILES
Summary of Contents for Func COOEE WALL TILES
- Page 1 COOEE WALL TILES ASSEMBLY GUIDE SIZE GUIDE & CONTENTS FOR Wall Tiles 603mm x 603mm 1207mm x 603mm 603mm x 603mm [23.75in x 23.75in] [47.5in x 23.75in] [23.75in x 23.75in] x1 Rectangular Wall Tile x2 MDF Batten x2 MDF Batten x2 MDF Batten 400mm [15.75in] 800mm [31.50in]...
- Page 2 COOEE WALL TILES ASSEMBLY GUIDE Insert MDF Battens into Wall Tile. Measure Match Wall Tile spacing onto your solid wall from the floor to the desired height of the (Surface). Ensure MDF Battens are the correct bottom MDF Batten. See drawing above. direction and level.
- Page 3 ASSEMBLY GUIDE GROUND LINE When installing multiple Cooee Wall Tiles, laser level is recommend as the floor or ceiling may not be level. This will warrant any mis-alignment and help in a fast and accurate install. Once MDF Battens are secure on the solid wall, Once Cooee Wall Tile is lifted in place.
