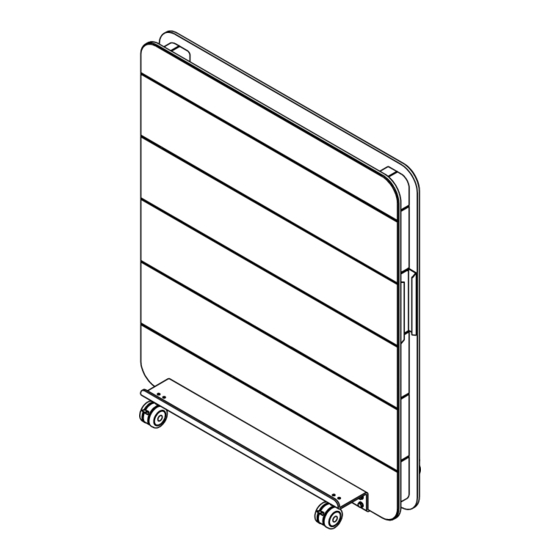

x1 Cooee Three Quarter
Wall
CAUTION
• Clear open space for install
0
• May need need a sturdy table.
• + 50lbs lift required
1
2 Person Lift
a.
Lay Cooee Wall on table.
PAGE 1
CONTENTS FOR Cooee Three Quarter
x1
Cooee Three
Metal Base
Quarter Wall
Plates
x4
x16
3/8"
Flange Nut
Flange Nut
Tools you will need:
Two Person
7mm Spanner
Install
COOEE THREE
QUARTER WALL
ASSEMBLY GUIDE
x2
x4
Lockable
Castors
x8
M4
3/8" Washer
15/16" Spanner
b.
Hang bottom end off the table
to allow for base assembly.
x16
M4 Countersunk
Bolts
x4
3/8" 5" Long
Hex Bolt
Quick grip
Min 10"[254mm]
Overhang
Advertisement
Related Manuals for Func COOEE THREE QUARTER WALL
Summary of Contents for Func COOEE THREE QUARTER WALL
- Page 1 COOEE THREE QUARTER WALL ASSEMBLY GUIDE CONTENTS FOR Cooee Three Quarter Cooee Three Metal Base Lockable M4 Countersunk Quarter Wall Plates Castors Bolts 3/8” 3/8” Washer 3/8” 5” Long Flange Nut Flange Nut Hex Bolt x1 Cooee Three Quarter Wall Tools you will need: CAUTION •...
- Page 2 COOEE THREE QUARTER WALL ASSEMBLY GUIDE Lay metal bases on Cooee Wall. Clamp with quick grip. Ensure Holes are aligned. Torque= 45Ft-Lb Insert 3/8 bolt, Washer and Flange Nut. Clamp with quick grip. Tighten bolts in Ensure all bolts are in the same direction order and repeat to prevent one bolt tighter than the other.
- Page 3 COOEE THREE QUARTER WALL ASSEMBLY GUIDE 2 Person Lift Lift Cooee Wall onto the ground. Stand up and ensure Cooee Wall is able to move and castors can be locked. Assembled Cooee Three Quarter Wall PAGE 3...
