CONTENTS FOR Desking Hood
CAUTION
• Clear area for install.
0
• Open box and check the content.
• Installer is responsible for installing
Desking Hood correctly as per instructions.
1
3.20in
81.3mm
a.
For installing Desking Hood a setup of
Desking screen + 2x Desking Dividers is
required. Before installing Hood check
recommended distance between Desking Screen
and Divider.
PAGE 1
x1 Desking Hood
x1
Cooee Desking Visor

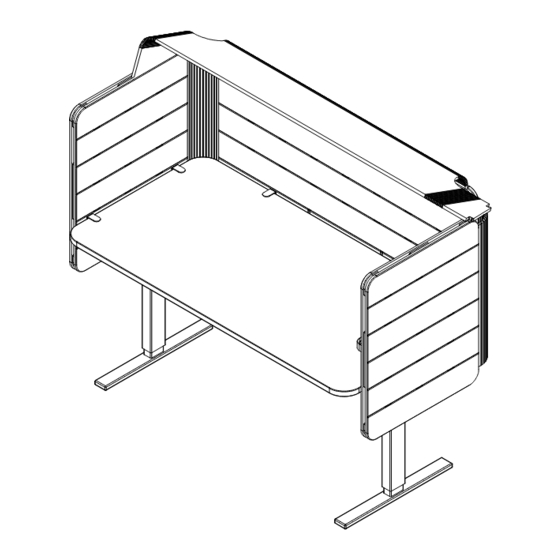

DESKING HOOD
ASSEMBLY GUIDE
Tools you will need:
b.
Desking Screen and Divider has a middle
layer with special shaped cut-outs for fit-
ting Desking Hood and other accessories.
COOEE
One Person
Install
Advertisement
Table of Contents
Related Manuals for Func COOEE DESKING HOOD
Summary of Contents for Func COOEE DESKING HOOD
- Page 1 COOEE DESKING HOOD ASSEMBLY GUIDE x1 Desking Hood CONTENTS FOR Desking Hood Tools you will need: One Person Cooee Desking Visor Install CAUTION • Clear area for install. • Open box and check the content. • Installer is responsible for installing Desking Hood correctly as per instructions.
- Page 2 COOEE DESKING HOOD ASSEMBLY GUIDE CAUTION • Deeper Cut-outs on the Hood has to face outside! Start the install by inserting Desking Hood into the corresponding pre-cut holes located in Desking Screen as shown. Push Desking Hood till it sits firm and secure. Bend Desking Hood inwards at the same time Bend other side of the Desking Hood and rea- bend one end of the hood and insert it...
