x1

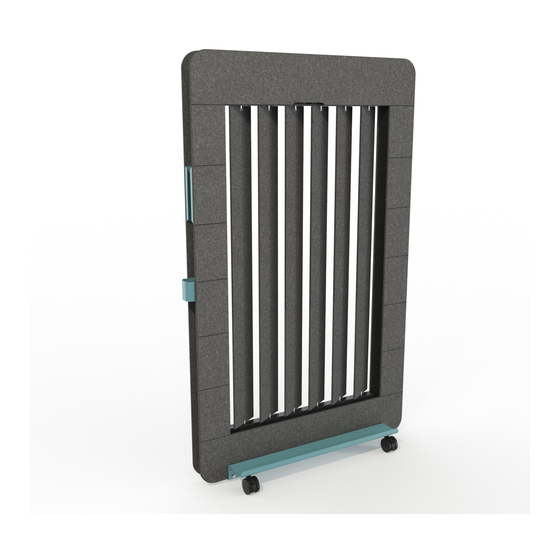

Cooee Louver Wall
CAUTION
• Clear open space for install
0
• May need need a sturdy table.
• + 65lbs lift required
1
2 Person Lift
a.
Lay Louver wall on table.
PAGE 1
CONTENTS FOR Cooee Louver Wall
x1
Louver Wall
Metal Base
Plates
x4
x16
3/8"
Flange Nut
Flange Nut
Tools you will need:
Two Person
7mm Spanner
Install
COOEE
LOUVER WALL
ASSEMBLY GUIDE
x2
x4
Lockable
Castors
x8
M4
3/8" Washer
15/16" Spanner
b.
Hang bottom end off the table
to allow for base assembly.
x16
M4 Countersunk
Bolts
x4
3/8" 5" Long
Hex Bolt
Quick grip
Min 10"[254mm]
Overhang
Advertisement
Related Manuals for Func COOEE LOUVER WALL
Summary of Contents for Func COOEE LOUVER WALL
- Page 1 COOEE LOUVER WALL ASSEMBLY GUIDE CONTENTS FOR Cooee Louver Wall Louver Wall Metal Base Lockable M4 Countersunk Plates Castors Bolts 3/8” 3/8” Washer 3/8” 5” Long Flange Nut Flange Nut Hex Bolt Cooee Louver Wall Tools you will need: CAUTION •...
- Page 2 COOEE LOUVER WALL ASSEMBLY GUIDE Lay metal bases on Louver wall. Clamp with quick grip. Ensure Holes are aligned. Torque= 45Ft-Lb Insert 3/8 bolt, Washer and Flange Nut. Clamp with quick grip. Tighten bolts in Ensure all bolts are in the same direction order and repeat -to prevent one bolt tighter than the other.
- Page 3 COOEE LOUVER WALL ASSEMBLY GUIDE 2 Person Lift Lift Louver Wall onto the ground. Stand up and ensure Louver Wall is able to move and castors can be locked. TO OPEN TO CLOSE Assembled Cooee Louver Wall PAGE 3...
