x1
Cooee Wall
Adjustable Feet
CAUTION
• Clear open space for install
0
• May need need a sturdy table.
• + 65lbs lift required
1
2 Person Lift
a.
Lay Cooee Wall on table.
PAGE 1
CONTENTS FOR Cooee Wall Adjustable Feet
x1
Adjustable Feet
Housing
Tools you will need:
Two Person
Install
COOEE WALL

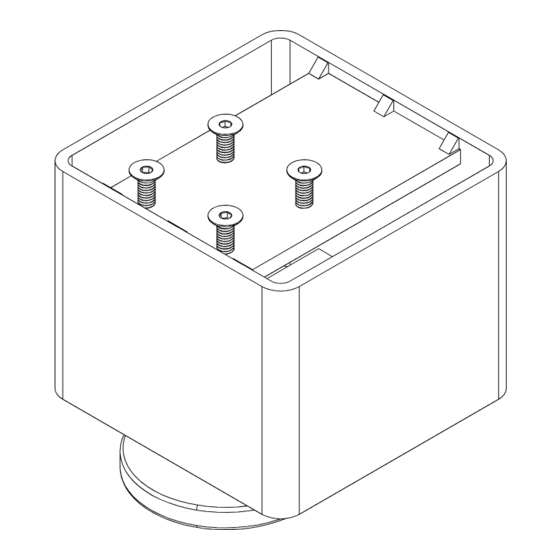

ADJUSTABLE FEET
ASSEMBLY GUIDE
x1
Leveling
Feet
7mm Spanner
Set of Allen Keys
b.
Untighten M4 Flange nuts with 7mm
Spanner. Remove countersunk bolts,
castors and M4 Flange nuts.
Repeat for all bolts
x4
M4 Countersunk
Bolts
Advertisement
Related Manuals for Func COOEE WALL ADJUSTABLE FEET
Summary of Contents for Func COOEE WALL ADJUSTABLE FEET
- Page 1 COOEE WALL ADJUSTABLE FEET ASSEMBLY GUIDE CONTENTS FOR Cooee Wall Adjustable Feet Adjustable Feet Leveling M4 Countersunk Housing Feet Bolts Tools you will need: Cooee Wall Adjustable Feet CAUTION • Clear open space for install Two Person 7mm Spanner Set of Allen Keys •...
- Page 2 Stand up and ensure Cooee Wall is stable. Adjust leveling feet if needed. CAUTION • Cooee Wall Adjustable Feet pack comes as a single Feet. • Mininum of two Adjustable Feet per Cooee wall required. • If combination of x2 Castors + x2 Adjustable Feet required.
