Func COOEE DESKING DIVIDER Assembly Manual

Download this manual

CONTENTS FOR Desking Divider

Cooee

Desking Divider

CAUTION

• Clear area for install.

• Open box and check the content.

• Check the Clamp bracket and if top felt is found

remove it as shown.

• Installer is responsible for installing Cooee Desking

Divider correctly as per instructions.

PAGE 1

Left Option

x1 Desking Divider

Desk Screen

Clamp Bracket

Connector

DESKING DIVIDER

ASSEMBLY GUIDE

Right Option

Tools you will need:

Screw - 9.5mm

[0.375in] Long

*IF TOP FELT PAD

IS FOUND REMOVE IT

FROM CLAMP BRACKET

COOEE

Two Person

Install

5/32in

Allen Key

Need help?

Do you have a question about the COOEE DESKING DIVIDER and is the answer not in the manual?

Page 1 COOEE DESKING DIVIDER ASSEMBLY GUIDE Left Option Right Option x1 Desking Divider CONTENTS FOR Desking Divider Tools you will need: Two Person Install 5/32in Screw - 9.5mm Cooee Desk Screen Clamp Bracket Allen Key [0.375in] Long Desking Divider Connector CAUTION •...

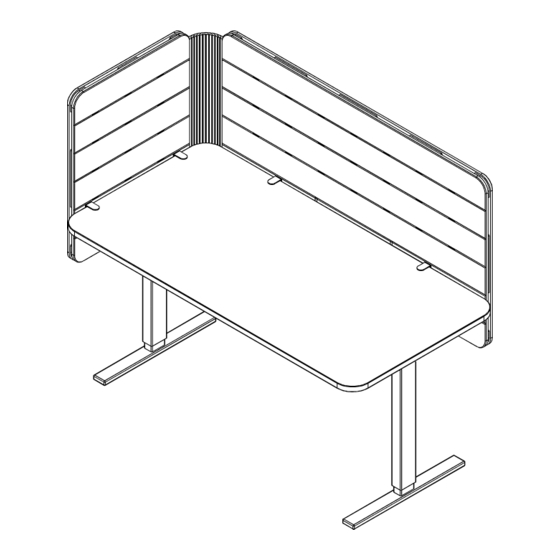

Page 2 Insert Clamp Brackets into position, tighten the screws using 5/32in Allen Key and ensure mount is straight. Cooee Desking Divider is an universal part Select your preferal side and mount Cooee and can be mounted as a left or right Desking Divider.
Page 3 COOEE DESKING DIVIDER ASSEMBLY GUIDE 3.20in 81.3mm If Desk Screen Connector will be in use Desking Divider has a middle layer with follow the recommended distance between special shaped cut-outs for fitting Desking Screen and Divider. Desking Conector and other accessories. Insert Desking Connector into the Bend Desking Connector and reapeat same corresponding pre-cut holes located...
