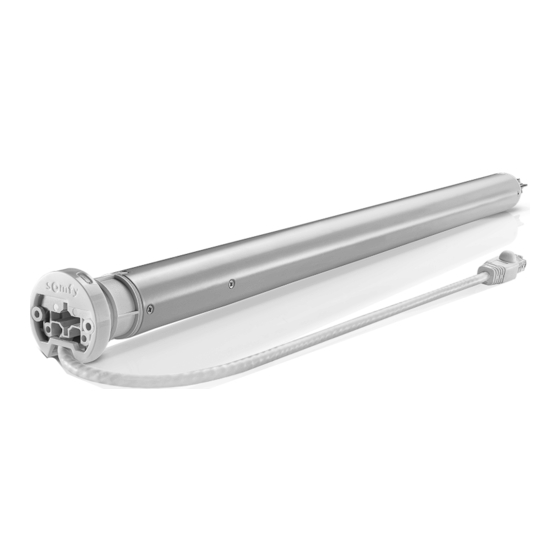

SOMFY Sonesse 30 PoE Programming Manual
  1. Manuals
  2. Brands
  3. SOMFY Manuals
  4. Engine
  5. Sonesse 30 PoE
  6. Programming manual
SOMFY Sonesse 30 PoE Programming Manual

SOMFY Sonesse 30 PoE Programming Manual

Power over ethernet (poe) motor web interface
Hide thumbs Also See for Sonesse 30 PoE:
Table of Contents

Advertisement

Quick Links

Download this manual
PROGRAMMING GUIDE
POWER OVER ETHERNET (PoE)
MOTOR WEB INTERFACE

Advertisement

Table of Contents
loading

Related Manuals for SOMFY Sonesse 30 PoE

Summary of Contents for SOMFY Sonesse 30 PoE

  • Page 1 PROGRAMMING GUIDE POWER OVER ETHERNET (PoE) MOTOR WEB INTERFACE...

  • Page 2: Table Of Contents

    PROGRAMMING GUIDE SOMFY PoE MOTOR WEB INTERFACE V E R S I O N 1 . 0 A U G U S T 2 0 2 3 P r e p a r e d b y P R O J E C T S E R V I C E S...

  • Page 3: Introduction

    This guide discusses the programming of motors with the onboard web interface. For questions or assistance please contact technical support: (800) 22-SOMFY (76639) technicalsupport_us@somfy.com How should this Guide be used? This guide is intended to be used as a reference manual.

  • Page 4: Overview

    PoE technology power and control from industry-common network switches. This motor supports both Somfy Synergy™ API and CoAP Digital Building API protocols and is compatible with Power over Ethernet Network Switches IEEE 802.3at (PoE+) Type2 (30W) or higher.

  • Page 5: Installation

    POWER OVER ETHERNET(POE) STANDARDS POWER PER CLASS IEEE EXTENSION TYPE SOMFY MOTORS DEVICE (W) (Power Source Equip.) IEEE 802.3at / PoE+ Sonesse® 30 PoE 1.5Nm B A S I C W I R I N G F O R O P E R A T I O N...

  • Page 6: Using Motor Labels

    U S I N G M O T O R L A B E L S Each Somfy PoE motor is supplied with four labels that include motor information to connect to motors. The label includes a four-digit PIN code for the motor and will be used to log in to the motor.

  • Page 7: Commissioning

    To configure or adjust PoE motors via the onboard web interface, follow the steps below: 1. OPEN a web browser to NAVIGATE to the SOMFY PoE WebGUI 2. ENTER the PoE motor IP address or the Host name in the address bar NOTE: Motor info entered must start with https:// Example: https://192.168.0.101...

  • Page 8: Set The Rotation

    Settings - Set the Rotation 1. SELECT “Set the rotation” 2. PRESS & HOLD the UP or DOWN button to move the motor until the button is released PRESS & RELEASE the UP or DOWN button to move the motor in small increments 3.
  • Page 9 7. PRESS & HOLD the UP or DOWN button to move the motor in the direction of the lower limit DISABLE “Hold to Move” 8. PRESS the UP or DOWN button to move the motor in the direction of the lower limit 9.
  • Page 10 Configuration - Set Preset Positions PoE motors have 16 available preset positions from 0 to 100%. To set preset positions, follow the steps below: 1. SELECT “Configuration” 2. SELECT “Set preset positions” 3. SELECT “Modify” to modify a saved position SELECT “Add a preset position,”...
  • Page 11 Configuration - Advanced Settings - Speed PoE motors have up and down speed settings that are adjustable by .25 rpm increments. To adjust the up and down speeds, follow the steps below: 1. SELECT “Configuration” 2. SELECT “Advanced settings” 3. SELECT “Speed” Examples: 25.00 rpm (default) 4.
  • Page 12 To reset the Soft start - Soft stop settings to default, SELECT the individual ramp durations labeled “default” in the dropdown or SELECT “Reset speeds and ramps to factory default” to reset all speed and soft start - soft stop settings. 8.

  • Page 13: Control The Motor

    Configuration - Group Addresses PoE motors can be assigned to 16 group addresses. Group addresses are friendly names associated to a Group #. If adding multiple motors to the same group, ensure the group names are identical for each motor. Group names are case sensitive and have a 24-character limit. To add or edit group addresses for an individual motor, follow the steps below: 1.

  • Page 14: Appendix

    APPENDIX F I R M W A R E U P D A T E [ A P P E N D I X A ] S E T F A C T O R Y D E F A U L T The Set factory default function will remove all saved motor parameters and settings, as well as remove the replicated security key.
  • Page 15 About Somfy® For over 50 years, Somfy has been pioneering innovative motorization and automated solutions for window coverings and exterior shading products. With comfort, ease of use, security, and sustainability in mind, our seamless and connected solutions are designed to help people make the move to living spaces impactful for humans and with a reduced impact on nature.
