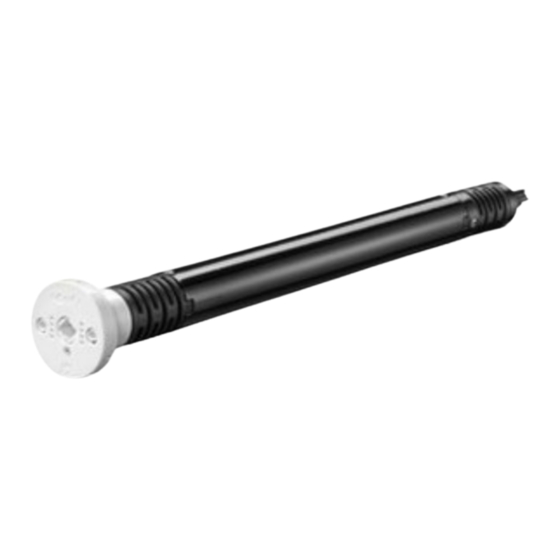

Sonesse 30 RTS Programming Instructions
Stripe = Positive
White = Negative
Power Supply
Frequency bands
Torque
Speed
Safety level
Operating Temperature
Protective rating
FCC Compliance
This device complies with Part 15 of the FCC rules. Operating is subject to the following two
conditions
[1] This device may not cause harmful interface, and
[2] This device must accept any interference received, including interference that may cause
undesired operation.
24V DC
433.42 MHz
2 Nm
6—28 RPM (Adjustable)
III
32F—140F
IP 30 (For indoor use only)
18-2204-SRF

Advertisement

loading

Related Manuals for SOMFY Sonesse 30 RTS

Summary of Contents for SOMFY Sonesse 30 RTS

  • Page 1 Sonesse 30 RTS Programming Instructions Stripe = Positive White = Negative Power Supply 24V DC Frequency bands 433.42 MHz Torque 2 Nm Speed 6—28 RPM (Adjustable) Safety level Operating Temperature 32F—140F Protective rating IP 30 (For indoor use only) FCC Compliance This device complies with Part 15 of the FCC rules.

  • Page 2: Installation Notes

    Installation notes Make sure that the program button on the motor head is positioned in the instal- lation brackets so it is easily accessible. Ideally on an open roll installation, the motor head button should be facing downwards towards the floor so you can see it.
  • Page 3 Programming (Follow steps 1—5) [1] Initial setup A) Connect your proper power source. If you are powering the motor via a transformer or hardwiring, connect the wires according to your state and local wires codes. B) Your motor has been programmed with limits. You will need to pair your motor to your remote. Please go to section [6] Pairing.
  • Page 4 Programming (Continued) [4] Setting limits 1) Move the shade to your desired upper limit. You must hold a direction in order for your shade to move right now. 2) Press both MY and DOWN at the same time until the shade starts to lower then release both buttons.
  • Page 5 Adjusting end limits [7] Adjusting UPPER limit 1) Press and release UP. Let the shade go to its CURRENT upper limit and stop. 2) Hold both UP and DOWN at the same time for a jog. 3) Adjust the shade with the UP or DOWN button to your new limit. The shade will only move when you HOLD a direction.

  • Page 6: Troubleshooting Section

    Troubleshooting Section What is happening Possible fix Motor does not respond Reverse the wiring on the motor. Shade is skipping / clicking while it travels 1) The motor drive is not put into the tube correctly. Remove the motor and ensure the drive is put in the correct orienta- tion 2) The shade is too tight in the brackets.
