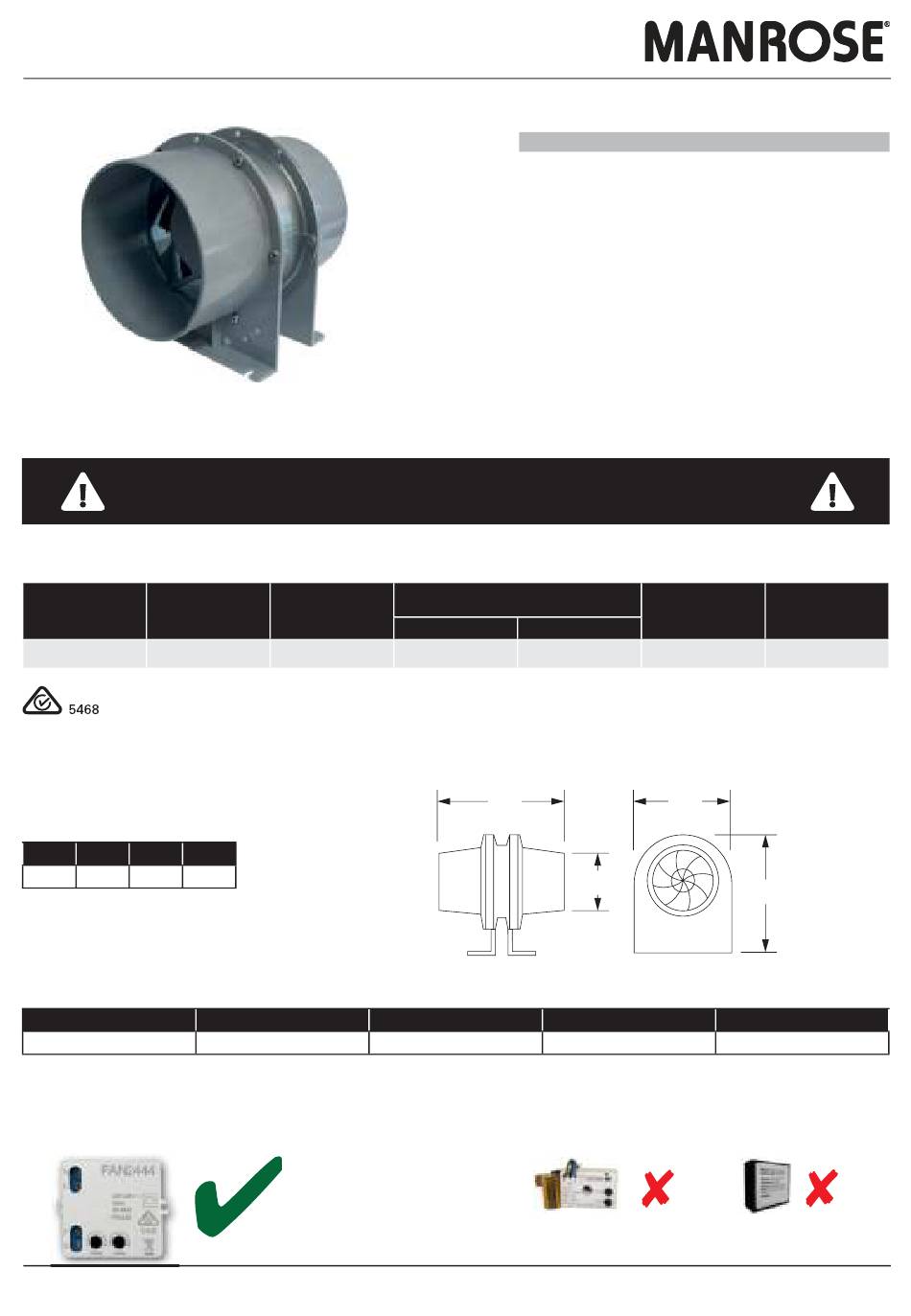

Manrose FAN0085 Installation Instructions

Hyper150 EC Axial Inline Extraction Fan
To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.

SPECIFICATIONS

Duct
Fan Watts
(mm)
150
Compliance: AS/NZS60335-2.80:2016

DIMENSIONS

A B C
200 143 170
Note: Grille cut-out size is a nominal diameter for a circular cut-out.

TECHNICAL

Supply
110-240V AC, 50Hz

FAN TIMER SELECTION

Please use the FAN2444 fan timer model shown
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz
Thank you for purchasing this quality EC axial inline extraction fan.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fi re, electrical shock and personal injury.
Max. Max.
Fan Pressure
(W) (Pa)
18 91
D
185
Max. Operating Temp
45°C
Specifi cations are subject to change without notice

Description

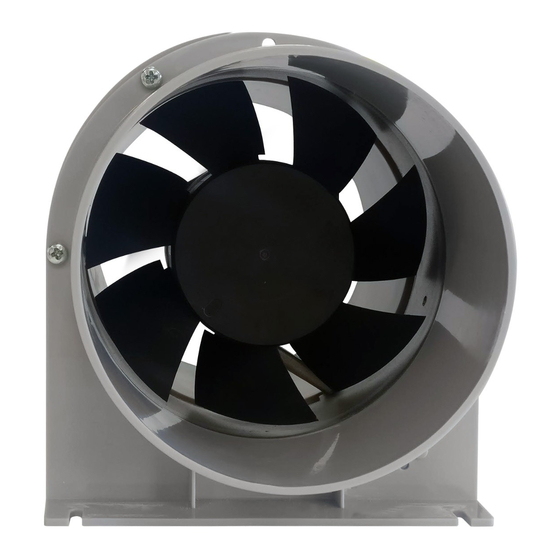

EC Axial Inline Extraction Fan
This 150mm diameter fan is suitable for straight forward domestic bathroom
ventilation applications.
The high speed brushless EC motor, fi tted with integral ball bearings, mean a
long service life and a quieter operation. These fans are generally mounted in
the ceiling cavity to exhaust air from interior vents to the outside. The compact
design, low profi le, ease of mounting and IP rating to IP44 ensure a straight
forward installation.
Suitable for extracting air from toilets and bathrooms. Ideal for the supply of fresh
air to stale enclosed areas.
Free Air Fan Performance
(l/s) (m 3 /hr)
105 380
A
B
IP Rating Motor Housing
IP44 Die cast aluminium
Do not use old model FAN2444 (with resistor) or FAN0372 fan timers
Order Code
FAN0085
Specific
Sound
Fan Power
dB(A)
(W/l/s)
0.17 38
C
D
Impeller & Outer Rotor
PBT plastic
