To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
CONTENTS
TECHNICAL DATA - Full Speed
Product Code
Motor
Supply
Wattage
Fan Performance
Max. Pressure
Housing
Impeller & Outer Rotor
Max. Operating Temp
IP Rating
Compliance
DIMENSIONS
Product
A
Hyper150 EC
200
Thank you for purchasing this quality EC inline axial duct fan.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fire, electrical shock and personal injury.
FAN7500
EC motor
110-240V AC, 50/60Hz
18W
105 l/s, 380m
/hr (free air performance)
3
91Pa
Die cast aluminium
PBT plastic
45ºC
IP44
AS/NZS60335.2.80
B
C
D
143
170
185

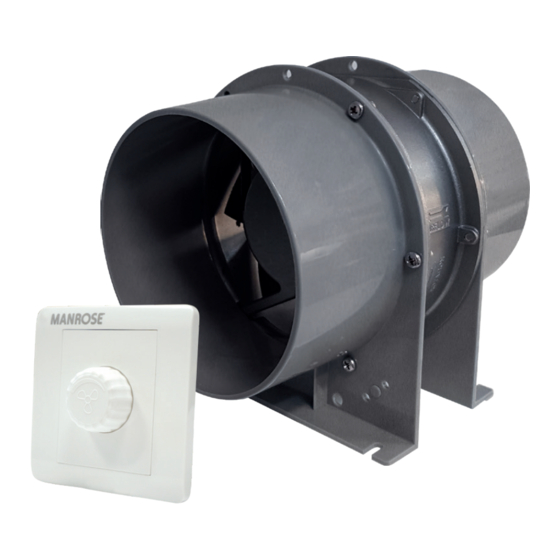

EC Inline Axial Duct Fan Kit
Description
EC Inline Axial Duct Fan Kit
This 150mm diameter EC inline axial duct fan is suitable for straight forward
domestic bathroom ventilation applications.
The high speed brushless EC motor, fitted with integral ball bearings, mean a
long service life and a quieter operation. These fans are generally mounted in
the ceiling cavity to exhaust air from interior vents to the outside. The compact
design, low profile, ease of mounting and IP rating to IP44 ensure a straight
forward installation.
Suitable for extracting air from toilets and bathrooms. Ideal for the supply of fresh
air to stale enclosed areas.
PERFORMANCE CURVE - Full Speed
100
90
80
70
60
50
40
30
20
10
0
l/s
0
m
/hr
3
0
50
A
HYPER150 EC
Switching
Variable Speed Control
20
40
60
80
100
150
200
250
300
C
B
Product Code
FAN7500
100
120
350
400
450
D
Advertisement
Related Manuals for Manrose FAN7500
Summary of Contents for Manrose FAN7500

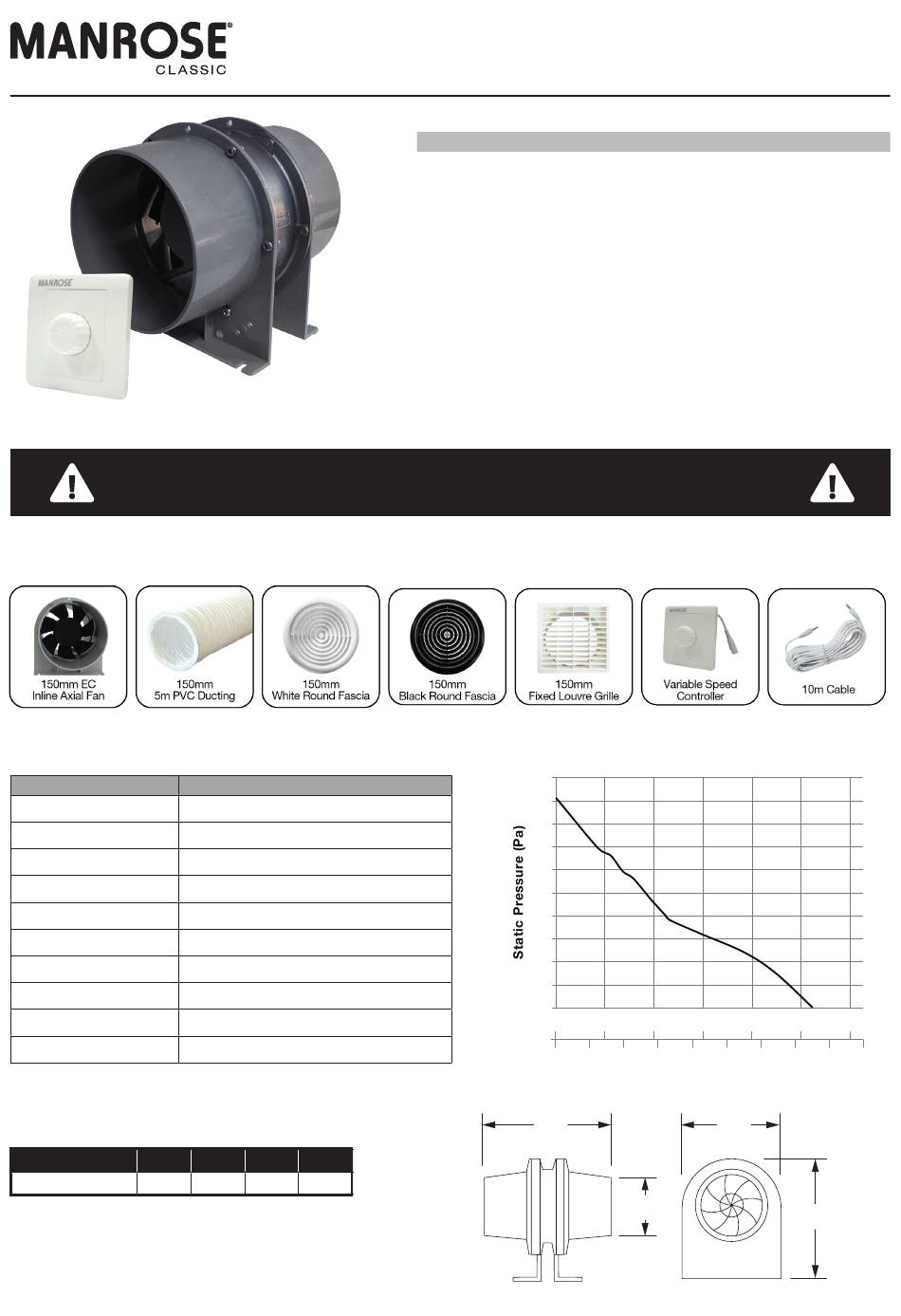

- Page 1 Product Code EC Inline Axial Duct Fan Kit Variable Speed Control FAN7500 This 150mm diameter EC inline axial duct fan is suitable for straight forward domestic bathroom ventilation applications. The high speed brushless EC motor, fitted with integral ball bearings, mean a long service life and a quieter operation.
- Page 2 HYPER150 EC EC Inline Axial Duct Fan Kit EC INLINE AXIAL DUCT FAN INSTALLATION AND ELECTRICAL CONNECTION MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN IMPORTANT This EC inline axial duct fan must be installed by a registered electrician and its installation and connection to the power supply must comply with all current wiring rules and regulations including the latest edition of AS/NZS3000 .
- Page 3 Internal grille External grille Specifications are subject to change without notice Manrose is proudly distributed by Simx Limited PO Box 14 347, Panmure, Auckland, NZ. Technical Support (09) 259 1662 e: sales@simx.co.nz | www.manrose.co.nz | www.simx.co.nz PUB1746 2211...
- Page 4 Simx Warranty Information In this warranty: We means Simx; You means the consumer of the Goods Supplier means the authorised distributor or retailer that sold you the Goods in New Zealand or Australia; and Goods means the Simx product accompanied by this warranty and purchased in New Zealand or Australia. The benefits provided to you under the following warranty are in addition to any other rights and remedies available to you under the law: 1.
