Manrose FAN0090 Installation Instructions Manual

Inline Extraction Fan - 150mm
To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.

SPECIFICATIONS

Duct
Fan Type
(mm)
150
Compliance: AS/NZS60335-2.80:2016
DIMENSIONS
A B C D E
187 153 109 150 27
TECHNICAL
Supply
220-240V AC, 50Hz
Installation Instructions
sales@simx.co.nz | www.manrose.co.nz
Thank you for purchasing this quality 150mm inline extraction fan.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fire, electrical shock and personal injury.
Max.
Fan Watts
(W)
Axial 25
Sound Level Max. Operating Temp
40 dB(A) 40°C
Specifications are subject to change without notice
Description

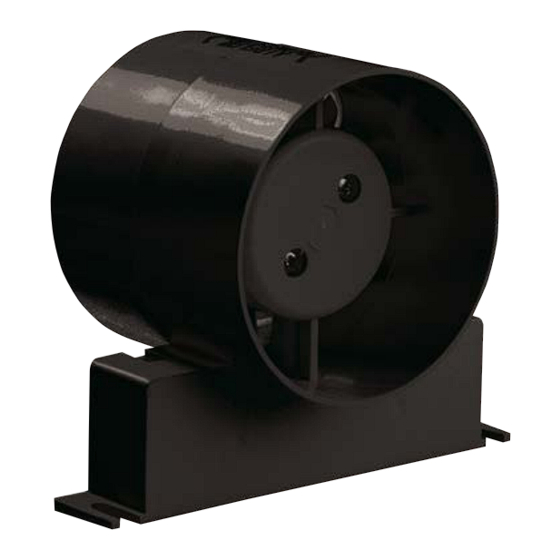

Inline Axial Fan
This Manrose inline extraction fan kit is designed for ventilation
within a shower cubicle.
Max. Free Air Fan Performance
Fan Pressure
(l/s)
(PA)
60 87
A
A
B B
IP Rating
IP44
Switching Product Code
Standard FAN0090
Timer FAN0091
Specific
Fan Power
(m /hr)
3
(W/l/s)
313
C
C
D
D
E E
Distributed by Simx Limited
0.29
Page 1
