Manrose HYPER150 EC Manual

To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
TECHNICAL DATA
Order Code
Motor
Supply
Wattage
Fan Performance
Max. Pressure
Housing
Impeller & Outer Rotor
Max. Operating Temp
IP Rating
Compliance
DIMENSIONS
Product A
Hyper150 EC 200
EC Inline Axial Duct Fan with App Control
Thank you for purchasing this quality EC inline axial duct fan.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fi re, electrical shock and personal injury.
FAN0085
EC motor
110-240V AC, 50/60Hz
18W
105 l/s, 380m 3 /hr (free air performance)
91Pa
Die cast aluminium
PBT plastic
45ºC
IP44
AS/NZS60335.2.80
B C D
143 170 185
Description
EC Inline Axial Duct Fan

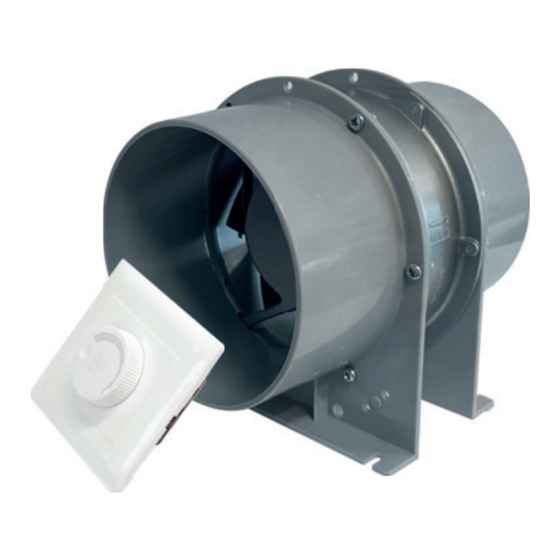

This 150mm diameter EC inline axial duct fan is suitable for straight forward
domestic bathroom ventilation applications.
The high speed brushless EC motor, fi tted with integral ball bearings, mean a
long service life and a quieter operation. These fans are generally mounted in
the ceiling cavity to exhaust air from interior vents to the outside. The compact
design, low profi le, ease of mounting and IP rating to IP44 ensure a straight
forward installation.
Suitable for extracting air from toilets and bathrooms. Ideal for the supply of fresh
air to stale enclosed areas.
100
90
80
70
60
50
40
30
20
10
0
l/s 0
3
m /hr
0 50
A
HYPER150 EC
20 40 60 80
100 150 200 250 300
C
B
Order Code
FAN7000
100 120
350 400 450
D
