Inline Extraction Fan Kits - 150mm Low Profi le
To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
SPECIFICATIONS
Max.
Duct
Fan Type
Fan Watts
(mm)
(W)
150
EC Axial
18
Compliance:
AS/NZS60335-2.80:2016
DIMENSIONS
A
B
C
200
143
170
Note: Grille cut-out size is a nominal diameter for a circular cut-out.
TECHNICAL
Supply
220-240V AC, 50Hz
Die cast aluminium
FAN TIMER SELECTION
Please use the FAN2444 fan timer model shown
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz

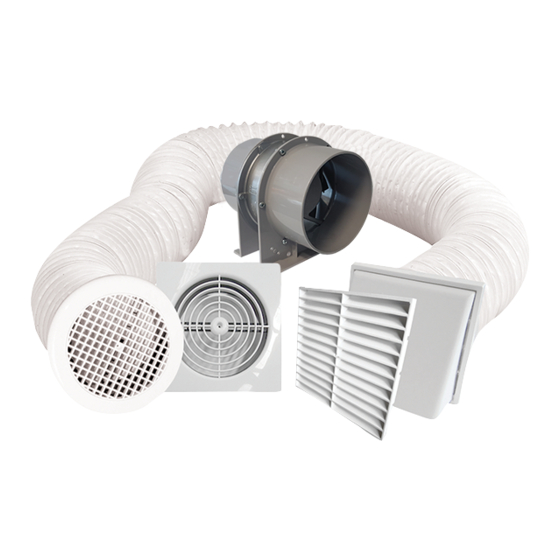

Thank you for purchasing this quality 150mm inline extraction fan kit.
Thank you for purchasing th
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fi re, electrical shock and personal injury.
Max.
Fan Pressure
(PA)
91
D
185
Motor Housing
Impeller & Outer Rotor
PBT plastic
Specifi cations are subject to change without notice
Description
Standard Switching
Timer
This Manrose inline extraction fan kit is designed for ventilation within a shower
cubicle. The high performance fan provides high levels of extraction and enables
additional ducting to be added to this system.
Free Air Fan Performance
Fan Power
(l/s)
(m
3
/hr)
105
380
A
Ducting
5m Flexible PVC
Do not use old model FAN2444 (with resistor) or FAN0372 fan timers
Specific
Interior Grille
(W/l/s)
Round White
0.17
and
Square White
C
B
Order Code
FAN0618
FAN0619
Exterior Grille
Weatherproof Cowl White
and
Fixed Louvre White
D
Page 1
Distributed by Simx Limited
Advertisement
Table of Contents
Related Manuals for Manrose FAN0618
Summary of Contents for Manrose FAN0618
- Page 1 FAN0618 Timer FAN0619 This Manrose inline extraction fan kit is designed for ventilation within a shower cubicle. The high performance fan provides high levels of extraction and enables additional ducting to be added to this system. Thank you for purchasing this quality 150mm inline extraction fan kit.
- Page 2 50 l/s Metres of Ducting Metres of Ducting No. of No. of Bends Bends Fan Selection Hyper150 EC Mixflo 150 Blue Jet Installation Instructions Page 2 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited...
- Page 3 • This product contains recyclable materials. Do not dispose of this product as unsorted council waste. Please contact your local council for the nearest collection point. Installation Instructions Page 3 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited...
- Page 4 Diagram 1 BROWN LIVE GREEN/YELLOW EARTH BLUE NEUTRAL Diagram 2 TIMER LIGHT SWITCH FAN2444 LIVE NEUTRAL FLUSH BOX EARTH (WALL MOUNTED) Installation Instructions Page 4 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited...
- Page 5 NOTE: Make sure wherever possible to keep the duct running in a straight line as this will improve the performance of the fan. Installation Instructions Page 5 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited...
- Page 6 9. Make the electrical connection as follows: Wiring of Standard Switching model FAN0618 (Diagram 1). The fan can be connected to the light switch so that the fan will start when the light is switched on, or a dedicated fan switch (not supplied).
- Page 7 Simx Warranty Information In this warranty: We means Simx; You means the consumer of the Goods Supplier means the authorised distributor or retailer that sold you the Goods in New Zealand or Australia; and Goods means the Simx product accompanied by this warranty and purchased in New Zealand or Australia. The benefi...
