Manrose FAN0148 Installation Instructions

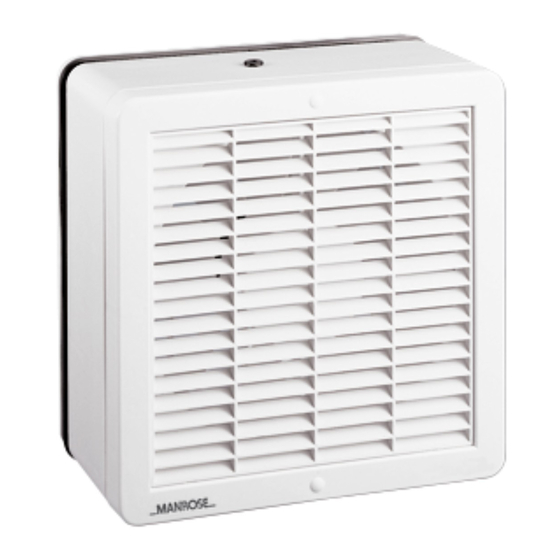

150mm Window and Through Wall Auto Shutter Fan
Please ensure these instructions are read thoroughly before commencing installation
and that all documentation is left with the home owner on completion of installation
CAUTION
• Before use, please check that the supply voltage and that of the fan are the same (see product rating label).
• All wiring must comply with national wiring rules and regulations.
• Any changes or modifi cations made or attempted to this product, without the prior written approval of the manufacturer, will void any and all
stated warranties.
• Do not install within a shower cubicle (use our shower fans) or anywhere else where there is a high risk of the fan being sprayed with water.
• If your fan is equipped with auto shutters it will be fi tted with a thermally activated mechanism that opens and closes the shutters. When the
unit is turned on/off the automatic shutters will take approximately 45 seconds to respond.
SPECIFICATIONS
Supply : 220V AC, 50Hz
Free Air Performance: 87 l/s, 313m³/hr
IMPORTANT
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety. This fan should be installed by a qualifi ed electrician.
• Children should be supervised to ensure that they do not play with the appliance.
• This fan is for window and wall mounting only
• When fi tting through an external wall, an external grille must be fi tted at all times.
• The fan must be permanently connected to a suitable electricity supply by way of the cable provided. This should be via a permanent
connection unit in accordance with the national wiring rules.
• Isolate the mains supply before removing the guard, making any electrical connections or performing maintenance.
• Do not connect fan to power before duct work is in place.
• This fan is intended for indoor general ventilating use only. Use other than as described may result in electric shock or injury to persons.
• Do not insert or allow foreign objects into fan or duct connected to fan.
• Do not allow liquids to contact the fan or the fan housing as this may cause electric shock and/or fi re hazard. Do not place objects on the fan
housing as this may cause fi re hazard or electric shock or injury. Do not puncture fan housing with screw, bolts, etc.
• Precautions must be taken to avoid the back-fl ow of gases into the room from the open fl ue of gas or other open-fi re appliances when
mounted in outside windows or walls, in this case, a check valve is necessary.
• Do not operate in temperatures lower than -10ºC, or above 40ºC.
• Do not use where fl ammable, hazardous, or explosive materials and/or gases are present.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed person in order to avoid a
hazard.
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz
Specifi cations are subject to change without notice
Page 1
Distributed by Simx Limited
