Inline extraction fan kits - 125mm low profi le

Advertisement

Inline Extraction Fan Kits - 125mm Low Profi le
To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
SPECIFICATIONS
Duct
Fan Type
(mm)
125
Centrifugal
Compliance:
AS/NZS60335-2.80:2016
DIMENSIONS
Cut-Out Size
A
B
C
140
125
155
125
Note: Grille cut-out size is a nominal diameter for a circular cut-out.
E
A
B
AIRFLOW
TECHNICAL
Supply
Sound Level
220-240V AC, 50Hz
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz
Thank you for purchasing this quality 125mm inline extraction fan kit.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fi re, electrical shock and personal injury.
Max.
Max.
Fan Watts
Fan Pressure
(W)
(Pa)
20
120
D
E
195
258
C
D
Max. Operating Temp
45 dB(A)
50°C
Specifi cations are subject to change without notice
Description
Standard Switching
Timer

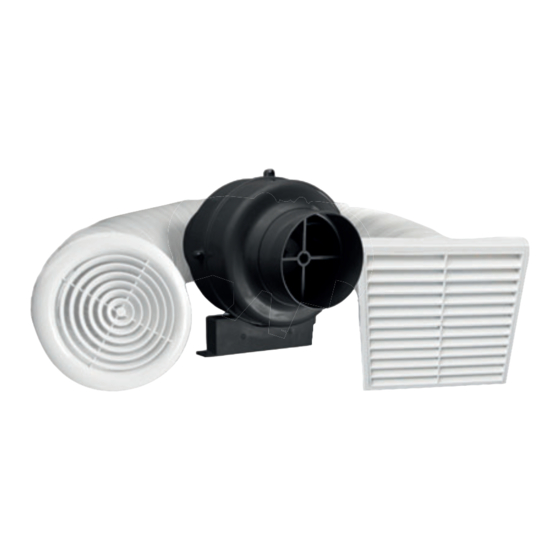

This Manrose inline extraction fan kit is designed for ventilation within a shower
cubicle. The high performance fan provides high levels of extraction and enables
additional ducting to be added to this system.
Specific
Free Air Fan Performance
Fan Power
3
(l/s)
(m
/hr)
39
140
Motor Housing
Impeller & Outer Rotor
Interior Grille
(W/l/s)
Round White/
0.65
Square White
Ducting
4m Flexible PVC
Product Code
FAN0616
FAN0617
Exterior Grille
Weatherproof Cowl White/
Fixed Louvre White
Page 1
Distributed by Simx Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAN0616 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manrose FAN0616

  • Page 1 FAN0616 Timer FAN0617 This Manrose inline extraction fan kit is designed for ventilation within a shower cubicle. The high performance fan provides high levels of extraction and enables additional ducting to be added to this system. Thank you for purchasing this quality 125mm inline extraction fan kit.
  • Page 2: Regulations And Standards

    50 l/s Metres of Ducting Metres of Ducting No. of No. of Bends Bends Fan Selection Hyper150 EC Mixflo 150 Blue Jet Installation Instructions Page 2 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited...
  • Page 3 • This product contains recyclable materials. Do not dispose of this product as unsorted council waste. Please contact your local council for the nearest collection point. Installation Instructions Page 3 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited...
  • Page 4: Electrical Connections

    Fig 1 Live Neutral 1 LIVE 2 NEUTRAL Fig 2 Live Neutral Recommended mounting position for the timer model Rotary switch Installation Instructions Page 4 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited...
  • Page 5 9. Make the electrical connection as follows: Wiring of Standard Switching model FAN0616 (Fig. 1). The fan can be connected to the light switch so that the fan will start when the light is switched on, or a dedicated fan switch (not supplied).
  • Page 6: Typical Installation

    TYPICAL INSTALLATION Flexible duct inline extraction fan screwed to the joist Internal grille External grille Installation Instructions Page 6 Specifi cations are subject to change without notice enquiry@manrose.co.nz | www.manrose.co.nz Distributed by Simx Limited PUB0145 2105...
  • Page 7: Warranty Information

    Supplier means the authorised distributor or retailer that sold you the Goods in New Zealand or Australia; and Goods means the Manrose product accompanied by this warranty and purchased in New Zealand or Australia. The benefi ts provided to you under the following warranty are in addition to any other rights and remedies available to you under the law: 1.
