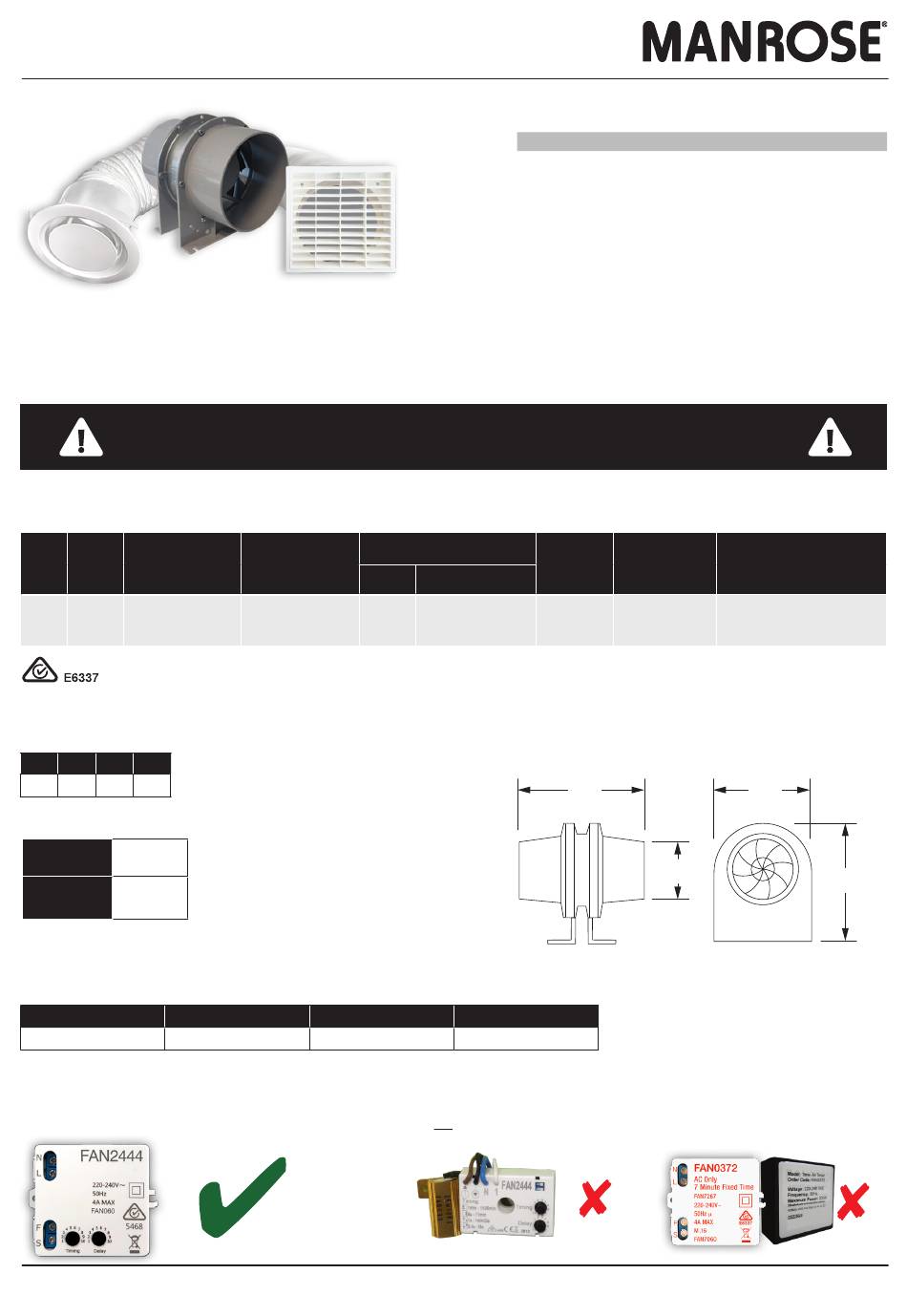

Manrose FAN0101 Installation Instructions Manual

Inline Extraction Fan Kits - 150mm Std Profile
To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
SPECIFICATIONS
Max.
Duct
Fan Type Fan Watts
(mm)
(W)
150 EC Axial 18
Compliance: AS/NZS60335-2.80:2016
DIMENSIONS
A B C D
200 143 170 185
Note: Grille cut-out size is a nominal diameter for a circular cut-out.
Cut-out Size
195
Internal
Cut-out Size
160
External
TECHNICAL
Supply
220-240V AC, 50Hz Die cast aluminium
FAN TIMER SELECTION
Please use the FAN2444 fan timer model shown
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz
Thank you for purchasing this quality 150mm inline extraction fan kit.
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fire, electrical shock and personal injury.
Max.
Fan Pressure
(PA)
91
Motor Housing Impeller & Outer Rotor
PBT plastic
Specifications are subject to change without notice
Description
Standard Switching
Timer
This Manrose inline extraction fan kit is designed for ventilation within a shower
cubicle. The high performance fan provides high levels of extraction and enables
additional ducting to be added to this system.
Free Air Fan Performance
Fan Power
(l/s) (m /hr)
3
105 380
Ducting
5m Flexible PVC
Do not use old model FAN2444 (with resistor) or either FAN0372 fan timers shown
Specific
Interior Grille
(W/l/s)
0.17 Round White
A
B
Product Code
FAN0101
FAN0102
Exterior Grille
Fixed Louvre White
C
D
Page 1
