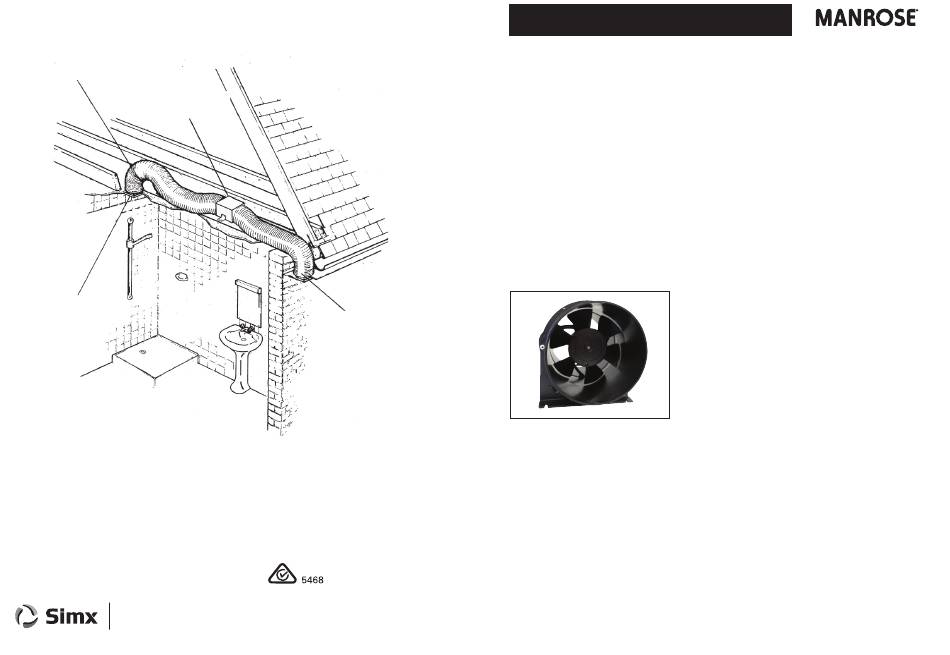

TYPICAL INSTALLATION
Flexible Duct
The Shower Fan
screwed to the joist
Internal
Grille
We reserve the right to change specification without prior warning
Manrose is proudly distributed by Simx Limited
PO Box 14 347, Panmure, Auckland, NZ. Technical Support (09) 259 1662
e: sales@simx.co.nz | www.simx.co.nz | www.manrose.com.au
External
Grille
PUB0110 iss:09 03/17
INSTALLATION INSTRUCTIONS

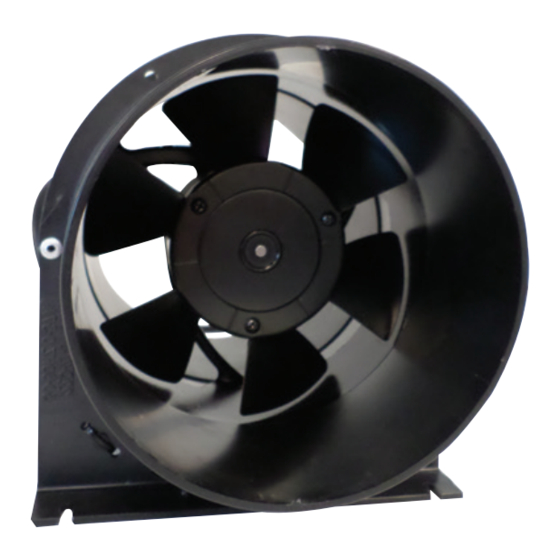

MANROSE HYPER150 IN-LINE EXTRACTOR FAN
Thank you for selecting our Manrose 150mm In-Line Extractor Fan.
Please read all instructions before commencing installation.
Model: Hyper150
Order Code: FAN0085
This 150mm diameter in-line duct axial fan is suitable for domestic ventilation
applications which require high working pressures with low relative noise.
Integral ball bearings mean a long lifetime of service and a quieter operation.
These fans are generally mounted in the ceiling cavity to exhaust air from interior
vents to the outside. The compact design, low profile, ease of mounting and IP
rating to IPX2 ensure a straight forward installation, which enables additional
ducting to be added to this system, while still maintaining high levels of extraction.
Suitable for extracting air from
bathrooms, kitchen and laundries and
bar/restaurant areas. Ideal for heat
transfer systems or to supply fresh air to
stale enclosed areas.
Specifications
Motor:
All metal aluminium die cast with metal impeller , outer rotor, shaded pole motor
Voltage:
220-240 V ~ 50Hz
Wattage:
27W
Noise Level:
38dB(A)@3m
Maximum pressure:
120 Pa
Fan Performance:
394m
/hr
3
(zero pressure)
IP Rating:
IPX2
Compliance:
AS/NZS60335-2.80:2004
C L A S S I C S E R I E S
