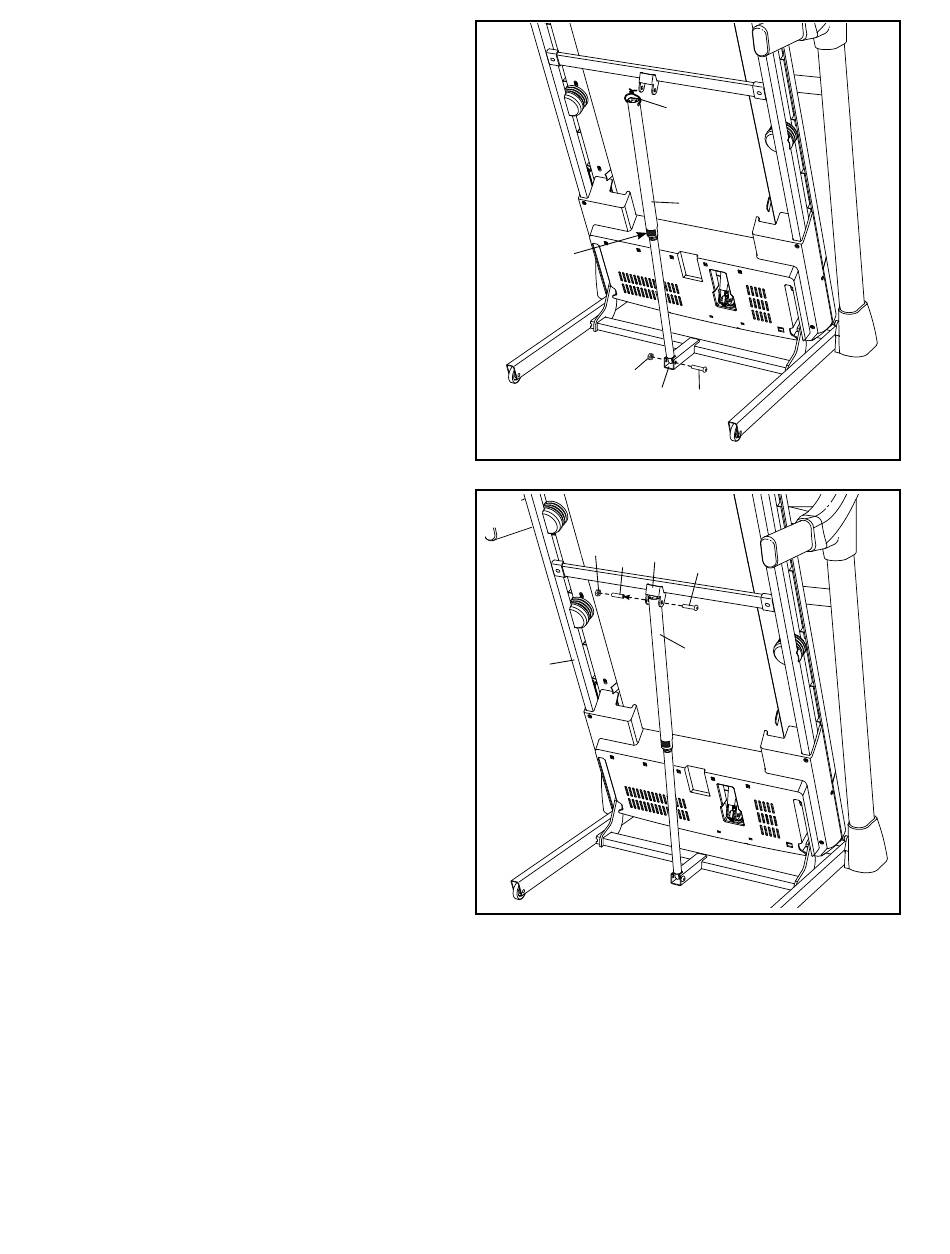

18. Orient the Storage Latch (53) so that the decals
are facing away from the treadmill as shown.
Attach the lower end of the Storage Latch (53) to
the bracket on the Base (94) with a 5/16" x 1 3/4"
Bolt (6) and a 5/16" Nut (12).
Raise the Storage Latch (53) to a vertical posi-
tion. If there is a tie in the top of the Latch,
remove and discard it.
19. Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (38),
and insert a 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push a
spacer (E) out of the Storage Latch; discard
the spacer.
Next, tighten a 5/16" Nut (12) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 29).
18
Decals
12
19
12
E
56
18
Tie
53
94
6
38
3
53
