Technical Specifications - K-array Rumble-KU315 User Manual

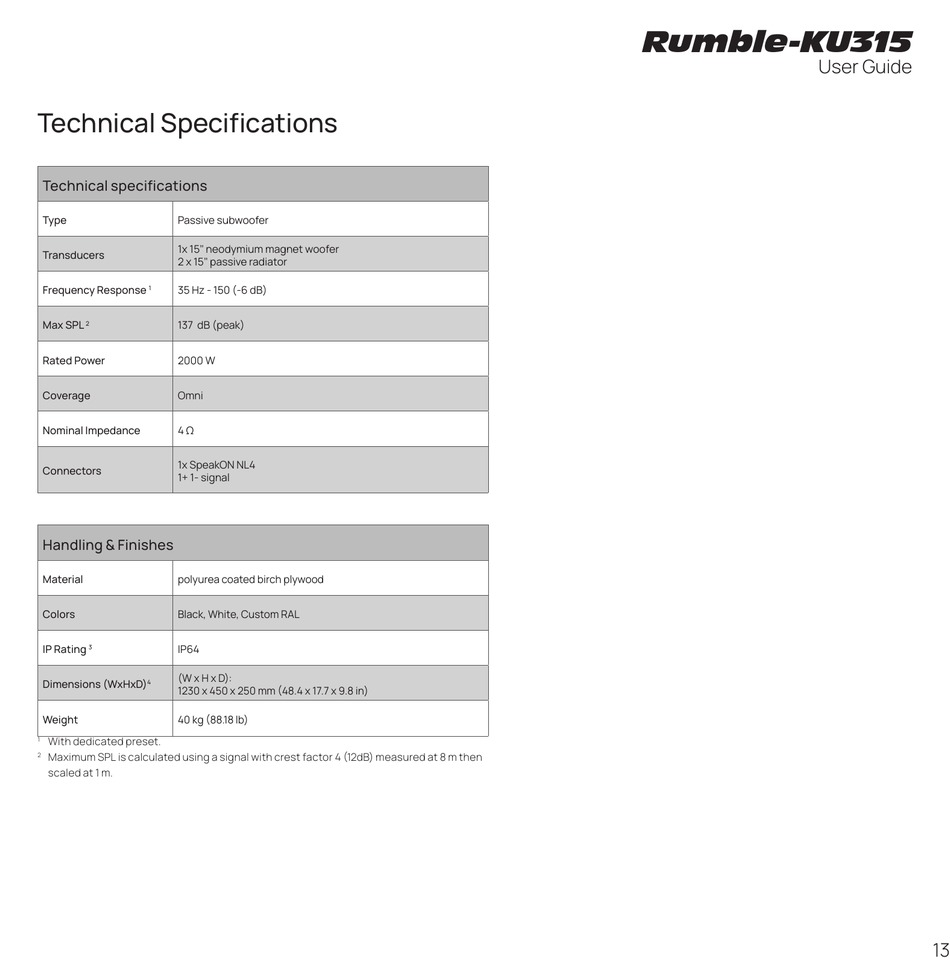

Technical Specifications

Technical specifications
Type Passive subwoofer
1x 15" neodymium magnet woofer
Transducers
2 x 15" passive radiator
Frequency Response 35 Hz - 150 (-6 dB)
1
Max SPL 137 dB (peak)
2
Rated Power 2000 W
Coverage Omni
Nominal Impedance 4 Ω
1x SpeakON NL4
Connectors
1+ 1- signal
Handling & Finishes
Material polyurea coated birch plywood
Colors Black, White, Custom RAL
IP Rating IP64
3
(W x H x D):
Dimensions (WxHxD)
4
1230 x 450 x 250 mm (48.4 x 17.7 x 9.8 in)
Weight 40 kg (88.18 lb)
With dedicated preset.
1
Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then
2
scaled at 1 m.
Rumble-KU315
User Guide
13
