K-array Rumble-KU315 User Manual page 9

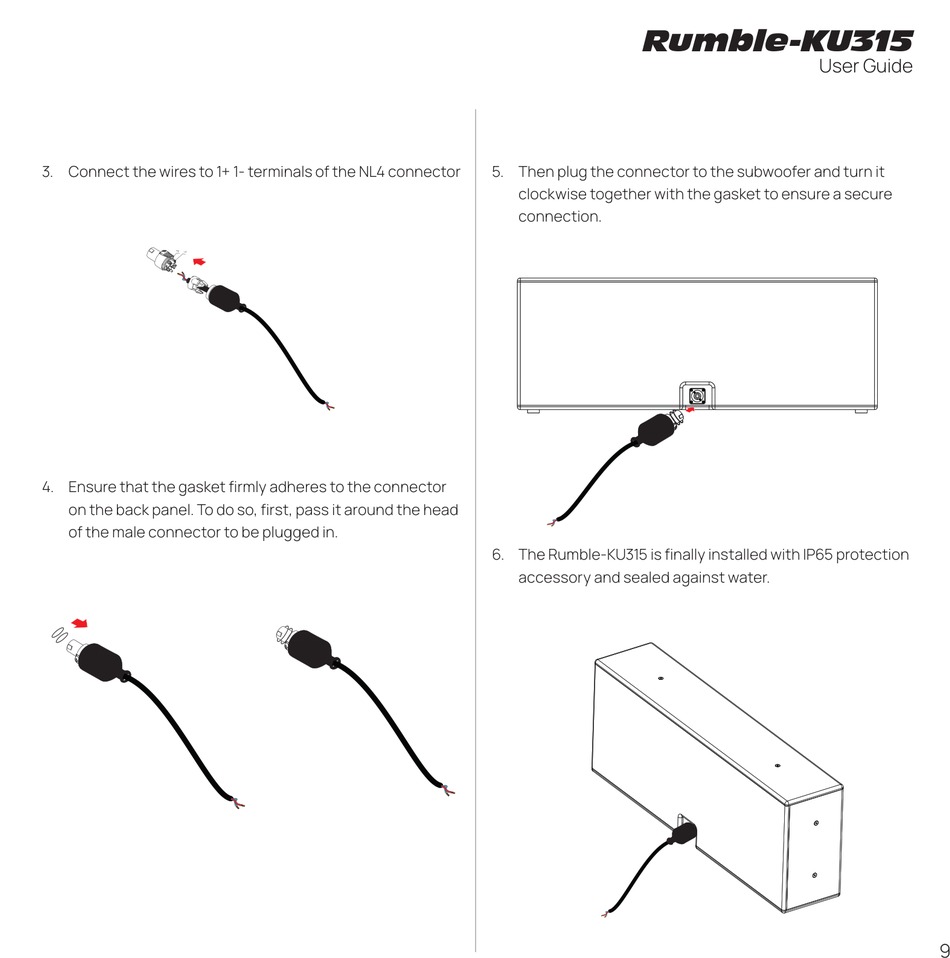

3. Connect the wires to 1+ 1- terminals of the NL4 connector
4. Ensure that the gasket firmly adheres to the connector
on the back panel. To do so, first, pass it around the head
of the male connector to be plugged in.
Rumble-KU315
5. Then plug the connector to the subwoofer and turn it
clockwise together with the gasket to ensure a secure
connection.
6. The Rumble-KU315 is finally installed with IP65 protection
accessory and sealed against water.
User Guide
9
