Cables and accessories Specifications Regulations and standards Thank you for purchasing an Oriental Motor product. This Operating Manual describes product handling procedures and safety precautions. • Please read it thoroughly to ensure safe operation. • Always keep the manual where it is readily available.
Table of contents Before using the product .........................3 Safety precautions ............................4 Precautions for use ...........................6 Checking the product..........................8 Package contents ................................8 How to identify the product model .........................9 Information about nameplate ..........................10 Products possible to combine ..........................11 Names and functions of parts ..........................13 Installation ...............................14 Installation location ..............................
Motor Co., Ltd. is not responsible for any compensation for damage caused through failure to observe this warning. Related operating manuals Operating manuals are not included with the product. Download them from Oriental Motor Website Download Page or contact your nearest Oriental Motor sales office.
Safety precautions Safety precautions The precautions described below are intended to ensure the safe and correct use of the product, and to prevent the customer and others from exposure to the risk of injury. Use the product only after carefully reading and fully understanding these instructions.
Page 5
Safety precautions WARNING • Only qualified and educated personnel should be allowed to perform installation, connection, operation and inspection/troubleshooting of the product. Handling by unqualified and uneducated personnel may result in fire, electric shock, injury, or damage to equipment. • Use a motor and a driver only in the specified combination. An incorrect combination may cause fire, electric shock, or damage to equipment.
Precautions for use Precautions for use This section covers restrictions and requirements the user should consider when using the product. Wiring z Connecting a motor and a driver The dedicated connection cable (sold separately) is required since a 60 W motor is the connector type. (p.13) Use the dedicated connection cable (sold separately) when extending the wiring distance between the motor and the driver.
Page 7
Precautions for use z Apply grease to the hollow output shaft of a hollow shaft flat gearhead. When using a hollow shaft flat gearhead, apply grease (molybdenum disulfide grease, etc.) on the surface of the load shaft and inner walls of the hollow output shaft to prevent seizure. ...

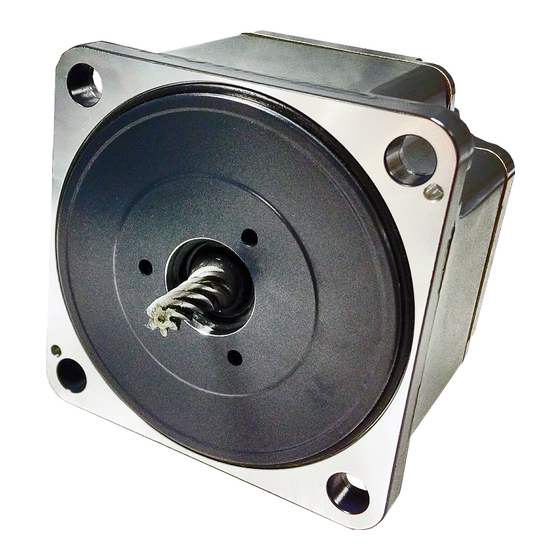

Checking the product Checking the product Package contents Verify that the items listed below are included. Report any missing or damaged items to the branch or sales office from which you purchased the product. Motor z Pinion shaft type, Round shaft type ...
BLMR 4 60 S H K - GFV z CS geared motor BLMR 2 60 H K - 10 CS Motor type BLMR: BLV Series R Type Motor 2: 60 mm (2.36 in.) 4: 80 mm (3.15 in.) Frame size 5: 90 mm (3.54 in.)
Checking the product Information about nameplate The figure shows an example. The position describing the information may vary depending on the product. Motor Motor model Motor speci cations Serial number Manufacturing date Gearhead Gearhead model Manufacturing date Serial number...
Checking the product Products possible to combine Verify the model name of the purchased product against the model shown on the nameplate. • The box ( o ) in the model name indicates a number representing the gear ratio. • The box ( ) in the model name indicates F or B representing the cable outlet direction. ...
Page 12
Checking the product Applicable driver: BLVD-KBRD z Pinion shaft type/parallel shaft gearhead Output power Motor model Applicable gearhead model 400 W BLMR6400SK-GFV- GFV6Go z Pinion shaft type/hollow shaft flat gearhead Output power Motor model Applicable gearhead model 400 W BLMR6400SK-GFV-...
Checking the product Names and functions of parts z Cable type (Example: Pinion shaft type with electromagnetic brake/parallel shaft gearhead) Motor Gearhead (sold separately) Motor cable Mounting hole (4 places) Output shaft Encoder/electromagnetic brake connector Motor connector z Connector type (Example: CS geared motor) Connector for Motor cable connection...
Installation Installation Installation location The driver are designed and manufactured to be incorporated in equipment. Install them in a well-ventilated location that provides easy access for inspection. The location must also satisfy the following conditions: • Inside an enclosure that is installed indoors (provide vent holes) •...
Page 15
Installation z Installing to mounting plate Secure the motor and gearhead through four mounting holes using the mounting screw set included with gearheads. Install so that there is no gap between the product and the mounting plate. Gearhead Motor Plain washer Spring washer Hexagonal socket head screw...
Page 16
Installation Pinion shaft type/hollow shaft flat gearhead z Assembling the gearhead to the motor 1. Keep the pilot sections of the motor and gearhead in parallel, and Change the cable position to a desired assemble the gearhead with the motor while slowly rotating it 90°...
Page 17
Installation z Using the front side as the mounting surface When the gearhead is installed using its front side as the mounting surface, use the mounting boss of the output shaft to align the center axes of the hollow shaft and the load shaft. Hexagonal socket head screw Plain washer Spring washer...
Page 18
Installation CS geared motor Secure the motor and gearhead through four mounting holes using the included mounting screw set. Install so that there is no gap between the product and the mounting plate. Geared motor Plain washer Spring washer Hexagonal socket head screw (L2)
Installation Installing a load Pinion shaft type/parallel shaft gearhead, CS geared motor, round shaft type When installing a load on the motor or the gearhead, pay attention to the following points. • Align the center axis of the motor output shaft or the gearhead output shaft with that of the load. •...
Page 20
Installation Pinion shaft type/hollow shaft flat gearhead If a large impact occurs at instantaneous stop or a large radial load is applied, use a stepped load shaft. • Apply grease (molybdenum disulfide grease, etc.) on the surface of the load shaft and inner walls of the hollow output shaft to prevent seizure.
Installation Permissible radial load and permissible axial load Make sure a radial load and axial load applied to the output shaft will not exceed the permissible values shown in the table below. Failure due to fatigue may occur when the bearings and output shaft are subject to repeated loading by a radial or axial load that is in excess of the permissible limit.
Page 22
Installation Pinion shaft type/hollow shaft flat gearhead Radial load Axial load 10 mm (0.39 in.) 20 mm (0.79 in.) Distance from mounting surface Permissible radial load [N (lb.)] ∗1 Permissible axial load Distance from gearhead mounting surface Motor model Gear ratio [N (lb.)] 10 mm (0.39 in.)
Connection and grounding Connection and grounding Connecting the motor and the connection cable (Connector Type) The dedicated connection cable (sold separately) is required since a 60 W motor is the connector type. z Connector z Removing Hold the connector main body of the connection Hold the connector main body and pull out the cable, and insert the connector until making a connector while pressing the connector lock.
Inspection It is recommended that periodic inspections are conducted for the items listed below after each operation of the motor. If an abnormality is generated, discontinue any use and contact your nearest Oriental Motor sales office. Inspection item • Check if any of the mounting screws of the motor and gearhead is loose.
CCM030B1AAF Coupling, mounting bracket Couplings and mounting brackets can be checked on the Oriental Motor Website. About the mounting bracket (SOL) of the motor If the motor is secured to the mounting bracket in a state where the cable outlet direction is set toward...
Specifications Specifications Specifications Check on the Oriental Motor Website for the product specifications. General specifications Degree of protection IP40 Ambient temperature 0 to +40 °C (+32 to +104 °F) (non-freezing) Humidity 85% or less (non-condensing) Altitude Up to 1000 m (3300 ft.) above sea level No corrosive gas, dust, water or oil.
Regulations and standards 10 Regulations and standards UL Standards, CSA Standards This product is recognized by UL under the UL and CSA Standards. CE Marking This product is exempt from the CE marking. Installation conditions • For incorporating in equipment Ⅰ...
Page 28
If a new copy is required to replace an original manual that has been damaged or lost, please contact your nearest Oriental Motor branch or sales office. • Oriental Motor shall not be liable whatsoever for any problems relating to industrial property rights arising from use of any information, circuit, equipment or device provided or referenced in this manual.
