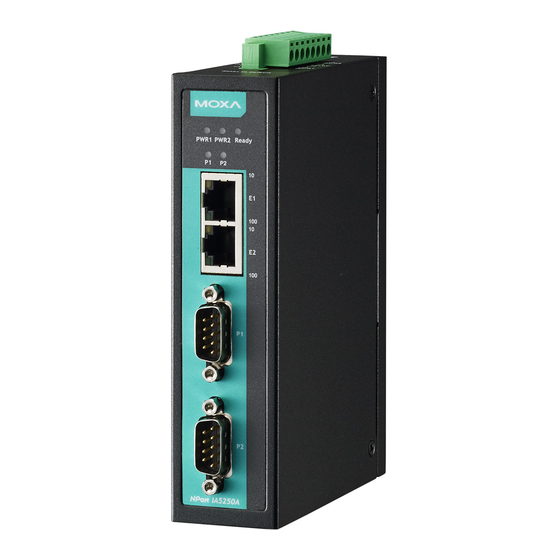

- Page 1 NPort IA5000A Series Quick Installation Guide Version 5.3, July 2023 Technical Support Contact Information www.moxa.com/support 2023 Moxa Inc. All rights reserved. P/N: 1802051500318 *1802051500318*...
-
Page 2: Package Checklist
Overview The NPort IA5000A series of device servers delivers easy and reliable serial-to-Ethernet connectivity for the industrial automation market. The servers support several operation modes—TCP Server, TCP Client, UDP, Real COM, RFC2217, RTelnet, Pair Connection, and Ethernet Modem—ensuring the compatibility of network software. They are an... - Page 3 Dimensions The Reset to Default Button—Depress the reset to default button for 5 continuous seconds to load the factory default settings. Use a pointed object, such as a straightened paper clip or toothpick, to depress the reset to default button. This will cause the Ready LED to blink on and off.
-
Page 4: Hardware Installation Procedure
STEP 3: Connect the NPort IA5000A Series’ serial port to a serial device. STEP 4: The NPort IA5000A Series is designed to be attached to a DIN- rail or mounted on a wall. For DIN-rail mounting, push down the spring and properly attach it to the DIN-rail until it “snaps”... -
Page 5: Software Installation Information
The following figure illustrates the two mounting options: Grounding the NPort IA5000A Series Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface before connecting the devices. -
Page 6: Pin Assignments And Cable Wiring
Four cables are available as optional accessories that can be used to connect the NPort IA5000A Series to RS-232 serial devices. For your convenience, we show precise cable wiring diagrams for each of the two cables. - Page 7 Female DB9 to Male DB25 ATEX and IECEx Information 1. Certification number: DEMKO 12 ATEX 1014487X IEC Certification Number: IECEx UL 13.0024X 2. Ambient Temperature Range: -40°C ≤ Tamb ≤ 75°C for models with the “-T” suffix 0°C ≤ Tamb ≤ 60°C for models without the “-T” suffix 3.
- Page 8 Pull-high, Pull-low, and Terminator for RS-485 Remove the NPort IA5000A’s top cover, and you will find DIP switches to adjust each serial port’s pull-high, pull-low, and terminator. NPort IA5150A Series NPort IA5250A Series Pull-high Pull-low Terminator resistor resistor 1 kΩ 1 kΩ...
