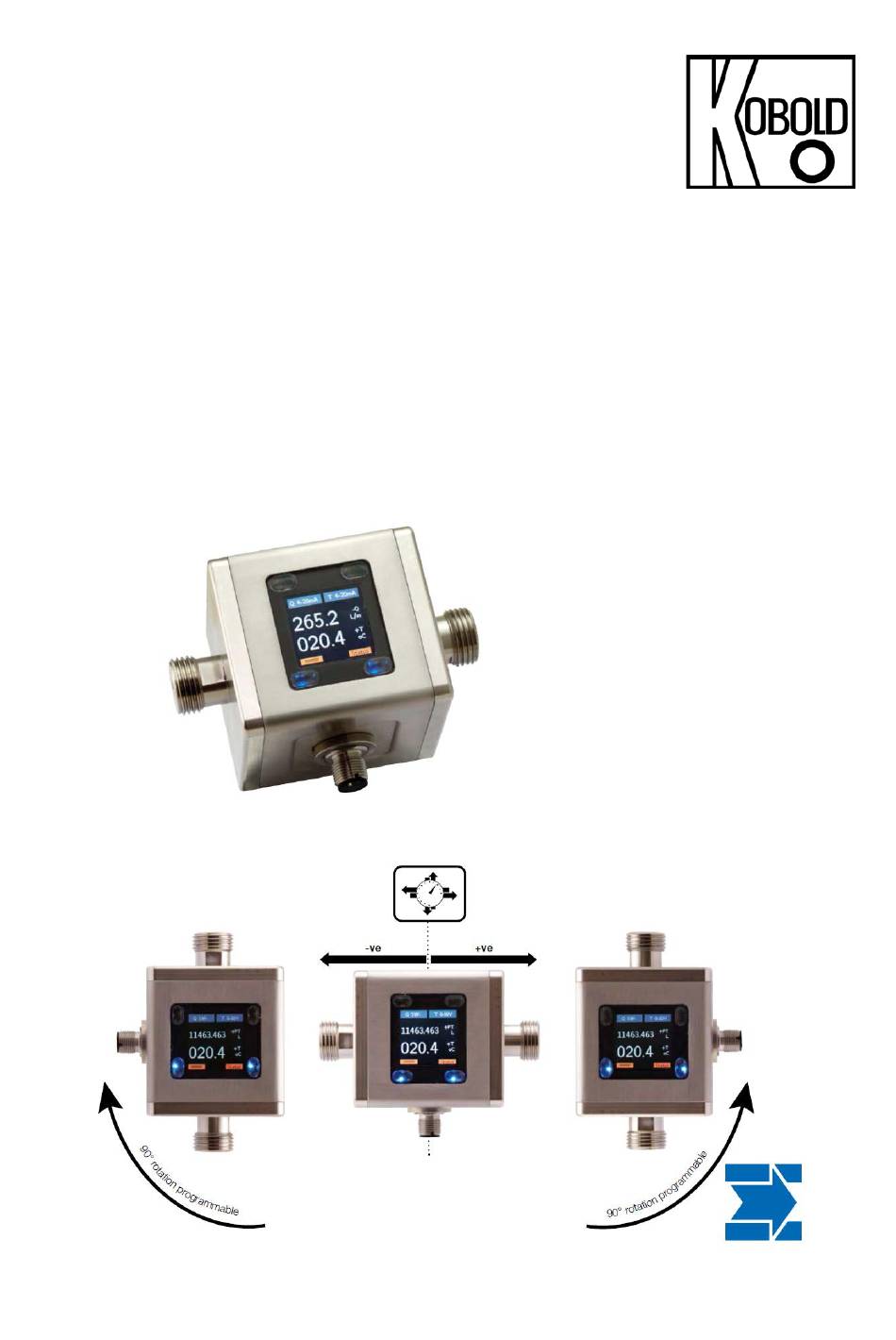

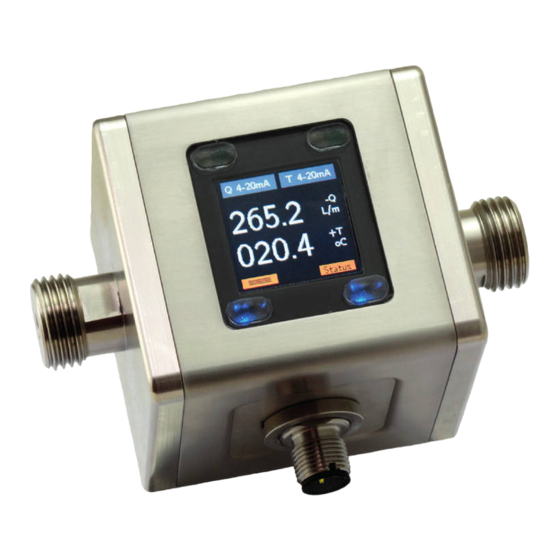

  • Page 1 Operating Instructions Magnetic Inductive Flowmeter Model: MIM...

  • Page 2: Table Of Contents

    10.7 User service ..................45 10.8 Service / Factory service..............46 10.9 Info ..................... 46 10.10 Device default settings ............... 46 11. Status ......................47 12. Dosing function ................... 48 13. IO-Link function ................... 52 13.1 Specification ..................53 page 2 MIM K34/0422...
  • Page 3 18. Manufacturer’s declaration ................76 19. Confirmation for contact with drinking water ..........77 20. EU Declaration of Conformance ..............78 21. UK Declaration of Conformity..............79 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com...

  • Page 4: Note

    2014/68/EU no CE mark. Diagram 8, Pipe, Group 1 dangerous fluids 2.1 Overview of the device functionality Depending on the installed device firmware, the MIM device may have different functionalities. The functional extensions are shown in the following table. Function extension...

  • Page 5: Instrument Inspection

    Any use of the magnetic flowmeter, model: MIM, which exceeds the manufacturer’s specification, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer.

  • Page 6: Operating Principle

    For the correct function of the instrument, it is necessary that the flow channel is always completely filled with medium. From a minimum electrical conductivity of 20 μS / cm, the MIM operates within the specified error limits. The conductivity of the medium is constantly monitored by the device electronics. If the electronics detects that the minimum conductivity has fallen below min.

  • Page 7: Measuring Electrodes

    • max. operating pressure • max. operating temperature In general, MIM is subjected to the same loads as the piping into which it is installed. The MIM should therefore be kept away from extreme loads, such as pressure surges with strong, dynamic pipe movements, vibrations in the proximity of centrifugal pumps, high temperature media, flooding etc.
  • Page 8 Nominal size Tightening torque ½“ 22 to 24 Nm ¾“ 28 to 30 Nm 1“ 28 to 30 Nm Inlet and outlet run Installation from top to bottom avoid these installation locations Gas bubbles, particle Free outlet page 8 MIM K34/0422...

  • Page 9: Electrical Connection

    / earthing of the housing is generally necessary. When installing in a plastic pipe or any ungrounded pipe, the housing must be earthed at the side threaded hole (M4) to ensure proper functionality of the MIM. If a class 2 switched-mode power supply (all-insulated, without an external protective earth connection) is used for the power supply, the grounding must be connected to ensure functionality.

  • Page 10: Pin Assignment

    Attention! A customer extension of the connection cable is not recommended because of the necessary continuous shielding and leads to malfunction of the device. The cable permanently connected to the sensor must not be disassembled. page 10 MIM K34/0422...
  • Page 11 MIM- Wiring diagram Transmitter Termination Connection cable (PVC and ETFE cable) MIM K34/0422 page 11...
  • Page 12 Pull back the cable and put the contact spring on the outer shield Push the cable into the cable gland, insert the plug connector and tighten the hexagon nut of the cable gland with SK key SW 19 and lock with SW 18 page 12 MIM K34/0422...
  • Page 13 Insert gasket, make sure gasket is seated correctly Put the laminated seal disc on the screw and screw the threaded connection in the housing. When tightening the screws, reduce the gap between sheet metal housing and the cover to ~ 0.5 mm MIM K34/0422 page 13...

  • Page 14: Connection Example Outputs

    2-10 V analogue output 0-10 V analogue output 0-10 V alarm output alarm output pulse output pulse output frequency output frequency output communication mode KofiCom communication mode IO Link control input control input dosing function dosing output page 14 MIM K34/0422...

  • Page 15: Operation And Menu Structure

    Activate menu menu mode mode hold 3-5 sec. opens the info info display menu Scroll down menu / decrease numeric down value when entering numeric value Menu scroll up / Increase the number MIM K34/0422 page 15...

  • Page 16: Measuring Mode

    If the corresponding output is configured as an alarm output, the status is also displayed with a green or red background color. If the background color is green, the set threshold value is exceeded; if it is red, the current value is still under threshold. page 16 MIM K34/0422...
  • Page 17 The assignment of the respective output is indicated by the display of the symbol of the measuring variable. The representation of the assignment is independent of the set display layout (single, dual). MIM K34/0422 page 17...
  • Page 18 8 minus characters (--------). In this case, the meter reading can no longer be read. The user now has the option of bringing the counter reading back into the display area by changing the volume counter unit. page 18 MIM K34/0422...

  • Page 19: Menu Mode

    This transition happens automatically Step 4 Step 3 Step 2 Apply selection Menu Parameter selection 1 Parameter selection 2 and save Step 1 Menu button The orientation can be press for 3-5 seconds selected with up and down buttons MIM K34/0422 page 19...
  • Page 20 , the editing point can be moved to the left again. If the editing point is on the far right, the set value is saved by pressing the again and switched to the higher-level menu function. page 20 MIM K34/0422...

  • Page 21: Device Configuration

    The flowmeter MIM is pre-configured in factory. Changing the parameters "Measuring range" and "Sensor constant" or "K factor" is therefore not permitted. The adjustment of these parameters is only possible on the part of Kobold-factory. In the event of subsequent changes to volume or throughput units, the dependent parameters are converted and adjusted accordingly.

  • Page 22: Display

    MIN/MAX / Reset Value display / Reset flow Yes / Yes Yes / No Temperature Yes / Yes Yes / No Partial quantity counter Not available Yes / Yes Totalizer Not available Yes / No page 22 MIM K34/0422...
  • Page 23 The menu timeout time defines the time after which the menu function is automatically exited without pressing a key. In the setting "0 s" this function is deactivated and the menu function can only be left by hand by pressing the back key several times. MIM K34/0422 page 23...

  • Page 24: Measurement

    • Flow • Volume (total volume counter) • Temperature • Part volume Each measurement variable is still divided into its own submenu. In the submenu, all parameters relating to the respective measuring variables can be adjusted. page 24 MIM K34/0422...
  • Page 25 ∗ (���� − 1) + �������� �������� ������������−1 ���� ������������ �������� = filtered measured value, �������� = last filtered measured value, �������� ������������ ������������−1 �������� with: 0−1 = current measured value = last measured value Application areas of the filter types MIM K34/0422 page 25...
  • Page 26 However, if the final value of the counter is reached, the step detector is active and all filter buffers are overwritten with the current measured value. page 26 MIM K34/0422...
  • Page 27 Depending on the flow direction, the calculated partial volume is added or subtracted to the counters. If the measured flow value is negative, the volume value goes down from measurement to measurement (possibly into the negative range). MIM K34/0422 page 27...
  • Page 28 Depending on the flow direction, the calculated partial volume is added or subtracted to the counters. If the measured flow value is negative, the volume value goes down from measurement to measurement (possibly into the negative range). page 28 MIM K34/0422...
  • Page 29 "intervals", the simulation value Time Interval time Sim Autostoptime decreases again in the same way, in order to increase again. This process is repeated continuously until the set time "Sim Auto Stop Time" has expired and the simulation ends. MIM K34/0422 page 29...
  • Page 30 "increment value" after the start. Counter state before start Time Sim Autostoptime When simulating the subset counter, note that in triangle mode, the submenu counter must be in bidirectional mode to achieve the expected effect. page 30 MIM K34/0422...
  • Page 31 Type bidirectional mode ml, L, m3, Unit List selection Sets the volume unit galUS, galUK, galUs Part User volume memory Sets the counter Yes/No reset value to "0" Simula- tion See table Simulation mode mode MIM K34/0422 page 31...

  • Page 32: Dosing Function

    12 10.6 Outputs The MIM flowmeter provides a total of 2 outputs that are freely configurable. The configuration of the outputs (output 1 and output 2) is done via a wizard function. The wizard function guides the user step by step through all necessary settings.
  • Page 33 This feature is also referred to as N.O. In the "Normally closed" setting, the output below the switching threshold is already active and is deactivated when the measured value exceeds the switching threshold. This function is also referred to as N.C. MIM K34/0422 page 33...
  • Page 34 UP suppression direction UP Treshold Hysteresis Treshold Hysteresis Hysteresis Lower treshold Time Time suppression time suppression time suppression time suppression time Examples of the effect of the switching delay for window and limit function page 34 MIM K34/0422...
  • Page 35 NAMUR Standard disabled 20mA / 10V 12mA / 6V 4mA / 2V 3,8mA / 1,9V (underflow) Meas. value Value for 4mA Value for 20mA Value for 2V Value for 10V Output behavior 4-20 mA and 2-10 V MIM K34/0422 page 35...
  • Page 36 10.6.3 Pulse output MIM flowmeter provides a scalable pulse output. When the pulse output is activated, the cyclically incoming volume is available as a pulse train at the output. The pulse width of the pulse output is constant and can be set in a range of 1 ms up to 20 s.
  • Page 37 MRE−Measurement Range End [L/min] ∗ pulse width [ms] 22500 If the condition is not met, there may be a time lag of the pulse output. This is particularly undesirable if dosing tasks are to be performed with the pulse signal. MIM K34/0422 page 37...
  • Page 38 The pulses accumulated in the menu mode are output as soon as the measuring mode is active again. Depending on the situation, this can also lead to a longer pulse lag. page 38 MIM K34/0422...
  • Page 39 10.6.4 Frequency output The MIM flowmeter provides a scalable frequency output. When this output is activated, the measurement variable (flow or temperature) associated with the frequency output is output proportionally as a frequency with a 1: 1 pulse / pause duration.
  • Page 40 Function Measurement variable Control pulse duration MIN/MAX Reset Flow, temperature 0.5s < t < 4s high Part volume counter reset Part volume counter 0.5s < t < 4s high page 40 MIM K34/0422...
  • Page 41 MB start ≤ value ≤ 0-10 V Measured value for 0 V Value 0 V output value 10 V Value for 0 V ≤ Measured value for 10 V Value 10 V Full scale value ≤ Full scale output MIM K34/0422 page 41...
  • Page 42 Pulse output for the pulse 0.001-999 volume value input volume Sets the pulse Pulse width 1-20.000 1 ms width KofiCom Factory calibration mode on output 1 IO-Link This mode activates the IO-Link function on output 1 page 42 MIM K34/0422...
  • Page 43 MB start ≤ value ≤ Measured value for Value 0 V 0 V output value 10 V Value 0 V ≤ value ≤ Measured value for Value 10 V Full scale 10 V output Full scale MIM K34/0422 page 43...
  • Page 44 Control function for Control input MIN / MAX memory OFF, memory reset (only OUT1) reset KofiCom Factory calibration mode on output 1 (only OUT1) IO-Link This mode activates the IO-Link function on output 1 (only OUT1) page 44 MIM K34/0422...

  • Page 45: User Service

    / Menu lock access only takes place via unlocked closed closed the password prompt Sets the time for how long Sim Autostop Value input the simulation mode remains 1 - 31 min. 10 min. active MIM K34/0422 page 45...

  • Page 46: Service / Factory Service

    Displays the hardware and software version Info Manual Displays the QR code to download the instruction manual 10.10 Device default settings The MIM flowmeter is factory set and unloaded with the following configuration: Display - Dual IOLINK 0.000 Upper display - Flow Lower display - Temperature 25.60...

  • Page 47: Status

    Empty Pipe filled with medium or medium conductivity of the medium with too low conductivity is used. (> 20 μs / cm) Error in the temperature Repair by KOBOLD Service Temp Sens Error measuring circuit necessary Flow measuring circuit Meas saturated...

  • Page 48: Dosing Function

    MIM- 12. Dosing function The standard MIM provides a simple dosing function. This can be permanently activated or deactivated in the settings menu under the menu item "dosing". If the dosing function is activated, fixed functions are assigned to the 2 outputs which...
  • Page 49 RESETTING the dosing value If the dosing process is finished or stopped, the dosing quantity can be reset to the default value by the function RESET. This function can also be triggered at the control input. MIM K34/0422 page 49...
  • Page 50 During the dosing process, the presence of a flow value not equal to 0 is constantly monitored. For this purpose, the parameter "Timeout" is used to set the time after which the status message "Time Out" is triggered. The timeout value can be set between 0.5 sec and 10 sec. page 50 MIM K34/0422...
  • Page 51 Value input 9999.99 [unit] -999.99 ≤ Activation Correction Value Value ≤ activated value input +999.99 [unit] ml, L, m3, List Unit galUS, galUK, galUs selection User Value Time out 0.5 - 10 sec 0.5 sec. input MIM K34/0422 page 51...

  • Page 52: Io-Link Function

    MIM- 13. IO-Link function As of firmware version REV190320, the MIM flowmeter has an IO-Link communication interface as standard. Process and diagnostic data can be accessed directly via this interface and the device can be parameterized. Output 1 is factory configured for IO-Link function. If the IO-Link communication mode is active, the "IOLINK"...

  • Page 53: Specification

    MIM- 13.1 Specification Manufacturer ID 1105 (decimal), 0x0451 (hex) Manufacturer name Kobold Messring GmbH IO-Link specification V1.1 Bitrate COM3 Minimum cycle time 1.1 ms SIO mode yes (OUT1 in configuration IO-Link) Block parameterisation Ready for operation 10 sec. Max. cable length...

  • Page 54: Technical Information

    4 optical touch fields, useable with hand gloves** Housing: stainless steel 1.4404, display screen PMMA Wetted parts The wetted parts of MIM-13*** are in conformance with DVGW 270 and WRAS guidelines for drinking water approval. *** except G9/N9 Connection fitting and housing: stainless steel 1.4404...
  • Page 55 15 VDC <UHigh <Vs No internal pull-ups available, active high / low signal necessary! Total and partial quantity counter: overflow (reset) at 15 * 10 liters (regardless of the set unit) Electrical connection: plug M12x1, 4-pin Dosing Function: MIM K34/0422 page 55...
  • Page 56 > 5 s high * Under reference conditions: media temperature: 15 °C ... 30 °C, 1 cSt, 500 µS/cm, 1 bar ambience temperature: 15 °C ... 30 °C ** Limited functionally with black rubber gloves Pressure Loss page 56 MIM K34/0422...

  • Page 57: Order Codes

    MIM- 15. Order Codes Order Details (Example: MIM-12 15G G5 C3T 0) Model Range Connection Electronics Special version = 0.01...1 l/min G2 = G¼ male = 0.16…16 GPH = 0.03...3 l/min = G ½ male = 0.04 ... 10 l/min C3T = compact, TFT display, = 0.48…48 GPH...
  • Page 58 MIM- Order Details MIM Fitting Sets Accessory Kits* Accessory kit number Meter connection Process connection Fitting set type ZUB-AD2U15P08 G ½ cap nut ¼“ NPT male Cap nut and union ZUB-AD2G08P08 G ¼ female ¼“ NPT male Cap nut and union ZUB-AD2G15P15 G ½...

  • Page 59: Dimensions

    MIM- 16. Dimensions [mm] MIM K34/0422 page 59...
  • Page 60 MIM- page 60 MIM K34/0422...

  • Page 61: Appendix

    0 1 2 3 4 5 6 7 Byte 3 Byte 4 Byte 5 Byte 6 Temperature (12 Bit, IntegerT) 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 Byte 7 Byte 8 MIM K34/0422 page 61...

  • Page 62: Io-Link Diagnosis Information

    6214 Emptypipe Warning no media in tube 0x1847 6215 Temperature Sensor Error Error no sensor attached 0x1848 6216 Measuring Circuit Saturated Warning ADC out of range 0x1849 6217 Counter Overflow Error volume or partvolume counter overflowed page 62 MIM K34/0422...

  • Page 63: Io-Link System Command Table

    0xA3 Start temperature simulation 0xA4 Stop temperature simulation 0xA5 Start part volume simulation 0xA6 Stop part volume simulation 0xA7 Events Handling ON 0xA8 Events Handling OFF 0xA9 Reset MinMax for Flow 0xAA Reset MinMax for Temperature MIM K34/0422 page 63...

  • Page 64: Io Link Isdu Parameter Table

    = 1000 L galUS US gallons 1 galUS = 3.7854 L galUK UK gallons 1 galk = 4.54609 L barrel Barrel (US) 1 barrel = 158.99 L USER user unit 1 user unit = USER * L page 64 MIM K34/0422...
  • Page 65 Firmware Revision is max. 8 StringT constant in FW 0x0018 ApplicationDevice tag name is from StringT user configurable 0x0019 FunctionTag function tag is from StringT user configurable 0x0020 LocationTag location tag is from StringT user configurable MIM K34/0422 page 65...
  • Page 66 0x010E SensitivityOptical Sensitivity for the (0) - low UIntegerT Keys optical keys (1) - middle (2) - high 0x010F AutomaticMenu Automatic menu UIntegerT Leave leaves if the timeout [s] is hit. 0 = timeout not active page 66 MIM K34/0422...
  • Page 67 How many times the UIntegerT SuppressionFactor threshold must be hit in order to switch the alarm output 0x0122 OUT1Alarm for which direction (0) - Up UIntegerT Suppression the suppression (1) - Down Direction factor is used (2) - Both MIM K34/0422 page 67...
  • Page 68 (2) - mL (3) - m3 (4) - galUS (5) - galUK (6) - Barrel 0x0141 OUT1PulseVolume User Unit used for 9999,9 FloatT UnitUser the pulse output [L] 0x0145 OUT1PulseWidth Width of each pulse 20000 UIntegerT [ms] page 68 MIM K34/0422...
  • Page 69 (1) - normally closed closed 0x0168 OUT2Alarm Threshold for the FloatT Threshold alarm output [LPM/°C] 0x016C OUT2AlarmLower Threshold for the OUT2Alarm FloatT Threshold alarm output used Threshold by the window function [LPM/°C] MIM K34/0422 page 69...
  • Page 70 0x0187 OUT2AnalogValue The value from the OUT2 FloatT slot used for the 2V Analog scaling point Value10V [LPM/°C] 0x018B OUT2AnalogValue The value from the 100,0 OUT2Analog FloatT slot used for the 10V Value0V scaling point [LPM/°C] page 70 MIM K34/0422...
  • Page 71 [L] 0x01BE DosingUnit Unit used for the (0) - USER UIntegerT dosing function (1) - L (2) - mL (3) - m3 (4) - galUS (5) - galUK (6) - Barrel MIM K34/0422 page 71...
  • Page 72 UIntegerT Password service menu and main menu 0x01CF ServiceUserMenu Whether main menu (0) - not locked UIntegerT Locked is locked or not (1) - locked 0x01D0 SimulationAuto Auto stop for UIntegerT Stop Simulation after time [min] page 72 MIM K34/0422...
  • Page 73 0x031F SimTimingIntervals Timinig in ms 50000 UIntegerT between intervals 0x0321 ValueInSiUnit Saved flow value in 999999,0 -999999,0 FloatT SI unit [LPM] 0x0325 MinValueInSiUnit Saved min flow value 999999,0 -999999,0 FloatT in SI unit [LPM] MIM K34/0422 page 73...
  • Page 74 -9999,0 FloatT the simulation [°C] 0x03E1 SimIncrement Incrementation 10,0 999,0 -999,0 FloatT Value value of the simulation [°C] 0x03E5 SimNumber Number of intervals 65000 UIntegerT Intervals to simulation 0x03E7 SimTimingIntervals Timinig [ms] 50000 UIntegerT between intervals page 74 MIM K34/0422...
  • Page 75 Number of intervals 65000 UIntegerT Intervals to simulation 0x044B SimTimingIntervals Timinig [ms] 50000 UIntegerT between intervals 0x044D ValueInSiUnit Saved part volume 999999,0 -999999,0 FloatT value in SI unit [L] Legend MRE Measuring Range End MRS Measuring Range Start MIM K34/0422 page 75...

  • Page 76: Manufacturer's Declaration

    MIM- 18. Manufacturer’s declaration MANUFACTURER'S DECLARATION OF CONFORMITY Kobold Messring GmbH Nordring 22-24 65719 Hofheim Germany declare under our own responsibility that the product(s): MIM-1********** (IO-Link Device) to which this declaration refers conform to:  • IO-Link Interface and System Specification, V1.1, July 2013 (NOTE 1,2) •...

  • Page 77: Confirmation For Contact With Drinking Water

    Gebrauch in Kontakt mit Trinkwasser kommen können, die Konformität der trinkwasserhygienischen Eignung. Kobold Messring GmbH, Hofheim-Ts., hereby confirms the conformity of the drinking water hygienic suitability for the materials and objects that can come into contact with drinking water when used as intended.

  • Page 78: Eu Declaration Of Conformance

    MIM- 20. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Electromagnetic Flowmeter Model: MIM -1xxxxxxxxxx to which this declaration relates is in conformity with the standards noted below: EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use –...

  • Page 79: Declaration Of Conformity

    MIM- 21. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Electromagnetic Flowmeter Model: MIM -1xxxxxxxxxx to which this declaration relates is in conformity with the standards noted below: BS EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use.
