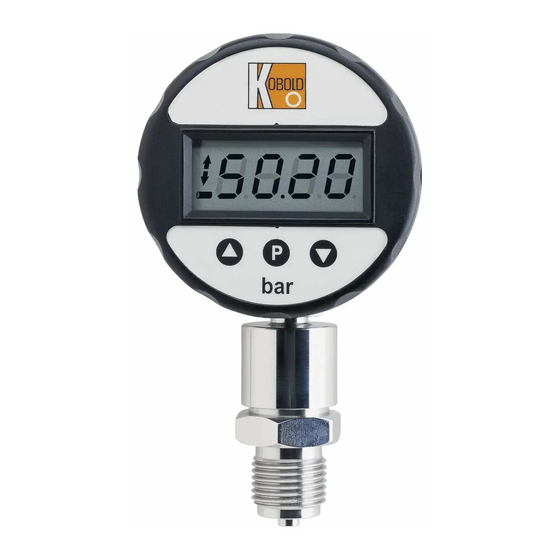

Digital manometer
Hide thumbs Also See for MAN-SD series:

Advertisement

Operating Instructions
for
Digital Manometer
Model: MAN-SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAN-SD series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kobold MAN-SD series

  • Page 1 Operating Instructions Digital Manometer Model: MAN-SD...
  • Page 2: Table Of Contents

    10. Control Functions ..................8 11. Maintenance ....................12 12. Technical Information..................12 13. Order Codes ....................13 14. Dimensions ....................14 15. Declaration of Conformance ...............15 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com...
  • Page 3: Note

    MAN-SD 2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &...
  • Page 4: Regulation Use

    MAN-SD 4. Regulation Use Any use of the Digital Manometer, model: MAN-SD, which exceeds the manufacturers specification may invalidate its warranty. Therefore any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. The model MAN-SD serves to measure, monitor and transmit pressure- dependent operational processes in machines and systems.
  • Page 5: Mechanical Connection

    MAN-SD 6. Mechanical Connection Before installation: • Ensure that the max. pressure in your system is within the prescribed range of the digital manometer. The measuring range can be read from the nameplate label of the device. • Make sure that the permitted max. operational temperature of the device is not exceeded.
  • Page 6: Electrical Connection

    MAN-SD 7. Electrical Connection Attention! Please ensure that you use a 9 V – alkali-manganese-block battery (IEC 6 LR 61). • Make sure that the power supply lines are not active. (Only with option limit-contacts or analogue output.) • Open the battery enclosure on the back-side of the unit and connect the 9V block battery with the connection plug.
  • Page 7: Function Keys

    MAN-SD 8. Function Keys For the selection of menu options, the following functions keys are available: Next Menu Option Previous Menu Option Press once to Switch-on Press twice to Switch-off P & Exit Menu Adjustment and Function: Value-adjustment upwards Value-adjustment downwards Enter value and jump to next Menu Option &...
  • Page 8: Control Functions

    MAN-SD 10. Control Functions 10.1. Standard version MAN-SD10... and unit with analogue output MAN-SD30... 1xP = Unit Switch on 1234 LCD Display 1xP = Unit Switch off P A S S 0 0 0 0 Password input Password set on 0005 (factory setting) &...
  • Page 9 MAN-SD 10.2. Unit with peak value memory MAN-SD1S... and unit with peak value memory + analogue output MAN-SD3S... 1xP = Unit Switched-on LCD-display 1234 Resetting Peak value memory 1xP = Unit switched-off P d u o F F Peak value memory Last Setting m A x Register max.
  • Page 10 MAN-SD 10.3. Unit with switching output MAN-SD20... 1234 LCD Display 1xP = Unit Switched-off P A S S 0 0 0 0 Password input Password Set on 0005 (factory setting) & Cancel Access to further Menu Options r E f 0 6.
  • Page 11 MAN-SD 10.4. Unit with switching output + peak value memory MAN-SD2S... LDC Display 1xP = Unit Switched-on 1234 Resetting Peak value memory 1xP = Unit Switched-off P d u o F F Peak value memory Last setting m A x Register max.
  • Page 12: Maintenance

    MAN-SD 11. Maintenance In case, the medium to be measured is not polluted, the unit is maintenance-free. 12. Technical Information Nominal size: 74 mm Accuracy class 0,5 % Display: 4-digit LCD; digit height 12,7 mm Measuring range: -1...0, 0...1, 0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16, 0...25, 0...40, 0...60, 0...100, 0...160, 0...250, 0...400 bar Overload range:...
  • Page 13: Order Codes

    MAN-SD 13. Order Codes MAN-SD C315 Output without..........1 Relay/N/O contact........ 2 Analogue output........3 Peak value memory without............0 with.............. S Measuring range code A315 -1 to 0 bar ............0 to 1 bar ............B025 B045 0 to 2.5 bar ............0 to 4 bar ............
  • Page 14: Dimensions

    MAN-SD 14. Dimensions Optional: PG7 (LCD) Ø74 Rotatable Display SW 24 G1/4A page 14 MAN-SD 03/04...
  • Page 15: Declaration Of Conformance

    MAN-SD 15. Declaration of Conformance We, Kobold-Messring GmbH, Hofheim-Ts., Federal Republic of Germany, declare, that the product Digital Manometer Model: MAN-SD... complies with the standards given below: EN 50081-1.2 1994.03 Electromagnetic compatibility - Generic emission standard EN 61326-1 1998.01 EN 61010-1 1994.03...
