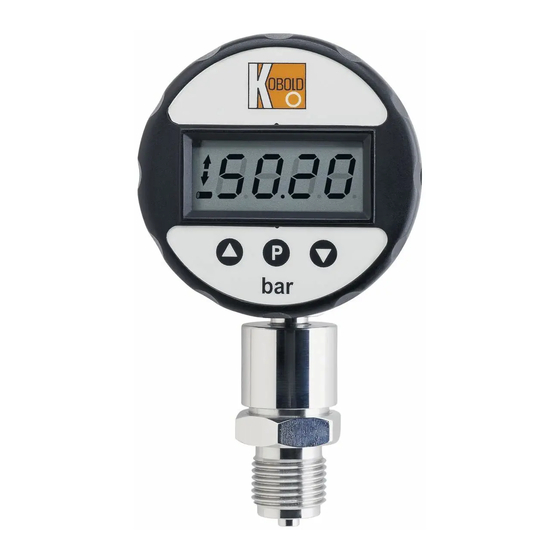

Operating Instructions
for
Digital-Manometer
Model: MAN-SD
MAN-LD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAN-SD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold MAN-SD Series

Summary of Contents for Kobold MAN-SD Series

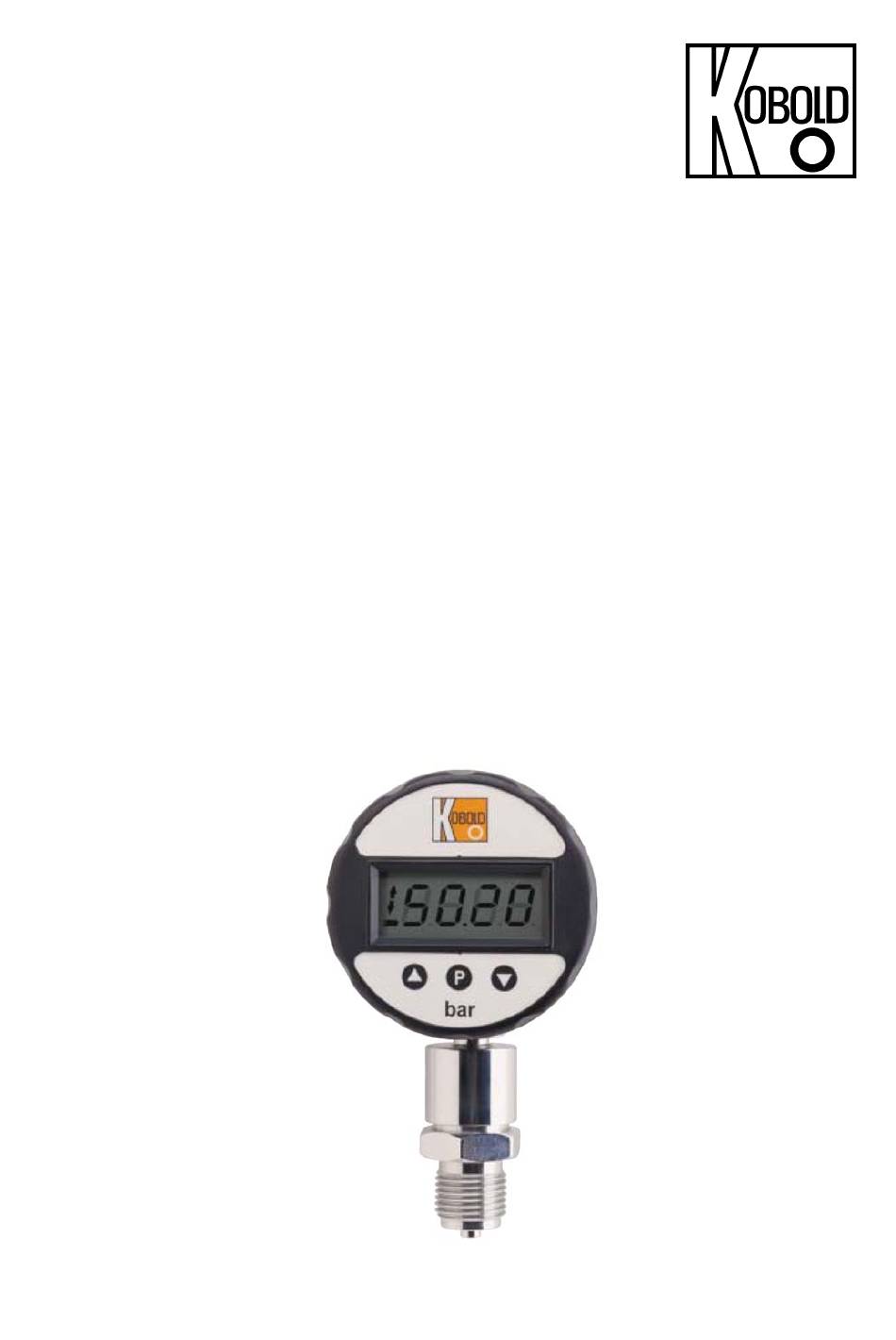

  • Page 1 Operating Instructions Digital-Manometer Model: MAN-SD MAN-LD...

  • Page 2: Table Of Contents

    Order Codes ....................17     Dimensions ....................18     EU Declaration of Conformance ..............19     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: 06192-299-0 Fax: 06192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Seite 2 MAN-SD/-LD K11/0422...

  • Page 3: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.

  • Page 4: Regulation Use

    MAN-SD/-LD 4. Regulation Use The models MAN-LD /MAN-SD are used for the measuring, monitoring and remote transmission of pressure-dependent operating sequences in machines and and installations. These devices are equipped as follows:  4-digit LCD display  three programming keys ...
  • Page 5 MAN-SD/-LD Installation:  Ensure that the piping is fully depressurised.  The digital manometer should be mounted just like a mechanical manometer.  With standard thread connection, sealing is achieved by means of a suitable gasket (flat-seal or seal-ring according to DIN 16258). ...

  • Page 6: Electrical Connection

    MAN-SD/-LD 7. Electrical Connection Attention! Incorrect wiring will lead to damage of the unit’s electronics. Connection for MAN-LD  Make sure that the supply wires are de-energized.  Plug in the system according to the connecting diagrams.  Power supply conductor (area of cross-section) min. 0.34 mm². Pin assignment Contact-No.

  • Page 7: Connection For Man-Sd

    MAN-SD/-LD Connection for MAN-SD Attention! Please ensure that you use a 9 V – alkali-manganese- block battery (IEC 6 LR 61).  Make sure that the supply wires are de-energized. (Only with option limit contact or analogue output)  Open the battery enclosure on the back-side of the unit and connect the 9V block battery with the connection plug.

  • Page 8: Function Keys

    MAN-SD/-LD 8. Function Keys For the selection of menu options, the following functions keys are available: for MAN-LD  next menu option  previous menu option  → P jump to the function for MAN-SD  next menu option  previous menu option 1 x press to switch-on 1 x press to switch-off...

  • Page 9: Adjustment

    MAN-SD/-LD 9. Adjustment Possible adjustments of the device: 1. zero point Prior to commissioning or at regular intervals, the zero point must be set in the pressureless state, even if the display shows "0". Drifting into the minus range cannot be ruled out despite the zero display. Instructions for zero point setting on inside battery cover 2.

  • Page 10: Control Functions

    MAN-SD/-LD 10. Control Functions 10.1 Control function for MAN-LD Unit with peak value memory MAN-LD1S…and unit with peak value memory + analogue output MAN-LD3S… 1xP = unit switched-on LCD-display 1234  resetting peak value memory 1xP = unit switched-off  ...
  • Page 11 MAN-SD/-LD Unit with switching output + peak value memory MAN-LD2S… 1234  resetting peak value memory   peak value memory last setting setting register max. value   register min. value peak value memory off  &   ...

  • Page 12: Control Function For Man-Sd

    MAN-SD/-LD 10.2 Control function for MAN-SD Unit with peak value memory MAN-SD1S... and unit with peak value memory + analogue output MAN-SD3S... 1xP = unit switched-on LCD-display 1234  resetting peak value memory 1xP = unit switched-off   peak value memory last setting (example) setting register max.
  • Page 13 MAN-SD/-LD Unit with switching output + peak value memory MAN-SD2S... 1xP = unit switched-on 1234  resetting peak value memory 1xP = unit switched-off   last setting peak value memory register max. value setting register min. value   peak value memory off select ...

  • Page 14: Maintenance

    MAN-SD/-LD 11. Maintenance In case, the medium to be measured is not polluted, the unit is maintenance-free. 11.1 Notice According to the Battery Law Old batteries do not belong in household waste. You can send the batteries back to us or an authorized address, free of charge. As consumer, you are legally obliged to return the used batteries.
  • Page 15 MAN-SD/-LD Wetted parts Sensor: ceramic (Al ) (MB ≤ 600 bar) stainless steel (1.4571) (MB > 600 bar) Seal: NBR (MB ≤ 600 bar) Process connection: G 1/4 G 1/2,1/4 NPT, 1/2 NPT outer thread, (range ≥ 1000 bar only G 1/2 or 1/2 NPT) stainless steel 1.4571 (other connections on request) Temperature of the medium:...
  • Page 16 MAN-SD/-LD MAN-SD Power supply: (block batterie, IEC 6 LR 01) Service life (based on a conversion rate of 5/s): Alkaline battery Alkaline battery Operation (Duracell ® MN1601, (Ultralife ® U9VL-J) Varta ® 4922) Continuous operation 2000 h 5200 h Switched-off 7300 h 17300 h Automatic switch-off times:...

  • Page 17: Order Codes

    MAN-SD/-LD 13. Order Codes (Order details: MAN-SD1S 5 AD 0) Power Mechanical Electrical Version Model Measuring range* supply connection* connection AD = -1...0 bar A1 = -1...+1,5 bar Standard 9 V Batterie MAN-SD1S... 0 = none A2 = -1...+3 bar A3 = -1...+5 bar A4 = -1...+9 bar A5 = -1...+15 bar...

  • Page 18: Dimensions

    MAN-SD/-LD 14. Dimensions MAN-SD Ø74 turnable display 24 AF G1/4A MAN-LD Ø74 turnable 24 AF G1/4A Seite 18 MAN-SD/-LD K11/0422...

  • Page 19: Eu Declaration Of Conformance

    MAN-SD/-LD 15. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Manometer model: MAN-xD… to which this declaration relates is in conformity with the standards noted below: EN 50581:2012 Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances Additional Model: MAN-LD...
  • Page 20 MAN-SD/-LD Also, the following EEC guidelines are fulfilled: 2014/30/EU EMC Directive 2014/68/EU Category I, Diagram 1, Vessel, Gases, Group 1 dangerous fluids 2011/65/EU RoHS (category 9) 2006/66/EC Directive Batteries and Accumulators Hofheim, 06 May 2022 H. Volz M. Wenzel General Manager Proxy Holder Seite 20 MAN-SD/-LD K11/0422...
