Summary of Contents for Kobold MAN-V

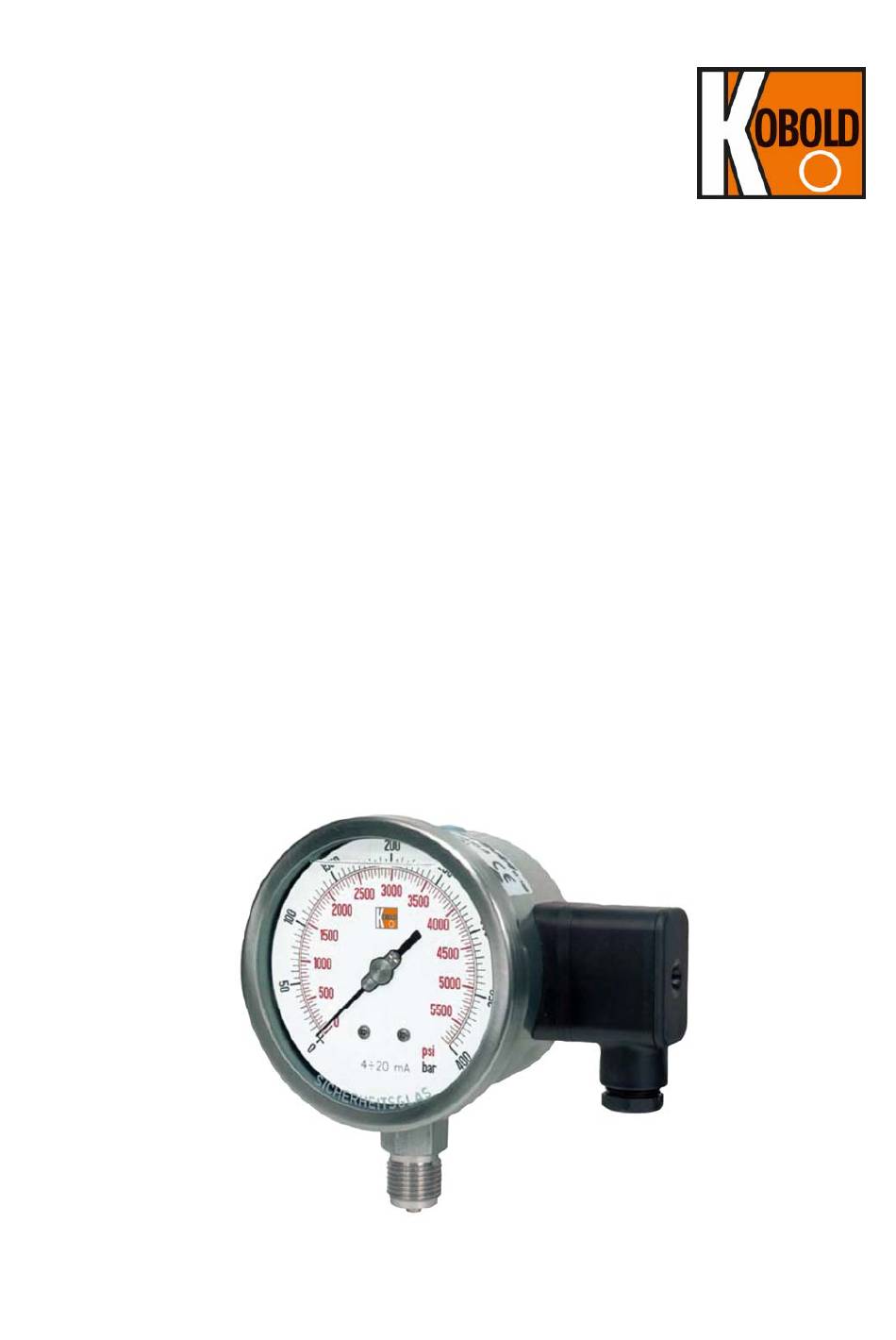

- Page 1 Operating Instructions Pressure Gauge with Built-in Pressure Transmitter Model: MAN-V...
-
Page 2: Table Of Contents
9. Recalibration and maintenance ..............9 10. Technical Information .................. 10 11. Order Codes ....................10 12. Dimensions ....................10 13. Disposal ...................... 10 14. EU Declaration of Conformance ..............11 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com... -
Page 3: Note
If you need an instruction manual that corresponds to the purchased product version, you can request it from us free of charge by email (info.de@kobold.com) in PDF format, specifying the relevant invoice number and serial number. If you wish, the operating instructions can also be sent to you by post in paper form. -
Page 4: Hazard Warnings
Warning taken. Danger Attention: Hot surface! Warning: Dangerous electrical voltage Warning Warning 2.3 As per PED 2014/68/EU MAN-V with overpressure value PS˃200 bar: Category I, module A page 4 MAN-V K01/0125... -
Page 5: Instrument Inspection
Scope of delivery: The standard delivery includes: Pressure Gauge with Built-in Pressure Transmitter model: MAN-V 4. Intended Use Flawless operation of the device can only be guaranteed if all aspects in these operating instructions are adhered to. The manufacturer assumes no responsibility for any damage resulting from improper use. -
Page 6: Operating Principle
6. Operating Principle Application The KOBOLD all stainless steel pressure transducers are suitable for harsh conditions resulting from high demands on pressure measurement in production plants of the chemical or other comparable industries. The use of high quality stainless steel for both measuring system and housing guarantees resistance against aggressive media and environment. -
Page 7: Mechanical Connection
16 bar, the filling cap M should be drilled. Disassemble the connector as in fig.1 and connect the cable as in fig.2. Reassemble the connector and fix it on the transmitter. Figure 1 – Exploded view of the connector MAN-V K01/0125 page 7... -
Page 8: Electrical Connection
The transmitter metal case should always be connected to the ground through the process connection thread to protect it from disturbances due to electromagnetic fields or electrostatic charges. If it is impossible, connect the transmitter to the ground through the connector and the cable screen. page 8 MAN-V K01/0125... -
Page 9: Recalibration And Maintenance
If the input pressure is at zero, adjust the output signal value to 4 mA together with the corresponding ZERO trimmer placed inside the instrument (figure 2). Reinstall the filling cap. Figure 1 Figure 2 In case a complete recalibration is necessary, please contact Kobold. MAN-V K01/0125 page 9... -
Page 10: Technical Information
MAN-V 10. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 11. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. -
Page 11: Eu Declaration Of Conformance
MAN-V 14. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Pressure Gauge with Built-in Pressure Transmitter model: MAN-V to which this declaration relates is in conformity with the following EU directives...
