4.2 Fixing with screws

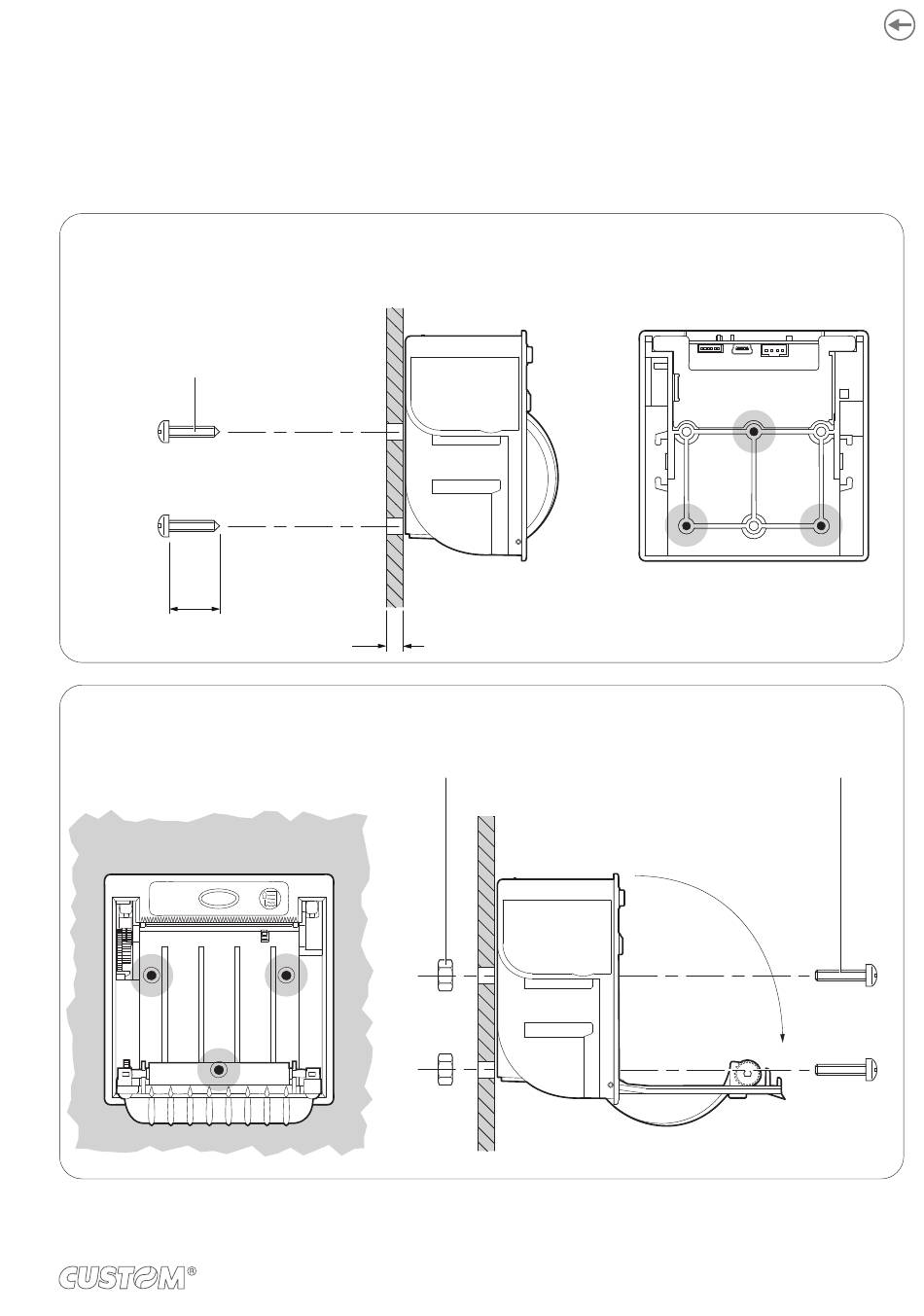

The device can be secured to the panel with 3 screws (not supplied) to be tighten on the rear side of the device (SCHEME
A) or from the paper compartment (SCHEME B).
All the dimensions shown in following igures are in millimetres.
SCHEME A
Fixing on the rear side
No.3 self-tapping screws for plastic d = 3
max
6+A
SCHEME B
Fixing from paper compartment
A
No.3 threaded nut
No.3 M3 screws
21
