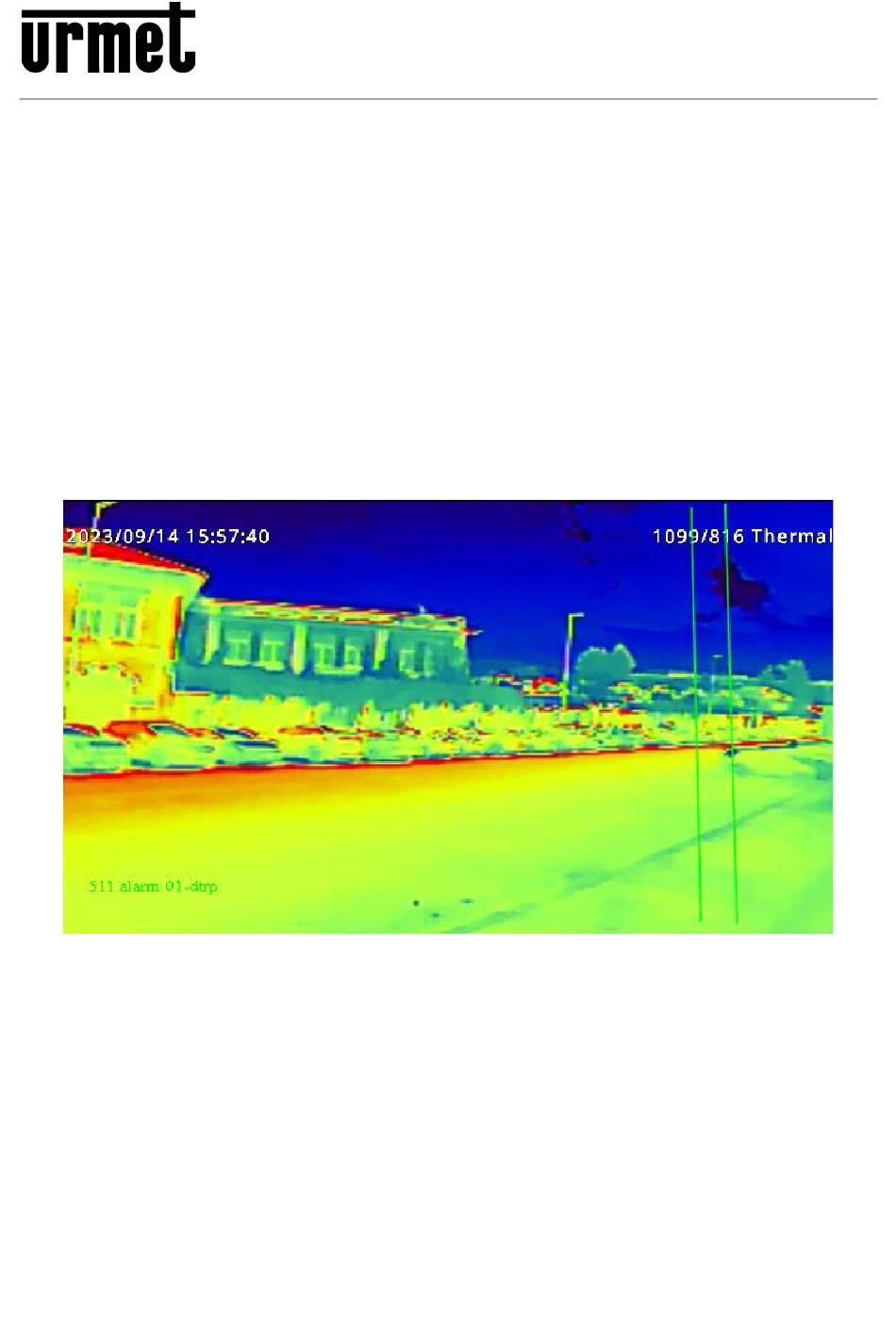

- Page 1 Mod. 1099 DS1099-200 Quick guide for thermal camera configuration...
- Page 3 Thank you for choosing our products. Please read the configuration guide carefully before using this product. This guide will provide the correct instructions for configuring the camera in its thermal part.
- Page 4 • Urmet reserves the right to update the contents of this guide according to changes in product functions and to periodically improve the products described herein. Updated information may be added at any time without prior notice. • Products may be changed according to new technology without prior notice. •...
-
Page 5: Table Of Contents
Contents PRECAUTIONS ............................... 6 CONFIGURATION ..............................9 ..............................9 MART SURVEILLANCE 2.1.1 Algorithm Configuration ..........................9 2.1.2 Create Rule ..............................10 2.1.3 Shield area ..............................12 ........................12 EMPERATURE MEASUREMENT FUNCTION 2.2.1 Basic configuration ............................12 2.2.2 Advanced parameters ............................ 15 2.2.3 Shield area .............................. -
Page 6: Precautions
1 Precautions The purpose of this Manual is to ensure that users can operate the products properly, thus avoiding danger or property damage. Please read this Manual carefully and keep it properly for future reference before using the products. The personnel responsible for the installation and routine maintenance of the equipment must have basic skills for safe operation. - Page 7 User-friendly power-off equipment shall be connected in series during the installation and wiring of （5） building. Ensure that the connection can bear the weight at least 4 times the weight of the product before installing （6） the equipment on a wall or ceiling. Do not directly touch the heat-dissipating parts of the integrated machine, to prevent burns.
- Page 8 （13） The interfaces of the equipment supporting USB, SD card or micro SD card interfaces do not support hot plugging, please power off the equipment before plugging or unplugging; otherwise, the equipment may be damaged. （14） The camera setting interface and menu contents of different models are not identical. Please refer to the actual interface.
-
Page 9: Configuration
2 Configuration Smart surveillance 2.1.1 Algorithm Configuration Enable: Enables or disables the intelligent analysis function of the current channel. Scene Algorithm: Channel 1: supports behaviour analysis (perimeter, tripwire, double tripwire), video diagnosis and audio anomaly detection. Channel 2: supports behaviour analysis (perimeter, tripwire, double tripwire) and fire detection. Note: enabling behaviour analysis on Channel 1, all Channel 2 algorithms will not be enabled;... -
Page 10: Create Rule
2.1.2 Create Rule Event settings Event Type: smoke and fire detection. Detection Mode: Designated Fire Point, Designated Smoke, Fire Point or Smoke, Fire Point and Smoke, Smoking Detection. Fire point detection sensitivity: sets the sensitivity of fire point detection. Smoke detection sensitivity: sets the smoke detection sensitivity. Display target: check whether to display the target to be detected. - Page 11 Linkage mode Users can set the mode of receiving a notification according to their needs after an alarm situation has been triggered, such Sound, Event Output, Record, Snapshot, etc. Common Link: can be selected White Light, flashing or steady, and Sound, 7 preset warning tones and 2 customised warning tones.
-
Page 12: Shield Area
2.1.3 Shield area Enabled: Enables or disables this function. Start to draw: press on the Start to draw button to draw the portion of the image to be screened and press twice to automatically connect the borders. Press on Line Clear to delete the drawn area. Press on Save to save the current configuration. - Page 13 In automatic mode, the device automatically switches the temperature measurement range based on the temperature measured at the target. This mode must be based on the current device. Temperature measurement information location display: based on the selection of maximum temperature, minimum temperature and average temperature, temperature measurement information is displayed around the rule or in the upper left corner of the image and is arranged in sequence.
- Page 14 Linkage mode Common Link: can be selected White Light, flashing or steady, and Sound, 7 preset warning tones and 2 customised warning tones. Event Output: select the output for alarm notification. Record: select the channel you wish to record at the time of the alarm. Snapshot: select the channel on which you wish to capture the snapshot at the time of the alarm.
-
Page 15: Advanced Parameters
2.2.2 Advanced parameters Configuration Mode: divided into normal mode and expert mode, defaulting to normal mode. Normal Mode: full screen temperature measurement, the temperature measurement area cannot be set independently. Expert Mode: 12 rules (points, lines and areas) can be set in expert mode, and specific alarm parameters can be set for each rule. - Page 16 Alarm rules [Regole dell’allarme]: in normal mode, the default alarm rule is that the high temperature is greater than and does not support any other setting. Expert mode has different rules depending on the type chosen. The rules for areas are the most comprehensive and include high temperature greater than, high temperature less than, low temperature greater than, low temperature less than, medium temperature greater than, medium temperature less than, temperature difference greater than and temperature difference less than.
-
Page 17: Shield Area
2.2.3 Shield area The shield area function allows errors during testing to be reduced as much as possible. Activating this function allows you to screen out abnormal points within the temperature measurement rules, which if left in the detection area could affect the calculation of the overall temperature within the temperature measurement rules. Enabled: enables or disables the area shielding function. -
Page 18: Example
Example Verifica della temperatura di una regola di linea per alte temperature: Step 1: select a rule and draw a rule line for the temperature measurement, as shown in the figure below. Step 2: configure alarm rules. Enable alarm (Event box) / warning temperature set to 26 degrees Celsius / generation of warning alarm after continuous exceeding 26 degrees Celsius for 2 seconds / warning temperature set to 28 degrees Celsius / generation of high temperature alarm after continuous exceeding 28 degrees Celsius for 3 seconds / when temperature falls below 25 degrees Celsius (28- 3 degrees Celsius) the high-temperature alarm is suppressed / detection cycle set to 60... - Page 19 DS1099-200 8 0 2 1 1 5 6 0 5 5 4 9 4...
