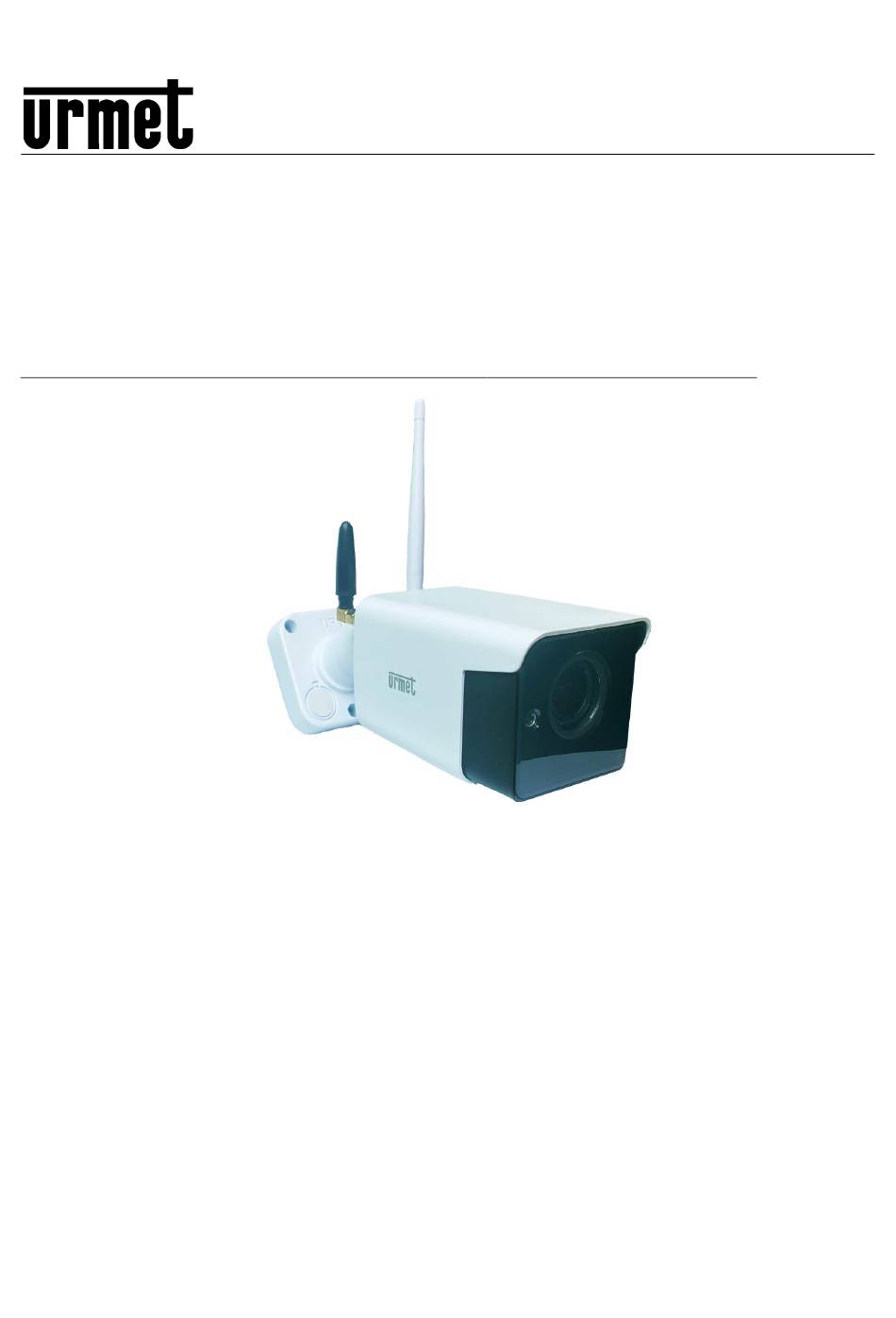

- Page 1 Mod. 1099 DS1099-183 WIFI 1080P IP PoE CAMERAS SERIES BULLET 1099/212B USER MANUAL...
-
Page 2: Table Of Contents
Opening the package ........................3 Warnings ............................4 SIMPLIFIED EU DECLARATION OF CONFORMITY .................. 5 INSTALLATION ............................. 5 1099/212B → WiFi Bullet Varifocal camera ................. 5 EASYTOOL ..............................6 ACTIVEX CONTROL CONFIGURATION ..................... 7 CONNECTION FROM OTHER WEB BROWSERS ..................8 IP CAMERA WEB PAGE CONFIGURATION .................... -
Page 3: Introduction
Care if you encounter problems during operations. The manual will be regularly updated without prior notice. PRODUCT DESCRIPTION URMET devices Ref. 1099/212B is a wireless/LTE IP camera which may be controlled entirely by connecting to the TCP/IP network. Technical specifications ➢... -
Page 4: Warnings
WARNINGS Power ➢ Make sure that the rating plate data corresponds to the power specifications before connecting the device to the mains. ➢ Arrange a suitable circuit breaker and fuse upstream of the devices. ➢ Disconnect power by means of the circuit breaker in the event of a failure and/or bad operation. ➢... -
Page 5: Simplified Eu Declaration Of Conformity
It leaves the IP camera configurations unchanged SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, URMET S.p.A. declares that the radio equipment types: camera 1099/212B, is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.urmet.com INSTALLATION 1099/212B →... -
Page 6: Easytool
To check the connection of the camera in 4G to the internet, connect a personal device such as a smartphone/tablet/PC to the Wi-Fi network of the camera (Wi-Fi SSID): “MIFI_...”, Wi-Fi password: 1234567890) or connect a PC via cable to the network connector of the camera. The integrated 4G/Wi-Fi router provides internet access to the camera and also to devices connected via Wi-Fi or cable to the camera. -
Page 7: Activex Control Configuration
Select “Login” to open the LIVE page. ACTIVEX CONTROL CONFIGURATION You will need to install the plug-ins when inspecting the IP camera using Internet Explorer for the first time. Set the browse protection level to install the plug-in. Select the menu [Tools/Internet Options/Security/Custom Level] and for "ActiveX controls and plug-ins"... -
Page 8: Connection From Other Web Browsers
The plug-in installation window will appear. Click on "Install" to complete the installation automatically. CONNECTION FROM OTHER WEB BROWSERS The camera web page can be accessed using a browser other than Internet Explorer, simply by keying in the IP address of the camera on the navigation bar of the browser. -
Page 9: Playback
Right-click (on Internet Explorer with ActiveX only) to select the stream to be displayed (Main Stream, Sub Stream) and to view the bitrate. Other Live interface buttons (on Internet Explorer with ActiveX only): : this is used to search and playback the video files recorded in the camera’s SD memory card (not included). -
Page 10: Remote Settings
Use the button to start playing back the video. To quickly position the playback time cursor on the time bar during the playback you can use the function: and push while the video is playing. REMOTE SETTINGS 7.3.1 DISPLAY OSD CONFIG Click on (Remote settings) to access the Live interface OSD Config (default). -
Page 11: Privacy Zone
➢ IRCUT Mode: 5 modes: GPIO Mode or Passive Mode : default mode. The camera switches from colors to black and white (turning on the IR LEDs) and vice versa based on the environment light detected by the external sensor integrated in the camera. -
Page 12: Network
Privacy zone setting: 1. Click to enable the privacy zone. 2. Select the Privacy area to be activated from the available four (Window 1, Window 2, Window 3, Window 4). 3. Point to the corner in the bottom right of each Privacy area and drag the mouse to change the size. Then position the Privacy area on the concerned area of the image. - Page 13 This page can be used to display and set the parameters related to the LAN of the camera: ➢ Type: DHCP, Static or PPoE. The default setting is Static. ➢ Command Port: This is the command port of the IP camera. Default: 6060 ➢...
- Page 14 ➢ Type: MainStream, SubStream. ➢ The user can set: Resolution, FPS, Audio (if the camera model has audio input), Bitrate control: CBR/VBR and the MainStream/SubStream Bitrate value. ➢ Resolution: MainStream MainStream 3MP (2304x1296), 1080P(1920x1080), 720P (1280×720), SubStream (704×576, 640×360). ➢ FPS: max 20 for the Mainstream and 25 for the Substream.
- Page 15 Description: • IP: to be replaced with the actual IP address of the device • The JPEG snapshot resolution can be modified in the following section: 【Advanced】→【Snapshot Settings 】 Click on 【Network】) →【Email】 to access the following interface. Server: it supports IP address or domain string Email Click on 【Network】) →【Email】...
- Page 16 Email service setting. By using this function in association with the Motion alarm function, the camera can sent the images acquired by email on the Internet by contacting the set email server (SMTP). SMTP Port: The default value is 25 (email service port). If Email: Disable/Enable.
- Page 17 Description • P2P: enable/disable the function. Default: enabled • UUID: this is the ID code that indefies univocally the devices and that has to be input in the software/app to open the connection to the camera. It is also available on the device as a QR code label. •...
-
Page 18: Alarm
7.3.3 ALARM AI SETTING Click on 【Alarm】→【AI Setting】 to access the following interface. Setting Procedure 1. Enable/disable person detection (Human) and/or motion detection (Motion). 2. While holding down the left button, drag the mouse to select the person and/or motion detection area. It is also possible to choose polygonal-shaped areas (triangle, pentagon, hexagon, etc.) as shown opposite the image. -
Page 19: Sound Alarm
SCHEDULE Click on 【Alarm】) →【Schedule】 to access the following interface. Schedule: in this page it is possible to program when the alarm must be activated (All Day, User_defined). When 【User_defined】is selected, holding the left button pressed, drag the mouse to select the programming periods. Single cells can be enabled by clicking on each of them. -
Page 20: Overlay Setting
OVERLAY SETTING Click on 【Alarm】→【Overlay Setting】 to access the following interface. Main Stream: if the boxes are ticked, this enables the display of video analysis lines on identified persons and/or areas enabled on the main video stream (Main Stream). Sub Stream: if the boxes are ticked, it enables the display of video analysis lines on identified persons and/or enabled areas on the secondary video stream (Sub Stream). -
Page 21: System
7.3.5 SYSTEM The System menu contains the following items: 【Date/Time】,【Users】, 【Info】 and 【Log】. The respective interfaces and descriptions are shown below. 1) DATE/TIME SETTING Click on 【System】→【Date/Time】 to access the following interface. PARAMETERS: the Device Name can be changed here. DATE/TIME: this user interface can be used to set the date and time, including System Time, NTP, Date Format and Time Format. - Page 22 ➢ NTP: Synchronise time with the NTP server on the Internet. Click on NTP to enable the NTP setting. Enter the NTP server address, select the time zone and click on Save. The system will automatically synchronise the time with the NTP server. ➢...
- Page 23 INFO Click on 【System】→【Info】 to access the following interface. When an SD memory card is plugged into the camera’s slot, it is possible: ➢ To read the information about total and available memory space ➢ To format the memory card by pushing the button ➢...
-
Page 24: Advanced
Control of the Zoom management parameters of the camera 7.3.6 ADVANCED The options 【Audio Setting】,【Time Capture】, 【Firmware Update】, 【Load Default】 and 【Maintain】 are present as shown in the following figure: Audio Setting Microphone and audio input sound settings. ➢ Audio Type: you can choose the type of audio. ➢... - Page 25 Press Save to save changes. Time Capture The following settings refer to periodic saving of images on local micro SD memory or FTP server. Firmware upgrade Click on 【Advanced】→【Firmware Update】 to access the following interface. In the “Firmware Update”, the user can click on "Scan" to select the update file; click on Upgrade to update the system automatically.
- Page 26 Select “Reset factory settings” and press the Save button to restore all default setting except for: network parameters (LAN and Wireless), user Password, NTP, DST, channel name. Select “Full Reset factory settings” and press the button Save to restore the factory default settings. Click on “Reboot”...
-
Page 27: Settings
7.3.7 4G SETTINGS Direct You are asked to open content in a new window. For details, refer to chapter 10. Manual Enter the value for the connection to the router 192.168.100.1. And you are asked to open the contents in a new window. For details, refer to chapter 10. LOCAL SETTINGS Click on “Local Setting”... -
Page 28: Output
OUTPUT Click on 【Logout】to close the web interface of the IP camera: VIEWING FROM APP With the camera already configured and connected in 4G, connect the smartphone to the Wi-Fi network of the camera (SSID Wi-Fi : “MIFI_...”, Wi-Fi password: 1234567890): Download the V-Stream app from the store and, if you do not have an Urmet Cloud or Yokis account, click on Sign Up to create a new account. -
Page 29: Configuration Of Other Devices
CONFIGURATION OF OTHER DEVICES With the 1099/212B camera already configured and connected in 4G, you can connect to the Wi-Fi network of the camera (Wi-Fi SSID: “MIFI_...”, Wi-Fi password: 1234567890) other Urmet Wi-Fi cameras (e.g. model: 1099/212B etc.). All cameras will be available via the Internet from the Urmet V-Stream app. -
Page 30: 10 Router 4G-Wi-Fi Settings
10 ROUTER 4G-WI-FI SETTINGS With the camera already configured and connected in 4G, connect a personal device such as smartphone / tablet / PC to the wif i network of the camera (wifi SSID: "MIFI _...", wifi password: 1234567890) or connect a PC via cable to the network connector the camera. -
Page 31: System Settings
System Status: this section shows the main parameters of the router's LAN network configuration Network Status: this section shows the main parameters of the status of the LTE network configuration assigned by the operator 10.1.2 SYSTEM SETTINGS Click on System settings to access the following interface Router: in this section it is possible to modify and set the LAN parameters of the LTE router. - Page 32 Firewall: in this section it is possible to insert rules for input and output data Port filtering: it allows you to filter (accept / reject) packets coming from / destined to a specific device Select “Apply” DS1099-183...
- Page 33 Port Mapping: Select “Enable” and “Apply” Port forwarding: DS1099-183...
- Page 34 Select “Enable” and “Apply” URL filtering: in this section you can selectively block URL UPnP: in this area it is possible to enable / disable the function to automatically open certain ports on the router. DMZ: this functionality of the router allows to divert, without checking its reliability, all traffic coming from the Internet to a specific network device, which will then manage and protect the traffic Update: In this section it is possible to update the FW of the camera LTE module DS1099-183...
- Page 35 DDNS: It refers to the Dynamic Domain Name Server, which allows you to reach the router through the internet in case of connection with a dynamic public IP address. Ping: in this section you can perform a ping test to a certain URL / IP address to check the reachability of a site / device Trace: in this section it is possible to make a trace route to an IP site / device DS1099-183...
- Page 36 Others: in this section it is possible to configure the NTP, SMTP, time zone, manage the PIN (Pin Management) and restore the camera to the factory parameters To manage the SIM PIN first disable the 4G connection and then press on PIN Management: We suggest that the PIN is always on Disable: DS1099-183...
-
Page 37: Quick Settings
To reset the 4G / Wi-Fi router to factory settings, press Reset Factory Settings: 10.1.3 QUICK SETTINGS Click on Quick Settings to access the following interface. Through this menu you can quickly change the basic settings of the 4G / Wi-Fi router (example: APN, Wi-Fi SSID, Wi-Fi password). -
Page 38: Statistics
10.1.5 STATISTICS Use of sim card data. 10.1.6 CONNECTED DEVICES In this section you can see all the devices connected to the camera, both wired and via Wi-Fi. DS1099-183... -
Page 39: Network Settings
10.1.7 NETWORK SETTINGS In this section it is possible to manage the WAN connection with the telephone operator Connection mode: in this section you can determine if you want to connect to the internet manually or automatically and if you want to allow the connection in case of roaming. Network selection: in this section you can choose whether to select the network operator automatically or manually APN: in this section it is possible to create an APN profile, the username and password fields normally are empty DS1099-183... - Page 40 LTE Band Lock in this section it is possible to disable the frequency bands to which you do not want to connect LTE PCI lock In this section it is possible to block the LTE modem by allowing the connection only with credentials DS1099-183...
-
Page 41: Wi-Fi Settings
10.1.8 WI-FI SETTINGS In this section it is possible to configure the parameters of the Wi-Fi network generated by the camera Wi-Fi SSID: in this section you can set the name of the selected network (SSID), the type of encryption, the password and the maximum number of users connected to the network. -
Page 42: 11 Technical Specifications
11 TECHNICAL SPECIFICATIONS GENERAL DATA 1099/212B Max absorption Typ: 180mA(D), 460mA(N). Peak 480mA (when IR CUT moves D/N). Power supply 12 Vdc / PoE Dimensions (L x H x D) 189*76*68mm Weight (g) 650g Type of housing Bullet Housing color... - Page 43 Dimensions DS1099-183...
-
Page 44: 12 Appendix
12 APPENDIX 12.1 FAQ ◆ IE does not load or install the plug-ins. Possible cause: The IE protection setting is too high. Solution: Set IE protection to minimum level. ◆ After updating, the user cannot inspect the IP camera using IE. Solution: Flush the IE cache.
